Group a collection of layers together and toggle their visibility as a group.

Use case

Group layers communicate to the user that layers are related and can be managed together.

In a land development project, you might group layers according to the phase of development.

How to use the sample

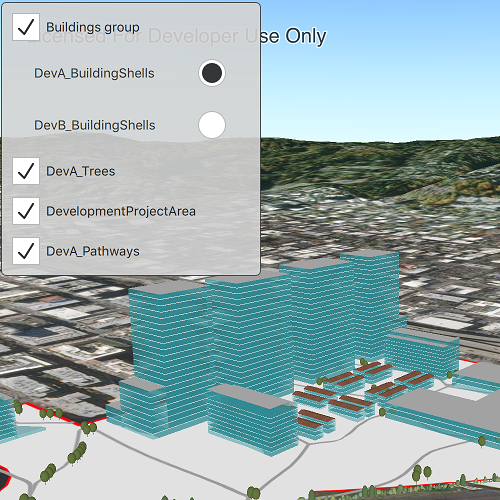

The layers in the map will be displayed in a table of contents. Toggle the checkbox next to a layer’s name to change its visibility. Turning a group layer’s visibility off will override the visibility of its child layers.

How it works

Create an empty GroupLayer.
Create a new layer and add it to the group layer’s layers collection.
Set the group layer’s GroupVisibilityMode to change its behavior:

GroupVisibilityMode::Independent allows each sublayer to change its visibility independently.
GroupVisibilityMode::Exclusive allows only one sublayer to be visible at a time.
GroupVisibilityMode::Inherited treats the group layer as if it is one merged layer.

Create a ListView and bind the model the the scene’s operational layer list model.
Create a delegate for the group layer and and another delegate for all other layers. The group layer delegate will have nested checkboxes.
Check that the layer is a group layer. If true, load the group layer delegate. If false, load the other delegate.
Each delegate will use the name and layerVisible roles exposed on the LayerListModel.
To toggle the visibility of the group, simply change the group layer’s visibility property.

Relevant API

GroupLayer

Additional information

The full extent of a group layer may change when child layers are added/removed. Group layers do not have a spatial reference, but the full extent will have the spatial reference of the first child layer.

Sample Code

GroupLayers.cpp

GroupLayers.h

GroupLayers.qml

main.cpp

main.qml

// [WriteFile Name=GroupLayers, Category=Layers]
// [Legal]
// Copyright 2019 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "GroupLayers.h"

// ArcGIS Maps SDK headers
#include "ArcGISSceneLayer.h"
#include "ArcGISTiledElevationSource.h"
#include "ElevationSourceListModel.h"
#include "Envelope.h"
#include "Error.h"
#include "FeatureLayer.h"
#include "GroupLayer.h"
#include "LayerListModel.h"
#include "MapTypes.h"
#include "Scene.h"
#include "SceneQuickView.h"
#include "ServiceFeatureTable.h"
#include "Surface.h"
#include "Viewpoint.h"

// Qt headers
#include <QFuture>

using namespace Esri::ArcGISRuntime;

GroupLayers::GroupLayers(QObject* parent /* = nullptr */):
  QObject(parent),
  m_scene(new Scene(BasemapStyle::ArcGISImageryStandard, this))
{
  // create a new elevation source from Terrain3D REST service
  ArcGISTiledElevationSource* elevationSource = new ArcGISTiledElevationSource(
        QUrl("https://elevation3d.arcgis.com/arcgis/rest/services/WorldElevation3D/Terrain3D/ImageServer"), this);

  // add the elevation source to the scene to display elevation
  m_scene->baseSurface()->elevationSources()->append(elevationSource);

  // Create layers and append to a group layer
  ArcGISSceneLayer* layer1 = new ArcGISSceneLayer(QUrl("https://tiles.arcgis.com/tiles/P3ePLMYs2RVChkJx/arcgis/rest/services/DevA_BuildingShells/SceneServer"), this);
  ArcGISSceneLayer* layer2 = new ArcGISSceneLayer(QUrl("https://tiles.arcgis.com/tiles/P3ePLMYs2RVChkJx/arcgis/rest/services/DevB_BuildingShells/SceneServer"), this);
  GroupLayer* groupLayer = new GroupLayer(QList<Layer*>{layer1, layer2}, this);
  groupLayer->setName("Buildings group");
  groupLayer->setVisibilityMode(GroupVisibilityMode::Exclusive);

  // Create additional layers
  ArcGISSceneLayer* layer3 = new ArcGISSceneLayer(QUrl("https://tiles.arcgis.com/tiles/P3ePLMYs2RVChkJx/arcgis/rest/services/DevA_Trees/SceneServer"), this);
  ServiceFeatureTable* ft1 = new ServiceFeatureTable(QUrl("https://services.arcgis.com/P3ePLMYs2RVChkJx/arcgis/rest/services/DevelopmentProjectArea/FeatureServer/0"), this);
  FeatureLayer* layer4 = new FeatureLayer(ft1, this);
  ServiceFeatureTable* ft2 = new ServiceFeatureTable(QUrl("https://services.arcgis.com/P3ePLMYs2RVChkJx/arcgis/rest/services/DevA_Pathways/FeatureServer/1"), this);
  FeatureLayer* layer5 = new FeatureLayer(ft2, this);

  // Add layers to the scene
  m_scene->operationalLayers()->append(groupLayer);
  m_scene->operationalLayers()->append(layer3);
  m_scene->operationalLayers()->append(layer4);
  m_scene->operationalLayers()->append(layer5);

  connect(m_scene, &Scene::doneLoading, this, [this](const Error& e)
  {
    if (!e.isEmpty())
      return;

    m_layerListModel = m_scene->operationalLayers();
    emit layerListModelChanged();
  });
}

GroupLayers::~GroupLayers() = default;

void GroupLayers::init()
{
  // Register classes for QML
  qmlRegisterType<SceneQuickView>("Esri.Samples", 1, 0, "SceneView");
  qmlRegisterType<GroupLayers>("Esri.Samples", 1, 0, "GroupLayersSample");
  qmlRegisterUncreatableType<LayerListModel>("Esri.Samples", 1, 0, "AbstractListModel", "AbstractListModel is uncreateable");
}

SceneQuickView* GroupLayers::sceneView() const
{
  return m_sceneView;
}

// Set the view (created in QML)
void GroupLayers::setSceneView(SceneQuickView* sceneView)
{
  if (!sceneView || sceneView == m_sceneView)
  {
    return;
  }

  m_sceneView = sceneView;
  m_sceneView->setArcGISScene(m_scene);

  // create initial viewpoint
  Geometry env = Geometry::fromJson(R"({"spatialReference":{
                                    "wkid":4326
                                    },
                                    "xmax":-122.67960721754773,
                                    "xmin":-122.68647066116789,
                                    "ymax":45.53584958588318,
                                    "ymin":45.531539857343745
                                    })");
  // zoom to viewpoint
  m_sceneView->setViewpointAsync(Viewpoint(env.extent()));

  emit sceneViewChanged();
}

LayerListModel* GroupLayers::getGroupLayerListModel(int layerId)
{
  if (!m_scene)
    return nullptr;

  GroupLayer* groupLayer = static_cast<GroupLayer*>(m_scene->operationalLayers()->at(layerId));

  if (groupLayer)
    return groupLayer->layers();

  return nullptr;
}

// [WriteFile Name=GroupLayers, Category=Layers]
// [Legal]
// Copyright 2019 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef GROUPLAYERS_H
#define GROUPLAYERS_H

// Qt headers
#include <QObject>

namespace Esri::ArcGISRuntime
{
class Scene;
class SceneQuickView;
class LayerListModel;
}

class QAbstractListModel;

Q_MOC_INCLUDE("SceneQuickView.h")
Q_MOC_INCLUDE("LayerListModel.h")

class GroupLayers : public QObject
{
  Q_OBJECT

  Q_PROPERTY(Esri::ArcGISRuntime::SceneQuickView* sceneView READ sceneView WRITE setSceneView NOTIFY sceneViewChanged)
  Q_PROPERTY(Esri::ArcGISRuntime::LayerListModel* layerListModel MEMBER m_layerListModel NOTIFY layerListModelChanged)

public:
  explicit GroupLayers(QObject* parent = nullptr);
  ~GroupLayers();

  static void init();

signals:
  void sceneViewChanged();
  void layerListModelChanged();

public:
  Q_INVOKABLE Esri::ArcGISRuntime::LayerListModel* getGroupLayerListModel(int layerId);

private:
  Esri::ArcGISRuntime::SceneQuickView* sceneView() const;
  void setSceneView(Esri::ArcGISRuntime::SceneQuickView* sceneView);

  Esri::ArcGISRuntime::Scene* m_scene = nullptr;
  Esri::ArcGISRuntime::SceneQuickView* m_sceneView = nullptr;
  Esri::ArcGISRuntime::LayerListModel* m_layerListModel = nullptr;
};

#endif // GROUPLAYERS_H

// [WriteFile Name=GroupLayers, Category=Layers]
// [Legal]
// Copyright 2019 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
import Esri.Samples

Item {

    SceneView {
        id: view
        anchors.fill: parent

        Component.onCompleted: {
            // Set the focus on SceneView to initially enable keyboard navigation
            forceActiveFocus();
        }
    }

    // Declare the C++ instance which creates the scene etc. and supply the view
    GroupLayersSample {
        id: sampleModel
        sceneView: view
    }

    // Create a window to display the layers
    Rectangle {
        id: layerVisibilityRect
        anchors {
            fill: layerVisibilityListView
            margins: -5
        }
        color: "lightgrey"
        border.color: "#4D4D4D"
        opacity: 0.9
        radius: 5
    }

    // Create a list view to display the items
    ListView {
        id: layerVisibilityListView
        anchors {
            left: parent.left
            top: parent.top
            margins: 10
        }
        width: 250
        height: childrenRect.height
        clip: true

        // Assign the model to the list model of layers
        model: sampleModel.layerListModel

        // Assign the delegate to the delegate created above
        delegate: Item {
            height: childrenRect.height

            // select the component based on the layer type
            // GroupLayer is LayerType int value of 22. See API doc for more details:
            // https://developers.arcgis.com/qt/layers/
            Loader {
                sourceComponent: layerType === 22 ?
                                     groupLayerDelegate : layerDelegate
            }

            // Delegate for GroupLayers - Contains secondary repeater for sublayers
            Component {
                id: groupLayerDelegate
                Column {
                    CheckBox {
                        id: parentBox
                        text: name
                        checked: layerVisible
                        onCheckedChanged: layerVisible = checked
                    }

                    Repeater {
                        model: sampleModel.getGroupLayerListModel(layerVisibilityListView.currentIndex)
                        delegate: RadioDelegate {
                            checked: index === 0
                            text: name
                            leftPadding: indicator.width
                            width: layerVisibilityRect.width - leftPadding
                            onCheckedChanged: layerVisible = checked
                        }
                    }
                }
            }

            // Delegate for all other layers - standard Checkbox
            Component {
                id: layerDelegate
                CheckBox {
                    text: name
                    checked: layerVisible
                    onCheckedChanged: layerVisible = checked;
                }
            }
        }
    }
}

// [Legal]
// Copyright 2019 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// sample headers
#include "GroupLayers.h"

// ArcGIS Maps SDK headers
#include "ArcGISRuntimeEnvironment.h"

// Qt headers
#include <QDir>
#include <QGuiApplication>
#include <QQmlApplicationEngine>
#include <QSurfaceFormat>

// Platform specific headers
#ifdef Q_OS_WIN
#include <Windows.h>
#endif

#define STRINGIZE(x) #x
#define QUOTE(x) STRINGIZE(x)

int main(int argc, char *argv[])
{
  Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setUseLegacyAuthentication(false);
#if defined(Q_OS_LINUX) && !defined(Q_OS_ANDROID)
  // Linux requires 3.2 OpenGL Context
  // in order to instance 3D symbols
  QSurfaceFormat fmt = QSurfaceFormat::defaultFormat();
  fmt.setVersion(3, 2);
  QSurfaceFormat::setDefaultFormat(fmt);
#endif

  QGuiApplication app(argc, argv);
  app.setApplicationName(QString("GroupLayers"));

  // Use of ArcGIS location services, such as basemap styles, geocoding, and routing services,
  // requires an access token. For more information see
  // https://links.esri.com/arcgis-runtime-security-auth.

  // The following methods grant an access token:

  // 1. User authentication: Grants a temporary access token associated with a user's ArcGIS account.
  // To generate a token, a user logs in to the app with an ArcGIS account that is part of an
  // organization in ArcGIS Online or ArcGIS Enterprise.

  // 2. API key authentication: Get a long-lived access token that gives your application access to
  // ArcGIS location services. Go to the tutorial at https://links.esri.com/create-an-api-key.
  // Copy the API Key access token.

  const QString accessToken = QString("");

  if (accessToken.isEmpty())
  {
      qWarning() << "Use of ArcGIS location services, such as the basemap styles service, requires" <<
                    "you to authenticate with an ArcGIS account or set the API Key property.";
  }
  else
  {
      Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setApiKey(accessToken);
  }

  // Initialize the sample
  GroupLayers::init();

  QString arcGISRuntimeImportPath = QUOTE(ARCGIS_RUNTIME_IMPORT_PATH);

#if defined(LINUX_PLATFORM_REPLACEMENT)
  // on some linux platforms the string 'linux' is replaced with 1
  // fix the replacement paths which were created
  QString replaceString = QUOTE(LINUX_PLATFORM_REPLACEMENT);
  arcGISRuntimeImportPath = arcGISRuntimeImportPath.replace(replaceString, "linux", Qt::CaseSensitive);
#endif

  // Initialize application view
  QQmlApplicationEngine engine;
  // Add the import Path
  engine.addImportPath(QDir(QCoreApplication::applicationDirPath()).filePath("qml"));
  // Add the Runtime and Extras path
  engine.addImportPath(arcGISRuntimeImportPath);

  // Set the source
  engine.load(QUrl("qrc:/Samples/Layers/GroupLayers/main.qml"));

  return app.exec();
}

// Copyright 2019 ESRI
//
// All rights reserved under the copyright laws of the United States
// and applicable international laws, treaties, and conventions.
//
// You may freely redistribute and use this sample code, with or
// without modification, provided you include the original copyright
// notice and use restrictions.
//
// See the Sample code usage restrictions document for further information.
//

import QtQuick.Controls
import Esri.Samples

ApplicationWindow {
    visible: true
    width: 800
    height: 600

    GroupLayers {
        anchors.fill: parent
    }
}
