Create and save KML file

// [WriteFile Name=CreateAndSaveKmlFile, Category=Layers]
// [Legal]
// Copyright 2019 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "CreateAndSaveKmlFile.h"

// ArcGIS Maps SDK headers
#include "Envelope.h"
#include "Error.h"
#include "KmlDataset.h"
#include "KmlDocument.h"
#include "KmlGeometry.h"
#include "KmlIcon.h"
#include "KmlIconStyle.h"
#include "KmlLayer.h"
#include "KmlLineStyle.h"
#include "KmlNodeListModel.h"
#include "KmlPlacemark.h"
#include "KmlPolygonStyle.h"
#include "KmlStyle.h"
#include "LayerListModel.h"
#include "Map.h"
#include "MapQuickView.h"
#include "MapTypes.h"
#include "PolygonBuilder.h"
#include "PolylineBuilder.h"
#include "SpatialReference.h"
#include "Viewpoint.h"

// Qt headers
#include <QFuture>

using namespace Esri::ArcGISRuntime;

CreateAndSaveKmlFile::CreateAndSaveKmlFile(QObject* parent /* = nullptr */):
  QObject(parent),
  m_map(new Map(BasemapStyle::ArcGISDarkGray, this)),
  m_kmlDocument(new KmlDocument(this)),
  m_point(createPoint()),
  m_polyline(createPolyline()),
  m_polygon(createPolygon()),
  m_kmlStyleWithPointStyle(createKmlStyleWithPointStyle()),
  m_kmlStyleWithLineStyle(createKmlStyleWithLineStyle()),
  m_kmlStyleWithPolygonStyle(createKmlStyleWithPolygonStyle())
{
  // set initial viewpoint
  m_map->setInitialViewpoint(Viewpoint(createEnvelope()));

  connect(m_map, &Map::doneLoading, this, [this](const Error& e)
  {
    if (!e.isEmpty())
      return;

    m_kmlDataset = new KmlDataset(m_kmlDocument, this);
    m_kmlLayer = new KmlLayer(m_kmlDataset, this);
    addGraphics();
  });

  connect(m_kmlDocument, &KmlDocument::errorOccurred, this, [](const Error& e)
  {
    if (!e.isEmpty())
      qDebug() << QString("Error: %1 - %2").arg(e.message(), e.additionalMessage());
  });
}

CreateAndSaveKmlFile::~CreateAndSaveKmlFile() = default;

void CreateAndSaveKmlFile::init()
{
  // Register the map view for QML
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<CreateAndSaveKmlFile>("Esri.Samples", 1, 0, "CreateAndSaveKmlFileSample");
}

MapQuickView* CreateAndSaveKmlFile::mapView() const
{
  return m_mapView;
}

// Set the view (created in QML)
void CreateAndSaveKmlFile::setMapView(MapQuickView* mapView)
{
  if (!mapView || mapView == m_mapView)
    return;

  m_mapView = mapView;
  m_mapView->setMap(m_map);

  emit mapViewChanged();
}

QString CreateAndSaveKmlFile::kmlFilePath() const
{
  return m_kmlFilePath;
}

Geometry CreateAndSaveKmlFile::createPoint() const
{
  constexpr double x = -117.195800;
  constexpr double y = 34.056295;
  const SpatialReference spatialRef(4326);

  return Point(x, y, spatialRef);
}

Geometry CreateAndSaveKmlFile::createPolyline() const
{
  const SpatialReference spatialRef(4326);
  PolylineBuilder polylineBuilder(spatialRef);

  polylineBuilder.addPoint(-119.992, 41.989);
  polylineBuilder.addPoint(-119.994, 38.994);
  polylineBuilder.addPoint(-114.620, 35.0);

  return polylineBuilder.toGeometry();
}

Geometry CreateAndSaveKmlFile::createPolygon() const
{
  const SpatialReference spatialRef(4326);
  PolygonBuilder polygonBuilder(spatialRef);

  polygonBuilder.addPoint(-109.048, 40.998);
  polygonBuilder.addPoint(-102.047, 40.998);
  polygonBuilder.addPoint(-102.037, 36.989);
  polygonBuilder.addPoint(-109.048, 36.998);

  return polygonBuilder.toGeometry();
}

Geometry CreateAndSaveKmlFile::createEnvelope() const
{
  constexpr double xMin = -123.0;
  constexpr double yMin = 33.5;
  constexpr double xMax = -101.0;
  constexpr double yMax = 42.0;

  const SpatialReference spatialRef(4326);

  return Envelope(xMin, yMin, xMax, yMax, spatialRef);
}

KmlStyle* CreateAndSaveKmlFile::createKmlStyleWithPointStyle()
{
  // Create Icon Style
  KmlIcon* icon = new KmlIcon(QUrl("https://static.arcgis.com/images/Symbols/Shapes/BlueStarLargeB.png"), this);
  KmlIconStyle* iconStyle = new KmlIconStyle(icon, 1.0, this);

  // Create KmlStyle
  KmlStyle* kmlStyle = new KmlStyle(this);
  kmlStyle->setIconStyle(iconStyle);

  return kmlStyle;
}

KmlStyle* CreateAndSaveKmlFile::createKmlStyleWithLineStyle()
{
  // Create Line Style
  KmlLineStyle* lineStyle = new KmlLineStyle(QColor(Qt::red), 2, this);

  // Create KmlStyle
  KmlStyle* kmlStyle = new KmlStyle(this);
  kmlStyle->setLineStyle(lineStyle);

  return kmlStyle;
}

KmlStyle* CreateAndSaveKmlFile::createKmlStyleWithPolygonStyle()
{
  // Create Polygon Style
  KmlPolygonStyle* polygonStyle = new KmlPolygonStyle(QColor(Qt::yellow), this);

  // Create KmlStyle
  KmlStyle* kmlStyle = new KmlStyle(this);
  kmlStyle->setPolygonStyle(polygonStyle);

  return kmlStyle;
}

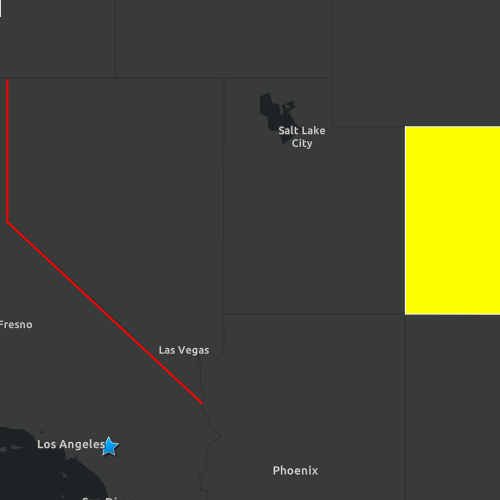

void CreateAndSaveKmlFile::addGraphics()
{
  addToKmlDocument(m_point, m_kmlStyleWithPointStyle);
  addToKmlDocument(m_polyline, m_kmlStyleWithLineStyle);
  addToKmlDocument(m_polygon, m_kmlStyleWithPolygonStyle);

  m_mapView->map()->operationalLayers()->append(m_kmlLayer);
}

void CreateAndSaveKmlFile::addToKmlDocument(const Geometry& geometry, KmlStyle* kmlStyle)
{
  const KmlGeometry kmlGeometry = KmlGeometry(geometry, KmlAltitudeMode::ClampToGround);
  KmlPlacemark* placemark = new KmlPlacemark(kmlGeometry, this);
  placemark->setStyle(kmlStyle);
  m_kmlDocument->childNodesListModel()->append(placemark);
}

void CreateAndSaveKmlFile::saveKml()
{
  m_kmlFilePath = QString{m_tempDir.path() + "/KmlSampleFile%1.kmz"}.arg(QDateTime::currentSecsSinceEpoch() % 1000);
  emit kmlFilePathChanged();

  m_busy = true;
  emit busyChanged();

  // Write the KML document to the chosen path.
  m_kmlDocument->saveAsAsync(m_kmlFilePath).then(this, [this]()
  {
    m_busy = false;
    emit busyChanged();
    emit kmlSaveCompleted();
  });
}

// [WriteFile Name=CreateAndSaveKmlFile, Category=Layers]
// [Legal]
// Copyright 2019 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef CREATEANDSAVEKMLFILE_H
#define CREATEANDSAVEKMLFILE_H

// ArcGIS Maps SDK headers
#include "Geometry.h"
#include "Point.h"
#include "Polygon.h"
#include "Polyline.h"

// Qt headers
#include <QObject>
#include <QTemporaryDir>
#include <QUrl>

namespace Esri::ArcGISRuntime
{
class Map;
class MapQuickView;
class KmlDocument;
class KmlDataset;
class KmlLayer;
class KmlStyle;
}

Q_MOC_INCLUDE("MapQuickView.h")

class CreateAndSaveKmlFile : public QObject
{
  Q_OBJECT

  Q_PROPERTY(Esri::ArcGISRuntime::MapQuickView* mapView READ mapView WRITE setMapView NOTIFY mapViewChanged)
  Q_PROPERTY(bool busy MEMBER m_busy NOTIFY busyChanged)
  Q_PROPERTY(QString kmlFilePath READ kmlFilePath NOTIFY kmlFilePathChanged)

public:
  explicit CreateAndSaveKmlFile(QObject* parent = nullptr);
  ~CreateAndSaveKmlFile();

  static void init();

  Q_INVOKABLE void saveKml();

signals:
  void mapViewChanged();
  void busyChanged();
  void kmlSaveCompleted();
  void kmlFilePathChanged();

private:
  Esri::ArcGISRuntime::MapQuickView* mapView() const;
  void setMapView(Esri::ArcGISRuntime::MapQuickView* mapView);
  QString kmlFilePath() const;

  Esri::ArcGISRuntime::Map* m_map = nullptr;
  Esri::ArcGISRuntime::MapQuickView* m_mapView = nullptr;
  Esri::ArcGISRuntime::KmlDocument* m_kmlDocument = nullptr;
  Esri::ArcGISRuntime::KmlDataset* m_kmlDataset = nullptr;
  Esri::ArcGISRuntime::KmlLayer* m_kmlLayer = nullptr;
  Esri::ArcGISRuntime::Point m_point;
  Esri::ArcGISRuntime::Polyline m_polyline;
  Esri::ArcGISRuntime::Polygon m_polygon;
  Esri::ArcGISRuntime::KmlStyle* m_kmlStyleWithPointStyle = nullptr;
  Esri::ArcGISRuntime::KmlStyle* m_kmlStyleWithLineStyle = nullptr;
  Esri::ArcGISRuntime::KmlStyle* m_kmlStyleWithPolygonStyle = nullptr;

  bool m_busy = false;

  Esri::ArcGISRuntime::Geometry createPoint() const;
  Esri::ArcGISRuntime::Geometry createPolyline() const;
  Esri::ArcGISRuntime::Geometry createPolygon() const;
  Esri::ArcGISRuntime::Geometry createEnvelope() const;
  Esri::ArcGISRuntime::KmlStyle* createKmlStyleWithPointStyle();
  Esri::ArcGISRuntime::KmlStyle* createKmlStyleWithLineStyle();
  Esri::ArcGISRuntime::KmlStyle* createKmlStyleWithPolygonStyle();

  QTemporaryDir m_tempDir;
  QString m_kmlFilePath;

  void addGraphics();
  void addToKmlDocument(const Esri::ArcGISRuntime::Geometry& geometry, Esri::ArcGISRuntime::KmlStyle* kmlStyle);
};

#endif // CREATEANDSAVEKMLFILE_H

// [WriteFile Name=CreateAndSaveKmlFile, Category=Layers]
// [Legal]
// Copyright 2019 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
import QtQuick.Dialogs
import Esri.Samples

Item {

    // add a mapView component
    MapView {
        id: view
        anchors.fill: parent

        Component.onCompleted: {
            // Set the focus on MapView to initially enable keyboard navigation
            forceActiveFocus();
        }
    }

    // Declare the C++ instance which creates the map etc. and supply the view
    CreateAndSaveKmlFileSample {
        id: model
        mapView: view

        onKmlSaveCompleted: saveCompleteDialog.open();
    }

    Button {
        anchors{
            left: parent.left
            top: parent.top
            margins: 3
        }
        text: qsTr("Save kmz file")

        enabled: model.busy === false

        onClicked: {
            model.saveKml();
        }
    }

    BusyIndicator {
        anchors.centerIn: parent
        visible: model.busy
    }

    Dialog {
        id: saveCompleteDialog
        anchors.centerIn: parent
        width: parent.width * .8
        standardButtons: Dialog.Ok
        title: "Item saved to temporary location:"
        Label {
            text: model.kmlFilePath
            wrapMode: Text.Wrap
            width: parent.width
        }
    }
}

// [Legal]
// Copyright 2019 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// sample headers
#include "CreateAndSaveKmlFile.h"

// ArcGIS Maps SDK headers
#include "ArcGISRuntimeEnvironment.h"

// Qt headers
#include <QDir>
#include <QGuiApplication>
#include <QQmlApplicationEngine>

// Platform specific headers
#ifdef Q_OS_WIN
#include <Windows.h>
#endif

#define STRINGIZE(x) #x
#define QUOTE(x) STRINGIZE(x)

int main(int argc, char *argv[])
{
  Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setUseLegacyAuthentication(false);
  QGuiApplication app(argc, argv);
  app.setApplicationName(QString("CreateAndSaveKmlFile"));

  // Use of ArcGIS location services, such as basemap styles, geocoding, and routing services,
  // requires an access token. For more information see
  // https://links.esri.com/arcgis-runtime-security-auth.

  // The following methods grant an access token:

  // 1. User authentication: Grants a temporary access token associated with a user's ArcGIS account.
  // To generate a token, a user logs in to the app with an ArcGIS account that is part of an
  // organization in ArcGIS Online or ArcGIS Enterprise.

  // 2. API key authentication: Get a long-lived access token that gives your application access to
  // ArcGIS location services. Go to the tutorial at https://links.esri.com/create-an-api-key.
  // Copy the API Key access token.

  const QString accessToken = QString("");

  if (accessToken.isEmpty())
  {
      qWarning() << "Use of ArcGIS location services, such as the basemap styles service, requires" <<
                    "you to authenticate with an ArcGIS account or set the API Key property.";
  }
  else
  {
      Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setApiKey(accessToken);
  }

  // Initialize the sample
  CreateAndSaveKmlFile::init();

  QString arcGISRuntimeImportPath = QUOTE(ARCGIS_RUNTIME_IMPORT_PATH);

#if defined(LINUX_PLATFORM_REPLACEMENT)
  // on some linux platforms the string 'linux' is replaced with 1
  // fix the replacement paths which were created
  QString replaceString = QUOTE(LINUX_PLATFORM_REPLACEMENT);
  arcGISRuntimeImportPath = arcGISRuntimeImportPath.replace(replaceString, "linux", Qt::CaseSensitive);
#endif

  // Initialize application view
  QQmlApplicationEngine engine;
  // Add the import Path
  engine.addImportPath(QDir(QCoreApplication::applicationDirPath()).filePath("qml"));
  // Add the Runtime and Extras path
  engine.addImportPath(arcGISRuntimeImportPath);

  // Set the source
  engine.load(QUrl("qrc:/Samples/Layers/CreateAndSaveKmlFile/main.qml"));

  return app.exec();
}

// Copyright 2019 ESRI
//
// All rights reserved under the copyright laws of the United States
// and applicable international laws, treaties, and conventions.
//
// You may freely redistribute and use this sample code, with or
// without modification, provided you include the original copyright
// notice and use restrictions.
//
// See the Sample code usage restrictions document for further information.
//

import QtQuick.Controls
import Esri.Samples

ApplicationWindow {
    visible: true
    width: 800
    height: 600

    CreateAndSaveKmlFile {
        anchors.fill: parent
    }
}
