Export vector tiles

// [WriteFile Name=ExportVectorTiles, Category=Layers]
// [Legal]
// Copyright 2022 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "ExportVectorTiles.h"

// ArcGIS Maps SDK headers
#include "ArcGISVectorTiledLayer.h"
#include "Basemap.h"
#include "Envelope.h"
#include "Error.h"
#include "ExportVectorTilesJob.h"
#include "ExportVectorTilesParameters.h"
#include "ExportVectorTilesResult.h"
#include "ExportVectorTilesTask.h"
#include "GeometryEngine.h"
#include "Graphic.h"
#include "GraphicListModel.h"
#include "GraphicsOverlay.h"
#include "GraphicsOverlayListModel.h"
#include "LayerListModel.h"
#include "Map.h"
#include "MapQuickView.h"
#include "MapTypes.h"
#include "Point.h"
#include "ServiceTypes.h"
#include "SimpleLineSymbol.h"
#include "SpatialReference.h"
#include "SymbolTypes.h"
#include "Viewpoint.h"

// Qt headers
#include <QFuture>
#include <QTemporaryDir>
#include <QUuid>

using namespace Esri::ArcGISRuntime;

ExportVectorTiles::ExportVectorTiles(QObject* parent /* = nullptr */):
  QObject(parent),
  m_map(new Map(BasemapStyle::ArcGISStreetsNight, this))
{
}

ExportVectorTiles::~ExportVectorTiles() = default;

void ExportVectorTiles::init()
{
  // Register the map view for QML
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<ExportVectorTiles>("Esri.Samples", 1, 0, "ExportVectorTilesSample");
}

MapQuickView* ExportVectorTiles::mapView() const
{
  return m_mapView;
}

// Set the view (created in QML)
void ExportVectorTiles::setMapView(MapQuickView* mapView)
{
  if (!mapView || mapView == m_mapView)
    return;

  m_mapView = mapView;
  m_mapView->setMap(m_map);
  m_mapView->setViewpointAsync(Viewpoint(34.049, -117.181, 1e4));

  m_graphicsOverlay = new GraphicsOverlay(this);
  m_mapView->graphicsOverlays()->append(m_graphicsOverlay);

  // Create the graphic that will be used to show the export extent
  m_exportAreaGraphic = new Graphic(this);
  m_exportAreaGraphic->setSymbol(new SimpleLineSymbol(SimpleLineSymbolStyle::Solid, Qt::green, 3, this));

  m_graphicsOverlay->graphics()->append(m_exportAreaGraphic);

  emit mapViewChanged();
}

void ExportVectorTiles::startExport(double xSW, double ySW, double xNE, double yNE)
{
  if (!m_map->basemap() || m_map->basemap()->baseLayers()->isEmpty() || m_map->basemap()->baseLayers()->first()->layerType() != LayerType::ArcGISVectorTiledLayer)
    return;

  // Get the first layer of the basemap baselayers as a vector tiled layer for export
  ArcGISVectorTiledLayer* vectorTiledLayer = static_cast<ArcGISVectorTiledLayer*>(m_map->basemap()->baseLayers()->first());
  ExportVectorTilesTask* exportTask = new ExportVectorTilesTask(vectorTiledLayer->url(), this);

  // Create an envelope from the QML rectangle corners
  const Point corner1 = m_mapView->screenToLocation(xSW, ySW);
  const Point corner2 = m_mapView->screenToLocation(xNE, yNE);
  const Envelope extent = Envelope(corner1, corner2);
  // Normalize the central meridian to export tiles if the export area crosses the antemeridian
  const Geometry exportArea = GeometryEngine::normalizeCentralMeridian(GeometryEngine::project(extent, vectorTiledLayer->spatialReference()));

  m_exportAreaGraphic->setGeometry(exportArea);

  // Instantiate export parameters to create the export job with
  exportTask->createDefaultExportVectorTilesParametersAsync(exportArea, m_mapView->mapScale() * 0.1)
      .then(this, [this, exportTask](ExportVectorTilesParameters exportParameters)
  {
    // Using the reduced fonts service will reduce the download size of a vtpk by around 80 Mb
    // It is useful for taking the basemap offline but not recommended if you plan to later upload the vtpk
    exportParameters.setEsriVectorTilesDownloadOption(EsriVectorTilesDownloadOption::UseReducedFontsService);

    // Create a path to store the vector tile package, the file cannot already exist
    const QString vectorTileCachePath = m_tempDir.path() + QString("/vectorTiles%1.vtpk").arg(QDateTime::currentMSecsSinceEpoch());
    // Create a path to an empty directory to store the styling resources (in this case, the night mode version of the layer)
    const QString itemResourcePath = m_tempDir.path() + QString("/itemResources%1").arg(QDateTime::currentMSecsSinceEpoch());

    // Create a job that will download the vector tiles to the given paths
    m_exportJob = exportTask->exportVectorTiles(exportParameters, vectorTileCachePath, itemResourcePath);

    connect(m_exportJob, &ExportVectorTilesJob::jobDone, this, [this]()
    {
      if (m_exportJob->error().isEmpty())
      {
        VectorTileCache* vectorTileCache = m_exportJob->result()->vectorTileCache();
        ItemResourceCache* itemResourceCache = m_exportJob->result()->itemResourceCache();

        // Create a vector tiled layer when the download is completed
        ArcGISVectorTiledLayer* exportedLayer = new ArcGISVectorTiledLayer(vectorTileCache, itemResourceCache, this);
        m_map->setBasemap(new Basemap(exportedLayer, this));
        m_isUsingOfflineBasemap = true;
        m_exportJob->disconnect();
      }
    });

    connect(m_exportJob, &Job::progressChanged, this, [this]()
    {
      m_exportProgress = m_exportJob->progress();
      emit exportProgressChanged();
    });

    connect(m_exportJob, &Job::statusChanged, this, [this](JobStatus s)
    {
      m_jobStatus = static_cast<int>(s);
      emit jobStatusChanged();
    });
    m_exportJob->start();
  });
}

void ExportVectorTiles::cancel()
{
  m_exportJob->cancelJobAsync().then(this, [this](bool succeeded)
  {
    emit jobCancelDone(succeeded);;
  });
  reset();
}

void ExportVectorTiles::reset()
{
  if (m_isUsingOfflineBasemap)
  {
    m_map->setBasemap(new Basemap(BasemapStyle::ArcGISStreetsNight, this));
    m_isUsingOfflineBasemap = false;
  }

  m_exportAreaGraphic->setGeometry(Geometry());
  m_jobStatus = 0; // Override the job status to set the UI button to "Export area" again
  emit jobStatusChanged();
}

int ExportVectorTiles::exportProgress() const
{
  return m_exportProgress;
}

int ExportVectorTiles::jobStatus() const
{
  return m_jobStatus;
}

// [WriteFile Name=ExportVectorTiles, Category=Layers]
// [Legal]
// Copyright 2022 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef EXPORTVECTORTILES_H
#define EXPORTVECTORTILES_H

// Qt headers
#include <QObject>
#include <QTemporaryDir>

namespace Esri::ArcGISRuntime
{
class ExportVectorTilesJob;
class Graphic;
class GraphicsOverlay;
class Map;
class MapQuickView;
}

Q_MOC_INCLUDE("MapQuickView.h")

class ExportVectorTiles : public QObject
{
  Q_OBJECT

  Q_PROPERTY(Esri::ArcGISRuntime::MapQuickView* mapView READ mapView WRITE setMapView NOTIFY mapViewChanged)
  Q_PROPERTY(int exportProgress READ exportProgress NOTIFY exportProgressChanged)
  Q_PROPERTY(int jobStatus READ jobStatus NOTIFY jobStatusChanged)

public:
  explicit ExportVectorTiles(QObject* parent = nullptr);
  ~ExportVectorTiles();

  enum ExportJobStatus
  {
    ExportStatusNotStarted,
    ExportStatusStarted,
    ExportStatusPaused,
    ExportStatusSucceeded,
    ExportStatusFailed,
    ExportStatusCancelling
  };
  Q_ENUM(ExportJobStatus)

  static void init();

  Q_INVOKABLE void startExport(double xSW, double ySW, double xNE, double yNE);
  Q_INVOKABLE void cancel();
  Q_INVOKABLE void reset();

signals:
  void mapViewChanged();
  void exportProgressChanged();
  void jobStatusChanged();
  void jobCancelDone(bool succeeded);

private:
  Esri::ArcGISRuntime::MapQuickView* mapView() const;
  void setMapView(Esri::ArcGISRuntime::MapQuickView* mapView);
  int exportProgress() const;
  int jobStatus() const;

  Esri::ArcGISRuntime::Map* m_map = nullptr;
  Esri::ArcGISRuntime::MapQuickView* m_mapView = nullptr;
  Esri::ArcGISRuntime::Graphic* m_exportAreaGraphic = nullptr;
  Esri::ArcGISRuntime::GraphicsOverlay* m_graphicsOverlay = nullptr;
  Esri::ArcGISRuntime::ExportVectorTilesJob* m_exportJob = nullptr;

  int m_exportProgress = 0;
  int m_jobStatus = 0;
  bool m_isUsingOfflineBasemap = false;

  QTemporaryDir m_tempDir;
};

#endif // EXPORTVECTORTILES_H

// [WriteFile Name=ExportVectorTiles, Category=Layers]
// [Legal]
// Copyright 2022 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
import Esri.Samples

Item {
    id: item

    // add a mapView component
    MapView {
        id: view
        anchors.fill: parent

        Component.onCompleted: {
            // Set and keep the focus on MapView to enable keyboard navigation
            forceActiveFocus();
        }
    }

    Rectangle {
        id: exportProgressWindow
        anchors.centerIn: parent

        color: "white"
        visible: model.jobStatus !== 0 && model.jobStatus !== 3 && model.jobStatus !== 4

        border {
            color: "black"
            width: 2
        }

        Column {
            id: exportProgressColumn
            anchors.centerIn: parent
            spacing: 10

            BusyIndicator {
                id: busyIndicator
                anchors.horizontalCenter: parent.horizontalCenter
                running: visible
            }

            Text {
                id: statusText
                anchors.horizontalCenter: parent.horizontalCenter
                text: "Export job status: " + ["Not started", "Started", "Paused", "Succeeded", "Failed", "Cancelling"][model.jobStatus]
                font.pixelSize: 16
            }

            Text {
                id: statusTextCanceled
                anchors.horizontalCenter: parent.horizontalCenter
                text: "Job cancelled"
                visible: !statusText.visible
                font.pixelSize: 16
            }

            Text {
                id: progressText
                anchors.horizontalCenter: parent.horizontalCenter
                text: model.exportProgress + "% Completed"
                font.pixelSize: 16
            }

            onWidthChanged: {
                exportProgressWindow.width = exportProgressColumn.width + 20
            }

            onHeightChanged: {
                exportProgressWindow.height = exportProgressColumn.height + 20
            }
        }
    }

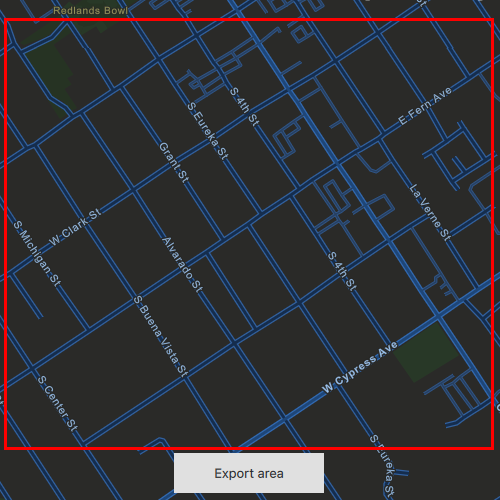

    // Create an extent rectangle for selecting the offline area
    Rectangle {
        id: extentRectangle
        anchors.centerIn: parent

        width: parent.width - parent.width * 0.1
        height: parent.height - parent.height * 0.25
        color: "transparent"
        border {
            color: "red"
            width: 3
        }
    }

    // Button to start the download
    Button {
        id: button
        anchors {
            bottom: parent.bottom
            bottomMargin: item.height * .05
            horizontalCenter: parent.horizontalCenter
        }
        width: 150

        text: "Export area"

        onClicked: {
            switch(model.jobStatus) {
            case ExportVectorTilesSample.ExportStatusNotStarted:
                model.startExport(extentRectangle.x, (extentRectangle.y + extentRectangle.height), (extentRectangle.x + extentRectangle.width), extentRectangle.y);
                extentRectangle.visible = false;
                break;
            case ExportVectorTilesSample.ExportStatusStarted:
                model.cancel();
                extentRectangle.visible = true;
                break;
            case ExportVectorTilesSample.ExportStatusPaused:
                break;
            case ExportVectorTilesSample.ExportStatusSucceeded:
                model.reset();
                extentRectangle.visible = true;
                break;
            case ExportVectorTilesSample.ExportStatusFailed:
                model.startExport(extentRectangle.x, (extentRectangle.y + extentRectangle.height), (extentRectangle.x + extentRectangle.width), extentRectangle.y);
                break;
            case ExportVectorTilesSample.ExportStatusCancelling:
                break;
            default:
                break;
            }
        }
    }

    // Declare the C++ instance which creates the map etc. and supply the view
    ExportVectorTilesSample {
        id: model
        mapView: view

        onJobStatusChanged: {
            switch(model.jobStatus) {
            case ExportVectorTilesSample.ExportStatusNotStarted:
                button.text = "Export area";
                break;
            case ExportVectorTilesSample.ExportStatusStarted:
                button.text = "Cancel export";
                exportProgressWindow.visible = true;
                break;
            case ExportVectorTilesSample.ExportStatusPaused:
                break;
            case ExportVectorTilesSample.ExportStatusSucceeded:
                button.text = "Reset";
                exportProgressWindow.visible = false;
                break;
            case ExportVectorTilesSample.ExportStatusFailed:
                button.text = "Export area";
                exportProgressWindow.visible = false;
                break;
            case ExportVectorTilesSample.ExportStatusCancelling:
                break;
            default:
                break;
            }
        }

        readonly property Timer timer: Timer {
            id: jobCancelDoneTimer
            interval: 2000
            onTriggered: { exportProgressWindow.visible = false; statusText.visible = true }
        }

        onJobCancelDone: succeeded => {
                             statusTextCanceled.text = (succeeded ? "Job canceled successfully" : "Job failed to cancel successfully");
                             exportProgressWindow.visible = true;
                             statusText.visible = false;
                             jobCancelDoneTimer.start();
                         }
    }
}

// [Legal]
// Copyright 2022 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// sample headers
#include "ExportVectorTiles.h"

// ArcGIS Maps SDK headers
#include "ArcGISRuntimeEnvironment.h"

// Qt headers
#include <QCommandLineParser>
#include <QDir>
#include <QGuiApplication>
#include <QQmlApplicationEngine>

// Platform specific headers
#ifdef Q_OS_WIN
#include <Windows.h>
#endif

int main(int argc, char *argv[])
{
  Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setUseLegacyAuthentication(false);
  QGuiApplication app(argc, argv);
  app.setApplicationName(QString("ExportVectorTiles"));

  // Use of ArcGIS location services, such as basemap styles, geocoding, and routing services,
  // requires an access token. For more information see
  // https://links.esri.com/arcgis-runtime-security-auth.

  // The following methods grant an access token:

  // 1. User authentication: Grants a temporary access token associated with a user's ArcGIS account.
  // To generate a token, a user logs in to the app with an ArcGIS account that is part of an
  // organization in ArcGIS Online or ArcGIS Enterprise.

  // 2. API key authentication: Get a long-lived access token that gives your application access to
  // ArcGIS location services. Go to the tutorial at https://links.esri.com/create-an-api-key.
  // Copy the API Key access token.

  const QString accessToken = QString("");

  if (accessToken.isEmpty())
  {
      qWarning() << "Use of ArcGIS location services, such as the basemap styles service, requires" <<
                    "you to authenticate with an ArcGIS account or set the API Key property.";
  }
  else
  {
      Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setApiKey(accessToken);
  }

  // Initialize the sample
  ExportVectorTiles::init();

  // Initialize application view
  QQmlApplicationEngine engine;
  // Add the import Path
  engine.addImportPath(QDir(QCoreApplication::applicationDirPath()).filePath("qml"));

#ifdef ARCGIS_RUNTIME_IMPORT_PATH_2
  engine.addImportPath(ARCGIS_RUNTIME_IMPORT_PATH_2);
#endif

  // Set the source
  engine.load(QUrl("qrc:/Samples/Layers/ExportVectorTiles/main.qml"));

  return app.exec();
}

// Copyright 2022 Esri.

// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0

// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.

import QtQuick.Controls
import Esri.Samples

ApplicationWindow {
    visible: true
    width: 800
    height: 600

    ExportVectorTiles {
        anchors.fill: parent
    }
}
