Query OGC API with CQL Filters

// [WriteFile Name=Query_OGC, Category=Layers]
// [Legal]
// Copyright 2021 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "QueryOGCAPICQLFilters.h"

// ArcGIS Maps SDK headers
#include "FeatureLayer.h"
#include "GeodatabaseTypes.h"
#include "LayerListModel.h"
#include "Map.h"
#include "MapQuickView.h"
#include "MapTypes.h"
#include "OgcFeatureCollectionTable.h"
#include "QueryParameters.h"
#include "SimpleLineSymbol.h"
#include "SimpleRenderer.h"
#include "SymbolTypes.h"
#include "TimeExtent.h"
#include "Viewpoint.h"

// Qt headers
#include <QDateTime>
#include <QFuture>

using namespace Esri::ArcGISRuntime;

QueryOGCAPICQLFilters::QueryOGCAPICQLFilters(QObject* parent /* = nullptr */):
  QObject(parent),
  m_map(new Map(BasemapStyle::ArcGISTopographic, this))
{
  const QUrl serviceUrl = QUrl("https://demo.ldproxy.net/daraa");
  const QString collectionId = "TransportationGroundCrv";
  m_ogcFeatureCollectionTable = new OgcFeatureCollectionTable(serviceUrl, collectionId, this);

  // FeatureRequestMode::ManualCache specifies that features from the server will be stored locally for display and querying
  // In this mode, ServiceFeatureTable::populateFromService() must be called to populate the local cache
  m_ogcFeatureCollectionTable->setFeatureRequestMode(FeatureRequestMode::ManualCache);

  // m_ogcFeatureCollectionTable->load() will be automatically called when added to a FeatureLayer
  m_featureLayer = new FeatureLayer(m_ogcFeatureCollectionTable, this);

  m_map->operationalLayers()->append(m_featureLayer);

  // Set a renderer to it to visualize the OGC API features and zoom to features
  m_featureLayer->setRenderer(new SimpleRenderer(new SimpleLineSymbol(SimpleLineSymbolStyle::Solid, Qt::darkMagenta, 3, this), this));
}

QueryOGCAPICQLFilters::~QueryOGCAPICQLFilters() = default;

void QueryOGCAPICQLFilters::init()
{
  // Register the map view for QML
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<QueryOGCAPICQLFilters>("Esri.Samples", 1, 0, "QueryOGCAPICQLFiltersSample");
}

MapQuickView* QueryOGCAPICQLFilters::mapView() const
{
  return m_mapView;
}

// Set the view (created in QML)
void QueryOGCAPICQLFilters::setMapView(MapQuickView* mapView)
{
  if (!mapView || mapView == m_mapView)
    return;

  m_mapView = mapView;
  m_mapView->setMap(m_map);
  m_mapView->setViewpointAsync(Viewpoint(32.62, 36.10, 200'000));

  QueryParameters queryParams;

  //Get the extent of the dataset
  m_dataSetExtent = m_ogcFeatureCollectionTable->extent();
  queryParams.setGeometry(m_dataSetExtent);
  queryParams.setWhereClause("F_CODE = 'AP010'");
  queryParams.setMaxFeatures(1000);

  // Populate the feature collection table with features that match the parameters, clear the cache, and store all table fields
  auto future = m_ogcFeatureCollectionTable->populateFromServiceAsync(queryParams, true, {});
  Q_UNUSED(future)

  emit mapViewChanged();
}

void QueryOGCAPICQLFilters::query(const QString& whereClause, const QString& maxFeature, const QString& fromDateString, const QString& toDateString)
{
  if (!m_ogcFeatureCollectionTable || !m_featureLayer || !m_mapView)
    return;

  // create the parameters
  QueryParameters queryParams;

  queryParams.setGeometry(m_mapView->currentViewpoint(ViewpointType::BoundingGeometry).targetGeometry().extent());
  queryParams.setWhereClause(whereClause);
  queryParams.setMaxFeatures(maxFeature.toUInt());

  if (!fromDateString.isEmpty() && !toDateString.isEmpty())
  {
    const QDateTime fromDate = QDateTime::fromString(fromDateString,"MM/dd/yyyy");
    const QDateTime toDate = QDateTime::fromString(toDateString,"MM/dd/yyyy");
    const TimeExtent timeExtent(fromDate.toUTC(), toDate.toUTC());
    queryParams.setTimeExtent(timeExtent);
  }

  // Populate the feature collection table with features that match the parameters,
  // clear the cache to prepare for the new query results, and store all table fields
  auto future = m_ogcFeatureCollectionTable->populateFromServiceAsync(queryParams, true, {});
  Q_UNUSED(future)
}

// [WriteFile Name=QueryOGCAPICQLFiltersQuery_OGC, Category=Layers]
// [Legal]
// Copyright 2021 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef QUERYOGCAPICQLFILTERS_H
#define QUERYOGCAPICQLFILTERS_H

// ArcGIS Maps SDK headers
#include "Envelope.h"

// Qt headers
#include <QObject>

namespace Esri::ArcGISRuntime
{
class FeatureLayer;
class Map;
class MapQuickView;
class OgcFeatureCollectionTable;
}

Q_MOC_INCLUDE("MapQuickView.h")

class QueryOGCAPICQLFilters : public QObject
{
  Q_OBJECT

  Q_PROPERTY(Esri::ArcGISRuntime::MapQuickView* mapView READ mapView WRITE setMapView NOTIFY mapViewChanged)

public:
  explicit QueryOGCAPICQLFilters(QObject* parent = nullptr);
  ~QueryOGCAPICQLFilters();

  static void init();
  Q_INVOKABLE void query(const QString& whereClause, const QString& maxFeature, const QString& fromDateString, const QString& toDateString);

signals:
  void mapViewChanged();

private:
  Esri::ArcGISRuntime::MapQuickView* mapView() const;
  void setMapView(Esri::ArcGISRuntime::MapQuickView* mapView);

  Esri::ArcGISRuntime::Envelope m_dataSetExtent;
  Esri::ArcGISRuntime::FeatureLayer* m_featureLayer = nullptr;
  Esri::ArcGISRuntime::Map* m_map = nullptr;
  Esri::ArcGISRuntime::MapQuickView* m_mapView = nullptr;
  Esri::ArcGISRuntime::OgcFeatureCollectionTable* m_ogcFeatureCollectionTable = nullptr;
};

#endif // QUERYOGCAPICQLFILTERS_H

// [WriteFile Name=Query_OGC, Category=Layers]
// [Legal]
// Copyright 2021 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]
import QtQuick
import QtQuick.Controls
import Esri.Samples

Item {

    // add a mapView component
    MapView {
        id: view
        anchors.fill: parent
    }

    // Declare the C++ instance which creates the map etc. and supply the view
    QueryOGCAPICQLFiltersSample {
        id: model
        mapView: view
    }

    Rectangle {
        anchors {
            fill: controlColumn
            margins: -5
        }
        color: "#efefef"
        radius: 5
        border {
            color: "darkgray"
            width: 1
        }
    }

    Column {
        id: controlColumn
        anchors {
            left: parent.left
            top: parent.top
            margins: 10
        }
        spacing: 5

        Row {
            spacing: 5
            Text {
                id: whereClauseText
                anchors.verticalCenter: parent.verticalCenter
                text: "Where Clause"
            }

            ComboBox {
                id: whereClauseMenu
                width: 200
                model: ["F_CODE = 'AP010'", "{ \"op\": \"=\", \"args\": [ { \"property\": \"F_CODE\" }, \"AP010\" ] }", "F_CODE LIKE 'AQ%'", "{\"op\": \"and\", \"args\":[{ \"op\": \"=\", \"args\":[{ \"property\" : \"F_CODE\" }, \"AP010\"]}, { \"op\": \"t_before\", \"args\":[{ \"property\" : \"ZI001_SDV\"},\"2013-01-01\"]}]}"]
            }
        }

        Row {
            spacing: 8
            Text {
                id: maxFeatureText
                anchors.verticalCenter: parent.verticalCenter
                text: "Max Features"
            }

            TextField {
                id: maxFeatureField
                anchors.verticalCenter: parent.verticalCenter
                width: 200
                text: "1000"
                selectByMouse: true
                validator: IntValidator {}
            }
        }

        Row {
            spacing: 8
            Text {
                id: fromField
                anchors.verticalCenter: parent.verticalCenter
                text: "From"
                rightPadding: 40
            }

            TextField {
                id: fromDate
                anchors.verticalCenter: parent.verticalCenter
                width: 200
                text: ""
                selectByMouse: true
                validator: RegularExpressionValidator {
                    regularExpression: /(0[1-9]|1[012])[/](0[1-9]|[12][0-9]|3[01])[/](19|20)\d\d/
                }
                placeholderText: "MM/DD/YYYY"
            }
        }

        Row {
            spacing: 8
            Text {
                id: toField
                anchors.verticalCenter: parent.verticalCenter
                text: "To"
                rightPadding: 53
            }

            TextField {
                id: toDate
                anchors.verticalCenter: parent.verticalCenter
                width: 200
                text: ""
                selectByMouse: true
                validator: RegularExpressionValidator {
                    regularExpression: /(0[1-9]|1[012])[/](0[1-9]|[12][0-9]|3[01])[/](19|20)\d\d/
                }
                placeholderText: "MM/DD/YYYY"
            }
        }

        Button {
            anchors.horizontalCenter: parent.horizontalCenter
            text: "Query"
            onClicked: {
                model.query(whereClauseMenu.currentText, maxFeatureField.text, fromDate.text, toDate.text);
            }
        }
    }
}

// [Legal]
// Copyright 2021 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// sample headers
#include "QueryOGCAPICQLFilters.h"

// ArcGIS Maps SDK headers
#include "ArcGISRuntimeEnvironment.h"

// Qt headers
#include <QCommandLineParser>
#include <QDir>
#include <QGuiApplication>
#include <QQmlApplicationEngine>

// Platform specific headers
#ifdef Q_OS_WIN
#include <Windows.h>
#endif

int main(int argc, char *argv[])
{
  Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setUseLegacyAuthentication(false);
  QGuiApplication app(argc, argv);
  app.setApplicationName(QString("QueryOGCAPICQLFilters"));

  // Use of ArcGIS location services, such as basemap styles, geocoding, and routing services,
  // requires an access token. For more information see
  // https://links.esri.com/arcgis-runtime-security-auth.

  // The following methods grant an access token:

  // 1. User authentication: Grants a temporary access token associated with a user's ArcGIS account.
  // To generate a token, a user logs in to the app with an ArcGIS account that is part of an
  // organization in ArcGIS Online or ArcGIS Enterprise.

  // 2. API key authentication: Get a long-lived access token that gives your application access to
  // ArcGIS location services. Go to the tutorial at https://links.esri.com/create-an-api-key.
  // Copy the API Key access token.

  const QString accessToken = QString("");

  if (accessToken.isEmpty())
  {
      qWarning() << "Use of ArcGIS location services, such as the basemap styles service, requires" <<
                    "you to authenticate with an ArcGIS account or set the API Key property.";
  }
  else
  {
      Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setApiKey(accessToken);
  }

  // Initialize the sample
  QueryOGCAPICQLFilters::init();

  // Initialize application view
  QQmlApplicationEngine engine;
  // Add the import Path
  engine.addImportPath(QDir(QCoreApplication::applicationDirPath()).filePath("qml"));

#ifdef ARCGIS_RUNTIME_IMPORT_PATH_2
  engine.addImportPath(ARCGIS_RUNTIME_IMPORT_PATH_2);
#endif

  // Set the source
  engine.load(QUrl("qrc:/Samples/Layers/QueryOGCAPICQLFilters/main.qml"));

  return app.exec();
}

// Copyright 2021 Esri.

// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0

// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.

import QtQuick.Controls
import Esri.Samples

ApplicationWindow {
    visible: true
    width: 800
    height: 600

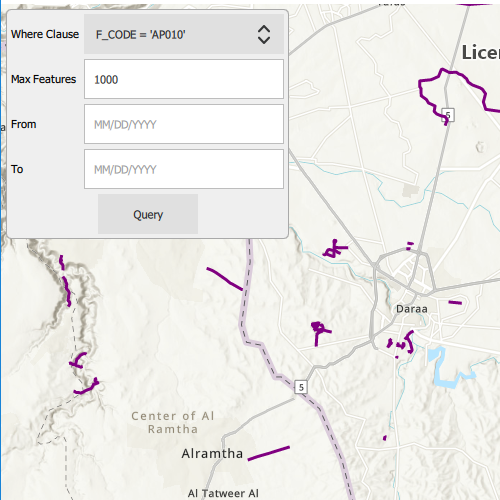

    QueryOGCAPICQLFilters {
        anchors.fill: parent
    }
}
