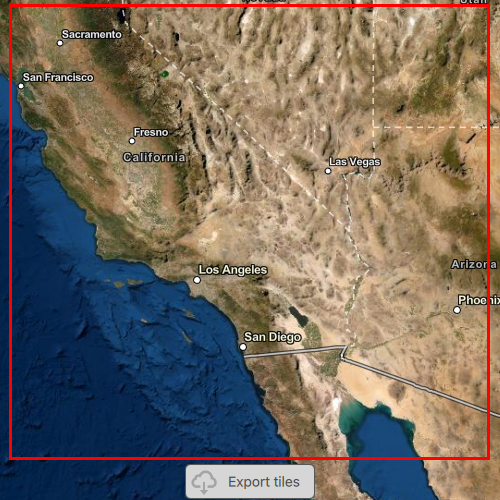

Export tiles

// [WriteFile Name=ExportTiles, Category=Layers]
// [Legal]
// Copyright 2016 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "ExportTiles.h"

// ArcGIS Maps SDK headers
#include "ArcGISTiledLayer.h"
#include "Basemap.h"
#include "Envelope.h"
#include "Error.h"
#include "ExportTileCacheJob.h"
#include "ExportTileCacheParameters.h"
#include "ExportTileCacheTask.h"
#include "GeometryEngine.h"
#include "LayerListModel.h"
#include "Map.h"
#include "MapQuickView.h"
#include "MapTypes.h"
#include "Point.h"
#include "SpatialReference.h"
#include "TaskTypes.h"
#include "TileCache.h"
#include "Viewpoint.h"

// Qt headers
#include <QFuture>
#include <QUrl>
#include <QUuid>

using namespace Esri::ArcGISRuntime;

ExportTiles::ExportTiles(QQuickItem* parent) :
  QQuickItem(parent)
{
}

ExportTiles::~ExportTiles() = default;

void ExportTiles::init()
{
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<ExportTiles>("Esri.Samples", 1, 0, "ExportTilesSample");
}

void ExportTiles::componentComplete()
{
  QQuickItem::componentComplete();

  // find QML MapView component
  m_mapView = findChild<MapQuickView*>("mapView");

  // create a tiled basemap
  Basemap* basemap = new Basemap(BasemapStyle::ArcGISImagery, this);

  // create an export tile cache task when basemap has finished loading
  connect(basemap, &Basemap::doneLoading, this, [this]()
  {
    if (!m_map->basemap()->baseLayers()->isEmpty())
      createExportTileCacheTask();
  });

  // create a new map instance
  m_map = new Map(basemap, this);

  // set an initial viewpoint
  m_map->setInitialViewpoint(Viewpoint(35, -117, 1e7));

  // set map on the map view
  m_mapView->setMap(m_map);
}

void ExportTiles::createExportTileCacheTask()
{
  // Get a tile layer from the basemap
  ArcGISTiledLayer* tiledLayer = dynamic_cast<ArcGISTiledLayer*>(m_map->basemap()->baseLayers()->at(0));

  // create the task with the url and load it
  m_exportTileCacheTask = new ExportTileCacheTask(tiledLayer->url(), this);

  connect(m_exportTileCacheTask, &ExportTileCacheTask::doneLoading, this, [this](const Error& error)
  {
    if (!error.isEmpty())
    {
      emit updateStatus("Export failed");
      emit hideWindow(5000, false);
    }
  });

  m_exportTileCacheTask->load();
}

void ExportTiles::exportTileCacheFromCorners(double xCorner1, double yCorner1, double xCorner2, double yCorner2)
{
  // create an envelope from the QML rectangle corners
  const Point corner1 = m_mapView->screenToLocation(xCorner1, yCorner1);
  const Point corner2 = m_mapView->screenToLocation(xCorner2, yCorner2);
  const Envelope extent(corner1, corner2);
  const Geometry tileCacheExtent = GeometryEngine::project(extent, SpatialReference::webMercator());

  // generate parameters
  m_exportTileCacheTask->createDefaultExportTileCacheParametersAsync(tileCacheExtent, m_mapView->mapScale(), m_mapView->mapScale() * 0.1)
      .then(this, [this](const ExportTileCacheParameters& parameters)
      {
        onDefaultExportTileCacheParametersCompleted_(parameters);
      });
}

void ExportTiles::onDefaultExportTileCacheParametersCompleted_(const ExportTileCacheParameters& parameters)
{
  //! [ExportTiles start job]
  // execute the task and obtain the job
  ExportTileCacheJob* exportJob = m_exportTileCacheTask->exportTileCache(parameters, m_tempPath.path() + "/offlinemap.tpkx");

  // check if there is a valid job
  if (exportJob)
  {
    connect(exportJob, &ExportTileCacheJob::progressChanged, this, [this, exportJob]()
    {
      m_exportTilesProgress = exportJob->progress();
      emit exportTilesProgressChanged();
    });

    // connect to the job's status changed signal
    connect(exportJob, &ExportTileCacheJob::statusChanged, this, [this, exportJob](JobStatus jobStatus)
    {
      // connect to the job's status changed signal to know once it is done
      switch (jobStatus) {
        case JobStatus::Failed:
          emit updateStatus("Export failed");
          emit hideWindow(5000, false);
          break;
        case JobStatus::NotStarted:
          emit updateStatus("Job not started");
          break;
        case JobStatus::Paused:
          emit updateStatus("Job paused");
          break;
        case JobStatus::Started:
          emit updateStatus("In progress...");
          break;
        case JobStatus::Succeeded:
          emit updateStatus("Adding TPKX...");
          emit hideWindow(1500, true);
          displayOutputTileCache(exportJob->result());
          break;
        default:
          break;
      }
    });

    // start the export job
    exportJob->start();
  }
  //! [ExportTiles start job]
  else
  {
    emit updateStatus("Export failed");
    emit hideWindow(5000, false);
  }
}

// display the tile cache once the task is complete
void ExportTiles::displayOutputTileCache(TileCache* tileCache)
{
  // create a new tiled layer from the output tile cache
  ArcGISTiledLayer* tiledLayer = new ArcGISTiledLayer(tileCache, this);

  // add the new layer to a basemap
  Basemap* basemap = new Basemap(tiledLayer, this);

  // set the new basemap on the map
  m_map->setBasemap(basemap);

  // zoom to the new layer and hide window once loaded
  connect(tiledLayer, &ArcGISTiledLayer::doneLoading, this, [this, tiledLayer]()
  {
    if (tiledLayer->loadStatus() == LoadStatus::Loaded)
    {
      const double prevMapScale = m_mapView->mapScale();
      m_map->setMinScale(prevMapScale);
      m_map->setMaxScale(prevMapScale * 0.1);
      m_mapView->setViewpointScaleAsync(prevMapScale * 0.5);
    }
  });
}

// [WriteFile Name=ExportTiles, Category=Layers]
// [Legal]
// Copyright 2016 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef EXPORT_TILES
#define EXPORT_TILES

// Qt headers
#include <QQuickItem>
#include <QTemporaryDir>

namespace Esri::ArcGISRuntime
{
  class ExportTileCacheParameters;
  class ExportTileCacheTask;
  class Map;
  class MapQuickView;
  class TileCache;
}

class ExportTiles : public QQuickItem
{
  Q_OBJECT

public:
  explicit ExportTiles(QQuickItem* parent = nullptr);
  ~ExportTiles() override;

  void componentComplete() override;
  static void init();
  Q_INVOKABLE void exportTileCacheFromCorners(double xCorner1, double yCorner1, double xCorner2, double yCorner2);
  Q_PROPERTY(int exportTilesProgress READ exportTilesProgress NOTIFY exportTilesProgressChanged)

signals:
  void updateStatus(QString status);
  void hideWindow(int time, bool success);
  void exportTilesProgressChanged();

private:
  void createExportTileCacheTask();
  void displayOutputTileCache(Esri::ArcGISRuntime::TileCache* tileCache);
  inline int exportTilesProgress() { return m_exportTilesProgress; }
  void onDefaultExportTileCacheParametersCompleted_(const Esri::ArcGISRuntime::ExportTileCacheParameters& parameters);

  Esri::ArcGISRuntime::ExportTileCacheTask* m_exportTileCacheTask = nullptr;
  Esri::ArcGISRuntime::Map* m_map = nullptr;
  Esri::ArcGISRuntime::MapQuickView* m_mapView = nullptr;
  QTemporaryDir m_tempPath;
  int m_exportTilesProgress = 0;
};

#endif // EXPORT_TILES

// [WriteFile Name=ExportTiles, Category=Layers]
// [Legal]
// Copyright 2016 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
import Esri.Samples

ExportTilesSample {
    id: exportTilesSample
    width: 800
    height: 600

    property string statusText: ""

    // add a mapView component
    MapView {
        id: mapView
        anchors.fill: parent
        objectName: "mapView"

        Component.onCompleted: {
            // Set the focus on MapView to initially enable keyboard navigation
            forceActiveFocus();
        }
    }

    onHideWindow: (time, success) => {
        exportWindow.hideWindow(time);

        if (success) {
            extentRectangle.visible = false;
            downloadButton.visible = false;
        }
    }

    onUpdateStatus: status => statusText = status;

    Rectangle {
        id: extentRectangle
        anchors.centerIn: parent
        width: parent.width - 50
        height: parent.height - 125
        color: "transparent"
        border {
            color: "red"
            width: 3
        }
    }

    // Create the download button to export tile cache
    Rectangle {
        id: downloadButton
        property bool pressed: false
        anchors {
            horizontalCenter: parent.horizontalCenter
            bottom: parent.bottom
            bottomMargin: 23
        }

        width: 130
        height: 35
        color: pressed ? "#959595" : "#D6D6D6"
        radius: 8
        border {
            color: "#585858"
            width: 1
        }

        Row {
            anchors.fill: parent
            spacing: 5
            Image {
                width: 38
                height: width
                source: "qrc:/Samples/Layers/ExportTiles/download.png"
            }
            Text {
                anchors.verticalCenter: parent.verticalCenter
                text: "Export tiles"
                font.pixelSize: 14
                color: "#474747"
            }
        }

        MouseArea {
            anchors.fill: parent
            onPressed: downloadButton.pressed = true
            onReleased: downloadButton.pressed = false
            onClicked: {
                // call the C++ invokable function to export tile cache from the input screen coordinates
                exportTilesSample.exportTileCacheFromCorners(extentRectangle.x, extentRectangle.y, (extentRectangle.x + extentRectangle.width), (extentRectangle.y + extentRectangle.height));
                exportWindow.visible = true;
            }
        }
    }

    // Create a window to display the export window
    Rectangle {
        id: exportWindow
        anchors.fill: parent
        color: "transparent"
        visible: false
        clip: true

        Rectangle {
            anchors.fill: parent
            color: "#60000000"
        }

        MouseArea {
            anchors.fill: parent
            onClicked: mouse => mouse.accepted = true
            onWheel: wheel => wheel.accepted = true
        }

        Rectangle {
            anchors.centerIn: parent
            width: 140
            height: 145
            color: "lightgrey"
            opacity: 0.8
            radius: 5
            border {
                color: "#4D4D4D"
                width: 1
            }

            Column {
                anchors {
                    fill: parent
                    margins: 10
                }
                spacing: 10

                BusyIndicator {
                    anchors.horizontalCenter: parent.horizontalCenter
                }

                Text {
                    anchors.horizontalCenter: parent.horizontalCenter
                    text: statusText
                    font.pixelSize: 16
                }

                Text {
                    anchors.horizontalCenter: parent.horizontalCenter
                    text: exportTilesSample.exportTilesProgress + "% Completed"
                    font.pixelSize: 16
                }
            }
        }

        Timer {
            id: hideWindowTimer

            onTriggered: exportWindow.visible = false;
        }

        function hideWindow(time) {
            hideWindowTimer.interval = time;
            hideWindowTimer.restart();
        }
    }
}

// [Legal]
// Copyright 2015 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// sample headers
#include "ExportTiles.h"

// ArcGIS Maps SDK headers
#include "ArcGISRuntimeEnvironment.h"

// Qt headers
#include <QCommandLineParser>
#include <QDir>
#include <QGuiApplication>
#include <QQmlEngine>
#include <QQuickView>
#include <QSettings>

// Platform specific headers
#ifdef Q_OS_WIN
#include <Windows.h>
#endif

#define STRINGIZE(x) #x
#define QUOTE(x) STRINGIZE(x)

int main(int argc, char *argv[])
{
  Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setUseLegacyAuthentication(false);
  QGuiApplication app(argc, argv);
  app.setApplicationName(QString("ExportTiles"));

  // Use of ArcGIS location services, such as basemap styles, geocoding, and routing services,
  // requires an access token. For more information see
  // https://links.esri.com/arcgis-runtime-security-auth.

  // The following methods grant an access token:

  // 1. User authentication: Grants a temporary access token associated with a user's ArcGIS account.
  // To generate a token, a user logs in to the app with an ArcGIS account that is part of an
  // organization in ArcGIS Online or ArcGIS Enterprise.

  // 2. API key authentication: Get a long-lived access token that gives your application access to
  // ArcGIS location services. Go to the tutorial at https://links.esri.com/create-an-api-key.
  // Copy the API Key access token.

  const QString accessToken = QString("");

  if (accessToken.isEmpty())
  {
      qWarning() << "Use of ArcGIS location services, such as the basemap styles service, requires" <<
                    "you to authenticate with an ArcGIS account or set the API Key property.";
  }
  else
  {
      Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setApiKey(accessToken);
  }

  // Initialize the sample
  ExportTiles::init();

  // Initialize application view
  QQuickView view;
  view.setResizeMode(QQuickView::SizeRootObjectToView);

  // Add the import Path
  view.engine()->addImportPath(QDir(QCoreApplication::applicationDirPath()).filePath("qml"));

  QString arcGISRuntimeImportPath = QUOTE(ARCGIS_RUNTIME_IMPORT_PATH);

 #if defined(LINUX_PLATFORM_REPLACEMENT)
  // on some linux platforms the string 'linux' is replaced with 1
  // fix the replacement paths which were created
  QString replaceString = QUOTE(LINUX_PLATFORM_REPLACEMENT);
  arcGISRuntimeImportPath = arcGISRuntimeImportPath.replace(replaceString, "linux", Qt::CaseSensitive);
 #endif

  // Add the Runtime and Extras path
  view.engine()->addImportPath(arcGISRuntimeImportPath);

  // Set the source
  view.setSource(QUrl("qrc:/Samples/Layers/ExportTiles/ExportTiles.qml"));

  view.show();

  return app.exec();
}
