Browse OGC API Feature Service

// [WriteFile Name=BrowseOGCAPIFeatureService, Category=Layers]
// [Legal]
// Copyright 2021 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "BrowseOGCAPIFeatureService.h"

// ArcGIS Maps SDK headers
#include "Envelope.h"
#include "Error.h"
#include "FeatureLayer.h"
#include "GeodatabaseTypes.h"
#include "LayerListModel.h"
#include "Map.h"
#include "MapQuickView.h"
#include "MapTypes.h"
#include "OgcFeatureCollectionInfo.h"
#include "OgcFeatureCollectionTable.h"
#include "OgcFeatureService.h"
#include "OgcFeatureServiceInfo.h"
#include "QueryParameters.h"

// Qt headers
#include <QFuture>
#include <QQmlEngine>

using namespace Esri::ArcGISRuntime;

BrowseOGCAPIFeatureService::BrowseOGCAPIFeatureService(QObject* parent /* = nullptr */):
  QObject(parent),
  m_map(new Map(BasemapStyle::ArcGISTopographic, this))
{
  // Initialise OGC feature service
  m_featureServiceUrl = "https://demo.ldproxy.net/daraa";
  loadFeatureService(m_featureServiceUrl);
}

BrowseOGCAPIFeatureService::~BrowseOGCAPIFeatureService() = default;

void BrowseOGCAPIFeatureService::init()
{
  // Register the map view for QML
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<BrowseOGCAPIFeatureService>("Esri.Samples", 1, 0, "BrowseOGCAPIFeatureServiceSample");
}

MapQuickView* BrowseOGCAPIFeatureService::mapView() const
{
  return m_mapView;
}

// Set the view (created in QML)
void BrowseOGCAPIFeatureService::setMapView(MapQuickView* mapView)
{
  if (!mapView || mapView == m_mapView)
    return;

  m_mapView = mapView;
  m_mapView->setMap(m_map);

  emit mapViewChanged();
}

QUrl BrowseOGCAPIFeatureService::featureServiceUrl() const
{
  return m_featureServiceUrl;
}

QStringList BrowseOGCAPIFeatureService::featureCollectionList() const
{
  return m_featureCollectionList;
}

QString BrowseOGCAPIFeatureService::errorMessage() const
{
  return m_errorMessage;
}

void BrowseOGCAPIFeatureService::setErrorMessage(const QString& message)
{
  m_errorMessage = message;
  emit errorMessageChanged();
}

void BrowseOGCAPIFeatureService::handleError(const Esri::ArcGISRuntime::Error& error)
{
  if (error.additionalMessage().isEmpty())
    setErrorMessage(error.message());
  else
    setErrorMessage(error.message() + "\n" + error.additionalMessage());
}

void BrowseOGCAPIFeatureService::loadFeatureService(const QUrl& url)
{
  if (m_featureService && m_featureService->loadStatus() == LoadStatus::Loading)
    return;

  clearExistingFeatureService();

  // Instantiate new OGCFeatureService object using url
  m_featureService = new OgcFeatureService(url, this);

  // Retrieve collection info when feature service has loaded
  connect(m_featureService, &OgcFeatureService::doneLoading, this, &BrowseOGCAPIFeatureService::retrieveCollectionInfos);

  // Connect errorOccurred to handleError()
  connect(m_featureService, &OgcFeatureService::errorOccurred, this, &BrowseOGCAPIFeatureService::handleError);

  // Connect to loadingChanged() to enable and disable UI buttons
  connect(m_featureService, &OgcFeatureService::loadStatusChanged, this, &BrowseOGCAPIFeatureService::serviceOrFeatureLoadingChanged);

  m_featureService->load();
}

void BrowseOGCAPIFeatureService::clearExistingFeatureService()
{
  m_collectionInfo.clear();
  if (m_serviceInfo != nullptr)
  {
    delete m_serviceInfo;
    m_serviceInfo = nullptr;
  }
  if (m_featureService != nullptr)
  {
    delete m_featureService;
    m_featureService = nullptr;
  }

  m_featureCollectionList.clear();
  emit featureCollectionListChanged();
}

void BrowseOGCAPIFeatureService::retrieveCollectionInfos()
{
  // Assign OGC service metadata to m_serviceInfo property
  m_serviceInfo = m_featureService->serviceInfo();

  // Assign information from each feature collection to the m_collectionInfo property
  m_collectionInfo = m_serviceInfo->featureCollectionInfos();

  createFeatureCollectionList();
}

void BrowseOGCAPIFeatureService::createFeatureCollectionList()
{
  m_featureCollectionList.clear();

  // Populate list with names of each feature collection
  for (OgcFeatureCollectionInfo* info : std::as_const(m_collectionInfo))
  {
    m_featureCollectionList.push_back(info->title());
  }

  emit featureCollectionListChanged();
}

void BrowseOGCAPIFeatureService::loadService(const QUrl& urlFromInterface)
{
  m_featureServiceUrl = urlFromInterface;
  emit urlChanged();
  loadFeatureService(m_featureServiceUrl);
}

void BrowseOGCAPIFeatureService::loadFeatureCollection(int selectedFeature)
{
  clearExistingFeatureLayer();

  // Create a CollectionInfo object from the selected feature collection
  OgcFeatureCollectionInfo* info = m_collectionInfo[selectedFeature];

  // Assign the CollectedInfo to the m_featureCollectionTable property
  m_featureCollectionTable = new OgcFeatureCollectionTable(info, this);

  // Set the feature request mode to manual (only manual is currently supported)
  // In this mode you must manually populate the table - panning and zooming won't request features automatically
  m_featureCollectionTable->setFeatureRequestMode(FeatureRequestMode::ManualCache);

  // Populate the OGC feature collection table
  QueryParameters queryParameters;
  queryParameters.setMaxFeatures(1000);
  auto future = m_featureCollectionTable->populateFromServiceAsync(queryParameters, false, QStringList{ /* empty */ });
  Q_UNUSED(future)

  // Create new Feature Layer from selected collection
  m_featureLayer = new FeatureLayer(m_featureCollectionTable, this);

  // Add feature layer to operational layers when it has finished loading
  connect(m_featureLayer, &FeatureLayer::doneLoading, this, &BrowseOGCAPIFeatureService::addFeatureLayerToMap);

  // Connect errorOccurred to handleError()
  connect(m_featureLayer, &FeatureLayer::errorOccurred, this, &BrowseOGCAPIFeatureService::handleError);

  // Connect to loadingChanged() to enable and disable UI buttons
  connect(m_featureLayer, &FeatureLayer::loadStatusChanged, this, &BrowseOGCAPIFeatureService::serviceOrFeatureLoadingChanged);

  m_featureLayer->load();
}

void BrowseOGCAPIFeatureService::clearExistingFeatureLayer()
{
  if (m_featureCollectionTable != nullptr)
  {
    delete m_featureCollectionTable;
    m_featureCollectionTable = nullptr;
  }

  if (m_featureLayer != nullptr)
  {
    delete m_featureLayer;
    m_featureLayer = nullptr;
  }
}

void BrowseOGCAPIFeatureService::addFeatureLayerToMap()
{
  // Adjust the viewpoint to match the extent of the layer
  m_mapView->setViewpointGeometryAsync(m_featureLayer->fullExtent());

  // Clear any existing layers and add current layer to map
  m_map->operationalLayers()->clear();
  m_map->operationalLayers()->append(m_featureLayer);
}

bool BrowseOGCAPIFeatureService::serviceOrFeatureLoading() const
{
  if (m_featureService && m_featureService->loadStatus() == LoadStatus::Loading)
    return true;

  else if (m_featureLayer && m_featureLayer->loadStatus() == LoadStatus::Loading)
    return true;

  return false;
}

// [WriteFile Name=BrowseOGCAPIFeatureService, Category=Layers]
// [Legal]
// Copyright 2021 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef BROWSEOGCAPIFEATURESERVICE_H
#define BROWSEOGCAPIFEATURESERVICE_H

// Qt headers
#include <QObject>
#include <QUrl>

namespace Esri::ArcGISRuntime
{
class Error;
class FeatureLayer;
class Map;
class MapQuickView;
class OgcFeatureCollectionTable;
class OgcFeatureCollectionInfo;
class OgcFeatureService;
class OgcFeatureServiceInfo;
}

Q_MOC_INCLUDE("MapQuickView.h")

class BrowseOGCAPIFeatureService : public QObject
{
  Q_OBJECT

  Q_PROPERTY(Esri::ArcGISRuntime::MapQuickView* mapView READ mapView WRITE setMapView NOTIFY mapViewChanged)
  Q_PROPERTY(QString errorMessage READ errorMessage WRITE setErrorMessage NOTIFY errorMessageChanged)
  Q_PROPERTY(QUrl featureServiceUrl READ featureServiceUrl NOTIFY urlChanged)
  Q_PROPERTY(QStringList featureCollectionList READ featureCollectionList NOTIFY featureCollectionListChanged)
  Q_PROPERTY(bool serviceOrFeatureLoading READ serviceOrFeatureLoading NOTIFY serviceOrFeatureLoadingChanged)

public:
  explicit BrowseOGCAPIFeatureService(QObject* parent = nullptr);
  ~BrowseOGCAPIFeatureService();

  static void init();

  Q_INVOKABLE void loadService(const QUrl& urlFromInterface);
  Q_INVOKABLE void loadFeatureCollection(int selectedFeature);

signals:
  void mapViewChanged();
  void errorMessageChanged();
  void urlChanged();
  void featureCollectionListChanged();
  void serviceOrFeatureLoadingChanged();

private:
  Esri::ArcGISRuntime::MapQuickView* mapView() const;
  void setMapView(Esri::ArcGISRuntime::MapQuickView* mapView);
  QUrl featureServiceUrl() const;
  QStringList featureCollectionList() const;
  QString errorMessage() const;
  void setErrorMessage(const QString& message);
  void handleError(const Esri::ArcGISRuntime::Error& error);
  void loadFeatureService(const QUrl& url);
  void clearExistingFeatureService();
  void retrieveCollectionInfos();
  void createFeatureCollectionList();
  void clearExistingFeatureLayer();
  void addFeatureLayerToMap();
  bool serviceOrFeatureLoading() const;

  Esri::ArcGISRuntime::Map* m_map = nullptr;
  Esri::ArcGISRuntime::MapQuickView* m_mapView = nullptr;
  QString m_errorMessage = "";
  QUrl m_featureServiceUrl;
  Esri::ArcGISRuntime::OgcFeatureService* m_featureService = nullptr;
  Esri::ArcGISRuntime::OgcFeatureServiceInfo* m_serviceInfo = nullptr;
  QList<Esri::ArcGISRuntime::OgcFeatureCollectionInfo*> m_collectionInfo;
  QStringList m_featureCollectionList;
  Esri::ArcGISRuntime::OgcFeatureCollectionTable* m_featureCollectionTable = nullptr;
  Esri::ArcGISRuntime::FeatureLayer* m_featureLayer = nullptr;
};

#endif // BROWSEOGCAPIFEATURESERVICE_H

// [WriteFile Name=BrowseOGCAPIFeatureService, Category=Layers]
// [Legal]
// Copyright 2021 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
import Esri.Samples
import QtQuick.Layouts

Item {
    // Declare the C++ instance which creates the map etc. and supply the view
    BrowseOGCAPIFeatureServiceSample {
        id: model
        mapView: view
    }

    // add a mapView component
    MapView {
        id: view
        anchors.fill: parent

        Component.onCompleted: {
            // Set the focus on MapView to initially enable keyboard navigation
            forceActiveFocus();
        }

        // Add the OGC feature service UI element
        Control {
            id: uiControl
            anchors {
                right: view.right
                top: view.top
                margins: 10
            }
            padding: 10
            background: Rectangle {
                color: "white"
                border.color: "black"
            }
            contentItem: GridLayout {
                columns: 2
                Label {
                    id: instructionLabel

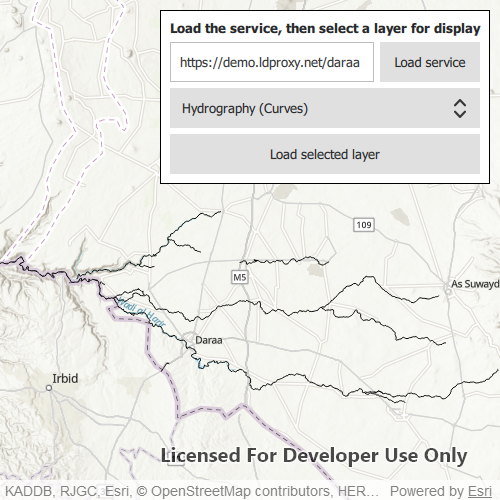

                    text: "Load the service, then select a layer for display"
                    font.bold: true
                    verticalAlignment: "AlignVCenter"
                    horizontalAlignment: "AlignHCenter"
                    Layout.columnSpan: 2
                    Layout.fillWidth: true
                }
                TextField {
                    id: serviceURLBox
                    text: model.featureServiceUrl
                    Layout.fillWidth: true
                    selectByMouse: true
                }
                Button {
                    id: connectButton
                    text: "Load service"
                    enabled: !model.serviceOrFeatureLoading
                    onClicked: model.loadService(serviceURLBox.text);

                }
                ComboBox {
                    id: featureList
                    model: model.featureCollectionList
                    Layout.columnSpan: 2
                    Layout.fillWidth: true
                    Layout.fillHeight: true
                }
                Button {
                    id: loadLayerButton
                    text: "Load selected layer"
                    enabled: !model.serviceOrFeatureLoading && featureList.currentIndex >= 0
                    onClicked: model.loadFeatureCollection(featureList.currentIndex);
                    Layout.columnSpan: 2
                    Layout.fillWidth: true
                }
            }
        }

        // Pop-up error message box
        Dialog {
            id: errorMessageBox
            visible: model.errorMessage === ""? false : true
            title: model.errorMessage
            standardButtons: Dialog.Ok
            x: (parent.width - width) / 2
            y: (parent.height - height) / 2
        }
    }
}

// [Legal]
// Copyright 2021 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// sample headers
#include "BrowseOGCAPIFeatureService.h"

// ArcGIS Maps SDK headers
#include "ArcGISRuntimeEnvironment.h"

// Qt headers
#include <QDir>
#include <QGuiApplication>
#include <QQmlApplicationEngine>

// Platform specific headers
#ifdef Q_OS_WIN
#include <Windows.h>
#endif

int main(int argc, char *argv[])
{
  Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setUseLegacyAuthentication(false);
  QGuiApplication app(argc, argv);
  app.setApplicationName(QString("BrowseOGCAPIFeatureService"));

  // Use of ArcGIS location services, such as basemap styles, geocoding, and routing services,
  // requires an access token. For more information see
  // https://links.esri.com/arcgis-runtime-security-auth.

  // The following methods grant an access token:

  // 1. User authentication: Grants a temporary access token associated with a user's ArcGIS account.
  // To generate a token, a user logs in to the app with an ArcGIS account that is part of an
  // organization in ArcGIS Online or ArcGIS Enterprise.

  // 2. API key authentication: Get a long-lived access token that gives your application access to
  // ArcGIS location services. Go to the tutorial at https://links.esri.com/create-an-api-key.
  // Copy the API Key access token.

  const QString accessToken = QString("");

  if (accessToken.isEmpty())
  {
      qWarning() << "Use of ArcGIS location services, such as the basemap styles service, requires" <<
                    "you to authenticate with an ArcGIS account or set the API Key property.";
  }
  else
  {
      Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setApiKey(accessToken);
  }

  // Initialize the sample
  BrowseOGCAPIFeatureService::init();

  // Initialize application view
  QQmlApplicationEngine engine;
  // Add the import Path
  engine.addImportPath(QDir(QCoreApplication::applicationDirPath()).filePath("qml"));

#ifdef ARCGIS_RUNTIME_IMPORT_PATH_2
  engine.addImportPath(ARCGIS_RUNTIME_IMPORT_PATH_2);
#endif

  // Set the source
  engine.load(QUrl("qrc:/Samples/Layers/BrowseOGCAPIFeatureService/main.qml"));

  return app.exec();
}

// Copyright 2021 Esri.

// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0

// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.

import QtQuick.Controls
import Esri.Samples

ApplicationWindow {
    visible: true
    width: 800
    height: 600

    BrowseOGCAPIFeatureService {
        anchors.fill: parent
    }
}
