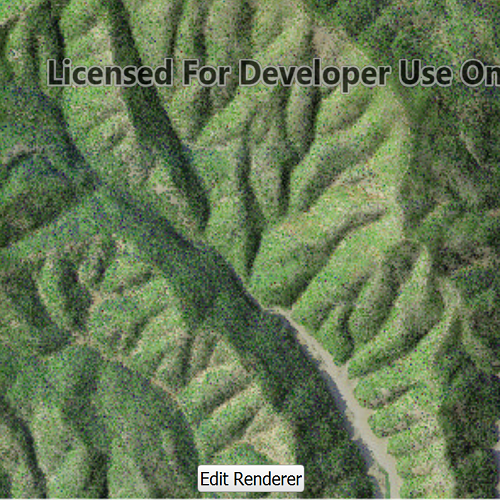

Blend raster layer

// [WriteFile Name=BlendRasterLayer, Category=Layers]
// [Legal]
// Copyright 2017 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "BlendRasterLayer.h"

// ArcGIS Maps SDK headers
#include "Basemap.h"
#include "BlendRenderer.h"
#include "ColorRamp.h"
#include "Map.h"
#include "MapQuickView.h"
#include "MapViewTypes.h"
#include "Raster.h"
#include "RasterLayer.h"
#include "RasterTypes.h"

// Qt headers
#include <QStandardPaths>
#include <QtCore/qglobal.h>

using namespace Esri::ArcGISRuntime;

// helper method to get cross platform data path
namespace
{
  QString defaultDataPath()
  {
    QString dataPath;

  #ifdef Q_OS_IOS
    dataPath = QStandardPaths::writableLocation(QStandardPaths::DocumentsLocation);
  #else
    dataPath = QStandardPaths::writableLocation(QStandardPaths::HomeLocation);
  #endif

    return dataPath;
  }
} // namespace

BlendRasterLayer::BlendRasterLayer(QQuickItem* parent /* = nullptr */):
  QQuickItem(parent),
  m_dataPath(defaultDataPath() + "/ArcGIS/Runtime/Data/raster")
{
}

BlendRasterLayer::~BlendRasterLayer() = default;

void BlendRasterLayer::init()
{
  // Register the map view for QML
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<BlendRasterLayer>("Esri.Samples", 1, 0, "BlendRasterLayerSample");
}

void BlendRasterLayer::componentComplete()
{
  QQuickItem::componentComplete();

  // find QML MapView component
  m_mapView = findChild<MapQuickView*>("mapView");
  m_mapView->setWrapAroundMode(WrapAroundMode::Disabled);

  // Create the raster and raster layer
  Raster* raster = new Raster(m_dataPath + "/Shasta.tif", this);
  m_rasterLayer = new RasterLayer(raster, this);

  m_elevationRaster = new Raster(m_dataPath + "/Shasta_Elevation.tif", this);
  m_rasterLayerColorRamp = new RasterLayer(m_elevationRaster, this);

  // Add the raster to the map
  m_basemap = new Basemap(m_rasterLayer, this);
  m_basemapColorRamp = new Basemap(m_rasterLayerColorRamp, this);
  m_map = new Map(m_basemap, this);
  m_mapView->setMap(m_map);
}

void BlendRasterLayer::applyRenderSettings(double altitude, double azimuth, int slopeTypeVal, int colorRampTypeVal)
{
  PresetColorRampType colorRampType = static_cast<PresetColorRampType>(colorRampTypeVal);
  RasterLayer* rasterLyr = rasterLayer(colorRampType != PresetColorRampType::None);
  if (!rasterLyr)
    return;

  QList<double> outputMinValues{9};
  QList<double> outputMaxValues{255};
  QList<double> sourceMinValues;
  QList<double> sourceMaxValues;
  QList<double> noDataValues;
  QList<double> gammas;
  double zFactor = 1.;
  double pixelSizeFactor = 1.;
  double pixelSizePower = 1.;
  int outputBitDepth = 8;
  ColorRamp* colorRamp = ColorRamp::create(colorRampType, 800, this);
  SlopeType slopeType = static_cast<SlopeType>(slopeTypeVal);

  BlendRenderer* renderer = new BlendRenderer(m_elevationRaster,
                                              outputMinValues,
                                              outputMaxValues,
                                              sourceMinValues,
                                              sourceMaxValues,
                                              noDataValues,
                                              gammas,
                                              colorRamp,
                                              altitude,
                                              azimuth,
                                              zFactor,
                                              slopeType,
                                              pixelSizeFactor,
                                              pixelSizePower,
                                              outputBitDepth,
                                              this);

  rasterLyr->setRenderer(renderer);
}

RasterLayer* BlendRasterLayer::rasterLayer(bool useColorRamp)
{
  m_map->setBasemap(useColorRamp ? m_basemapColorRamp : m_basemap);
  return useColorRamp ? m_rasterLayerColorRamp : m_rasterLayer;
}

// [WriteFile Name=BlendRasterLayer, Category=Layers]
// [Legal]
// Copyright 2017 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef BLENDRASTERLAYER_H
#define BLENDRASTERLAYER_H

// Qt headers
#include <QQuickItem>

namespace Esri::ArcGISRuntime
{
  class Basemap;
  class Map;
  class MapQuickView;
  class Raster;
  class RasterLayer;
}

class BlendRasterLayer : public QQuickItem
{
  Q_OBJECT

public:
  explicit BlendRasterLayer(QQuickItem* parent = nullptr);
  ~BlendRasterLayer() override;

  static void init();

  void componentComplete() override;

  Q_INVOKABLE void applyRenderSettings(double altitude, double azimuth, int slopeType, int colorRampType);

private:

  Esri::ArcGISRuntime::RasterLayer* rasterLayer(bool useColorRamp);

  Esri::ArcGISRuntime::Map* m_map = nullptr;
  Esri::ArcGISRuntime::Basemap* m_basemap = nullptr;
  Esri::ArcGISRuntime::Basemap* m_basemapColorRamp = nullptr;
  Esri::ArcGISRuntime::MapQuickView* m_mapView = nullptr;
  Esri::ArcGISRuntime::RasterLayer* m_rasterLayer = nullptr;
  Esri::ArcGISRuntime::RasterLayer* m_rasterLayerColorRamp = nullptr;
  Esri::ArcGISRuntime::Raster* m_elevationRaster = nullptr;
  QString m_dataPath;
};

#endif // BLENDRASTERLAYER_H

// [WriteFile Name=BlendRasterLayer, Category=Layers]
// [Legal]
// Copyright 2017 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
import QtQuick.Layouts
import Esri.Samples

BlendRasterLayerSample {
    id: rootRectangle
    clip: true
    width: 800
    height: 600

    property bool editingRenderer: false

    SlopeTypeModel {
        id: slopeTypeModel
    }

    ColorRampModel {
        id: colorRampModel
    }

    // add a mapView component
    MapView {
        anchors.fill: parent
        objectName: "mapView"

        Component.onCompleted: {
            // Set the focus on MapView to initially enable keyboard navigation
            forceActiveFocus();
        }
    }

    Rectangle {
        visible: editButton.visible
        anchors.centerIn: editButton
        radius: 8
        height: editButton.height + (16)
        width: editButton.width + (16)
        color: "lightgrey"
        border.color: "darkgrey"
        border.width: 2
        opacity: 0.75
    }

    Button {
        id: editButton
        anchors {
            bottom: parent.bottom
            horizontalCenter: parent.horizontalCenter
            margins: 32
        }
        visible: rendererBox.width === 0
        text: "Edit Renderer"
        onClicked: editingRenderer = true;
    }

    Rectangle {
        id: rendererBox
        clip: true
        anchors {
            right: parent.right
            top: parent.top
            bottom: parent.bottom
        }

        color: "white"
        opacity: 0.75
        width: editingRenderer ? parent.width : 0

        GridLayout {
            anchors {
                centerIn: parent
                margins: 24
            }

            columns: 2

            Text {
                text: "altitude"
            }

            SpinBox {
                id: altSpinBox
                from: 0
                to: 90
                editable: true
                textFromValue: function(value) {
                    return value.toFixed(0) + "\u00B0";
                }
                valueFromText: function(text) {
                    return parseInt(text);
                }
            }

            Text {
                text: "azimuth"
            }

            SpinBox {
                id: azimuthSpinBox
                from: 0
                to: 360
                editable: true
                textFromValue: function(value) {
                    return value.toFixed(0) + "\u00B0";
                }
                valueFromText: function(text) {
                    return parseInt(text);
                }
            }

            Text {
                text: "slope type"
            }

            ComboBox {
                id: slopeCombo
                property int modelWidth: 0
                Layout.minimumWidth: modelWidth + leftPadding + rightPadding + (indicator ? indicator.width : 10)
                Layout.fillWidth: true
                textRole: "name"
                model: slopeTypeModel
                Component.onCompleted : {
                    for (let i = 0; i < model.count; ++i) {
                        metrics.text = model.get(i).name;
                        modelWidth = Math.max(modelWidth, metrics.width);
                    }
                }
                TextMetrics {
                    id: metrics
                    font: slopeCombo.font
                }
            }

            Text {
                text: "color ramp"
            }

            ComboBox {
                id: colorCombo
                property int modelWidth: 0
                Layout.minimumWidth: modelWidth + leftPadding + rightPadding + (indicator ? indicator.width : 10)
                Layout.fillWidth: true
                textRole: "name"
                model: colorRampModel
                Component.onCompleted : {
                    for (let i = 0; i < model.count; ++i) {
                        metrics2.text = model.get(i).name;
                        modelWidth = Math.max(modelWidth, metrics2.width);
                    }
                }
                TextMetrics {
                    id: metrics2
                    font: colorCombo.font
                }
            }

            Button {
                text: "Render"
                Layout.columnSpan: 2
                Layout.alignment: Qt.AlignHCenter
                onClicked: {
                    editingRenderer = false;
                    applyRenderSettings(altSpinBox.value,
                                        azimuthSpinBox.value,
                                        slopeTypeModel.get(slopeCombo.currentIndex).value,
                                        colorRampModel.get(colorCombo.currentIndex).value);
                }
            }
        }

        Behavior on width { PropertyAnimation { duration: 500 } }
    }
}

// [WriteFile Name=BlendRasterLayer, Category=Layers]
// [Legal]
// Copyright 2017 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick

ListModel {
    ListElement {
        name: "none"
        value: -1
    }
    ListElement {
        name: "elevation"
        value: 0
    }
    ListElement {
        name: "DEM screen"
        value: 1
    }
    ListElement {
        name: "DEM light"
        value: 2
    }
}

// [WriteFile Name=BlendRasterLayer, Category=Layers]
// [Legal]
// Copyright 2017 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick

ListModel {
    ListElement {
        name: "none"
        value: -1
    }
    ListElement {
        name: "degree"
        value: 0
    }
    ListElement {
        name: "percent rise"
        value: 1
    }
    ListElement {
        name: "scaled"
        value: 2
    }
}

// [Legal]
// Copyright 2017 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// sample headers
#include "BlendRasterLayer.h"

// ArcGIS Maps SDK headers
#include "ArcGISRuntimeEnvironment.h"

// Qt headers
#include <QCommandLineParser>
#include <QDir>
#include <QGuiApplication>
#include <QQmlEngine>
#include <QQuickView>

// Platform specific headers
#ifdef Q_OS_WIN
#include <Windows.h>
#endif

#define STRINGIZE(x) #x
#define QUOTE(x) STRINGIZE(x)

using namespace Esri::ArcGISRuntime;

int main(int argc, char *argv[])
{
  Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setUseLegacyAuthentication(false);
  QGuiApplication app(argc, argv);
  app.setApplicationName(QString("BlendRasterLayer"));

  // Use of ArcGIS location services, such as basemap styles, geocoding, and routing services,
  // requires an access token. For more information see
  // https://links.esri.com/arcgis-runtime-security-auth.

  // The following methods grant an access token:

  // 1. User authentication: Grants a temporary access token associated with a user's ArcGIS account.
  // To generate a token, a user logs in to the app with an ArcGIS account that is part of an
  // organization in ArcGIS Online or ArcGIS Enterprise.

  // 2. API key authentication: Get a long-lived access token that gives your application access to
  // ArcGIS location services. Go to the tutorial at https://links.esri.com/create-an-api-key.
  // Copy the API Key access token.

  const QString accessToken = QString("");

  if (accessToken.isEmpty())
  {
      qWarning() << "Use of ArcGIS location services, such as the basemap styles service, requires" <<
                    "you to authenticate with an ArcGIS account or set the API Key property.";
  }
  else
  {
      Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setApiKey(accessToken);
  }

  // Initialize the sample
  BlendRasterLayer::init();

  // Initialize application view
  QQuickView view;
  view.setResizeMode(QQuickView::SizeRootObjectToView);

  // Add the import Path
  view.engine()->addImportPath(QDir(QCoreApplication::applicationDirPath()).filePath("qml"));

  QString arcGISRuntimeImportPath = QUOTE(ARCGIS_RUNTIME_IMPORT_PATH);

 #if defined(LINUX_PLATFORM_REPLACEMENT)
  // on some linux platforms the string 'linux' is replaced with 1
  // fix the replacement paths which were created
  QString replaceString = QUOTE(LINUX_PLATFORM_REPLACEMENT);
  arcGISRuntimeImportPath = arcGISRuntimeImportPath.replace(replaceString, "linux", Qt::CaseSensitive);
 #endif

  // Add the Runtime and Extras path
  view.engine()->addImportPath(arcGISRuntimeImportPath);

  // Set the source
  view.setSource(QUrl("qrc:/Samples/Layers/BlendRasterLayer/BlendRasterLayer.qml"));

  view.show();

  return app.exec();
}
