Colormap renderer

// [WriteFile Name=RasterColormapRenderer, Category=Layers]
// [Legal]
// Copyright 2017 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "RasterColormapRenderer.h"

// ArcGIS Maps SDK headers
#include "ColormapRenderer.h"
#include "Envelope.h"
#include "Error.h"
#include "LayerListModel.h"
#include "Map.h"
#include "MapQuickView.h"
#include "MapTypes.h"
#include "MapViewTypes.h"
#include "Raster.h"
#include "RasterLayer.h"

// Qt headers
#include <QFuture>
#include <QStandardPaths>
#include <QtCore/qglobal.h>

using namespace Esri::ArcGISRuntime;

// helper method to get cross platform data path
namespace
{
QString defaultDataPath()
{
  QString dataPath;

#ifdef Q_OS_IOS
  dataPath = QStandardPaths::writableLocation(QStandardPaths::DocumentsLocation);
#else
  dataPath = QStandardPaths::writableLocation(QStandardPaths::HomeLocation);
#endif

  return dataPath;
}
} // namespace

RasterColormapRenderer::RasterColormapRenderer(QQuickItem* parent /* = nullptr */):
  QQuickItem(parent),
  m_dataPath(defaultDataPath() + "/ArcGIS/Runtime/Data/raster")
{
}

RasterColormapRenderer::~RasterColormapRenderer() = default;
void RasterColormapRenderer::init()
{
  // Register the map view for QML
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<RasterColormapRenderer>("Esri.Samples", 1, 0, "RasterColormapRendererSample");
}

void RasterColormapRenderer::componentComplete()
{
  QQuickItem::componentComplete();

  // find QML MapView component
  m_mapView = findChild<MapQuickView*>("mapView");
  m_mapView->setWrapAroundMode(WrapAroundMode::Disabled);

  //! [RasterColormapRenderer cpp add raster basemap]
  // Create the raster and raster layer
  Raster* raster = new Raster(m_dataPath + "/ShastaBW.tif", this);
  m_rasterLayer = new RasterLayer(raster, this);

  connect(m_rasterLayer, &RasterLayer::doneLoading, this, [this](const Error& error)
  {
    if (!error.isEmpty())
    {
      qDebug() << error.message() << error.additionalMessage();
      return;
    }

    m_mapView->setViewpointGeometryAsync(m_rasterLayer->fullExtent(), 50);
  });

  ColormapRenderer* colormapRenderer = createRenderer();

  // set the colormap renderer on the raster layer
  m_rasterLayer->setRenderer(colormapRenderer);

  // Add the raster to the map as an operational layer
  Map* map = new Map(BasemapStyle::ArcGISImageryStandard, this);

  map->operationalLayers()->append(m_rasterLayer);

  m_mapView->setMap(map);
  //! [RasterColormapRenderer cpp add raster basemap]
}

ColormapRenderer *RasterColormapRenderer::createRenderer()
{

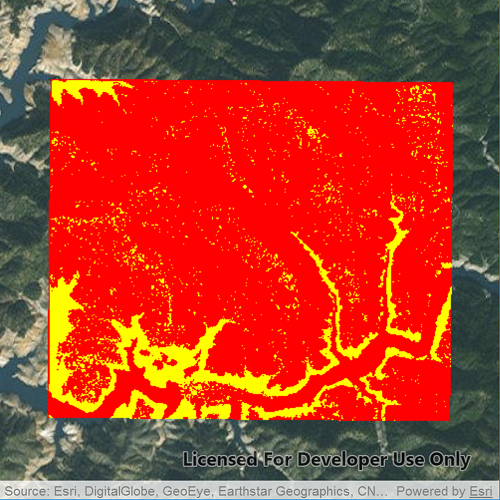

  // create a color map where values 0-150 are red and 150-250 are yellow
  QList<QColor> colors;
  colors.reserve(250);
  for (int i = 0; i < 250; ++i)
    colors.append( i < 150 ? Qt::red : Qt::yellow);

  // create a colormap renderer
  ColormapRenderer* colormapRenderer = new ColormapRenderer(colors, this);

  return colormapRenderer;
}

// [WriteFile Name=RasterColormapRenderer, Category=Layers]
// [Legal]
// Copyright 2017 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef COLORMAPRENDERER_H
#define COLORMAPRENDERER_H

// Qt headers
#include <QQuickItem>

namespace Esri::ArcGISRuntime
{
  class ColormapRenderer;
  class Map;
  class MapQuickView;
  class RasterLayer;
}

class RasterColormapRenderer : public QQuickItem
{
  Q_OBJECT

public:
  explicit RasterColormapRenderer(QQuickItem* parent = nullptr);
  ~RasterColormapRenderer() override;

  static void init();

  void componentComplete() override;

private:
  Esri::ArcGISRuntime::ColormapRenderer* createRenderer();

  Esri::ArcGISRuntime::Map* m_map = nullptr;
  Esri::ArcGISRuntime::MapQuickView* m_mapView = nullptr;
  Esri::ArcGISRuntime::RasterLayer* m_rasterLayer = nullptr;
  QString m_dataPath;
};

#endif // COLORMAPRENDERER_H

// [WriteFile Name=RasterColormapRenderer, Category=Layers]
// [Legal]
// Copyright 2017 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
import Esri.Samples

RasterColormapRendererSample {
    id: rootRectangle
    clip: true
    width: 800
    height: 800

    // add a mapView component
    MapView {
        anchors.fill: parent
        objectName: "mapView"

        Component.onCompleted: {
            // Set the focus on MapView to initially enable keyboard navigation
            forceActiveFocus();
        }
    }
}

// [Legal]
// Copyright 2017 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// sample headers
#include "RasterColormapRenderer.h"

// ArcGIS Maps SDK headers
#include "ArcGISRuntimeEnvironment.h"

// Qt headers
#include <QCommandLineParser>
#include <QDir>
#include <QGuiApplication>
#include <QQmlEngine>
#include <QQuickView>

// Platform specific headers
#ifdef Q_OS_WIN
#include <Windows.h>
#endif

#define STRINGIZE(x) #x
#define QUOTE(x) STRINGIZE(x)

int main(int argc, char *argv[])
{
  Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setUseLegacyAuthentication(false);
  QGuiApplication app(argc, argv);
  app.setApplicationName(QString("RasterColormapRenderer"));

  // Use of ArcGIS location services, such as basemap styles, geocoding, and routing services,
  // requires an access token. For more information see
  // https://links.esri.com/arcgis-runtime-security-auth.

  // The following methods grant an access token:

  // 1. User authentication: Grants a temporary access token associated with a user's ArcGIS account.
  // To generate a token, a user logs in to the app with an ArcGIS account that is part of an
  // organization in ArcGIS Online or ArcGIS Enterprise.

  // 2. API key authentication: Get a long-lived access token that gives your application access to
  // ArcGIS location services. Go to the tutorial at https://links.esri.com/create-an-api-key.
  // Copy the API Key access token.

  const QString accessToken = QString("");

  if (accessToken.isEmpty())
  {
      qWarning() << "Use of ArcGIS location services, such as the basemap styles service, requires" <<
                    "you to authenticate with an ArcGIS account or set the API Key property.";
  }
  else
  {
      Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setApiKey(accessToken);
  }

  //Initialize the sample
  RasterColormapRenderer::init();

  // Initialize application view
  QQuickView view;
  view.setResizeMode(QQuickView::SizeRootObjectToView);

  // Add the import Path
  view.engine()->addImportPath(QDir(QCoreApplication::applicationDirPath()).filePath("qml"));

  QString arcGISRuntimeImportPath = QUOTE(ARCGIS_RUNTIME_IMPORT_PATH);

 #if defined(LINUX_PLATFORM_REPLACEMENT)
  // on some linux platforms the string 'linux' is replaced with 1
  // fix the replacement paths which were created
  QString replaceString = QUOTE(LINUX_PLATFORM_REPLACEMENT);
  arcGISRuntimeImportPath = arcGISRuntimeImportPath.replace(replaceString, "linux", Qt::CaseSensitive);
 #endif

  // Add the Runtime and Extras path
  view.engine()->addImportPath(arcGISRuntimeImportPath);

  // Set the source
  view.setSource(QUrl("qrc:/Samples/Layers/RasterColormapRenderer/RasterColormapRenderer.qml"));

  view.show();

  return app.exec();
}
