Display KML

// [WriteFile Name=DisplayKml, Category=Layers]
// [Legal]
// Copyright 2018 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "DisplayKml.h"

// ArcGIS Maps SDK headers
#include "ArcGISTiledElevationSource.h"
#include "Camera.h"
#include "ElevationSourceListModel.h"
#include "KmlDataset.h"
#include "KmlLayer.h"
#include "LayerListModel.h"
#include "MapTypes.h"
#include "Point.h"
#include "PortalItem.h"
#include "Scene.h"
#include "SceneQuickView.h"
#include "SpatialReference.h"
#include "Surface.h"
#include "Viewpoint.h"

// Qt headers
#include <QFuture>
#include <QStandardPaths>
#include <QtCore/qglobal.h>

using namespace Esri::ArcGISRuntime;

// helper method to get cross platform data path
namespace
{
  QString defaultDataPath()
  {
    QString dataPath;

  #ifdef Q_OS_IOS
    dataPath = QStandardPaths::writableLocation(QStandardPaths::DocumentsLocation);
  #else
    dataPath = QStandardPaths::writableLocation(QStandardPaths::HomeLocation);
  #endif

    return dataPath;
  }
} // namespace

DisplayKml::DisplayKml(QQuickItem* parent /* = nullptr */):
  QQuickItem(parent)
{
}

DisplayKml::~DisplayKml() = default;

void DisplayKml::init()
{
  // Register classes for QML
  qmlRegisterType<SceneQuickView>("Esri.Samples", 1, 0, "SceneView");
  qmlRegisterType<DisplayKml>("Esri.Samples", 1, 0, "DisplayKmlSample");
}

void DisplayKml::componentComplete()
{
  QQuickItem::componentComplete();

  // Create a scene and give it to the SceneView
  m_sceneView = findChild<SceneQuickView*>("sceneView");
  m_scene = new Scene(BasemapStyle::ArcGISImagery, this);
  Surface* surface = new Surface(this);
  surface->elevationSources()->append(
        new ArcGISTiledElevationSource(
          QUrl("https://elevation3d.arcgis.com/arcgis/rest/services/WorldElevation3D/Terrain3D/ImageServer"),
          this));
  m_scene->setBaseSurface(surface);
  m_sceneView->setArcGISScene(m_scene);

  // Create a viewpoint
  const Point pt(-98, 39, SpatialReference::wgs84());
  constexpr int scale = 10000000;
  const Camera camera(pt, scale, 0, 0, 0);
  m_viewpoint = Viewpoint(pt, scale, camera);
}

void DisplayKml::createFromUrl()
{
  clearLayers();

  // Create the Dataset from an Online URL

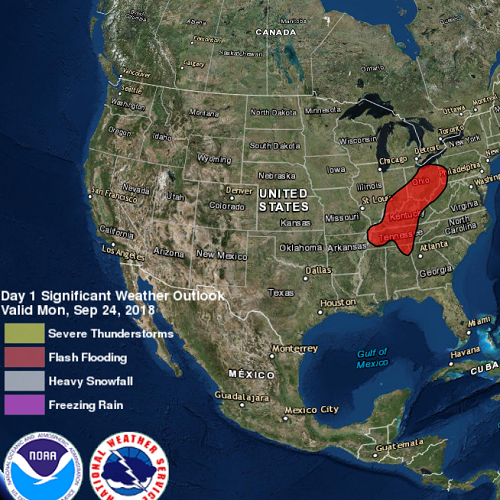

  m_kmlDataset = new KmlDataset(QUrl("https://www.wpc.ncep.noaa.gov/kml/noaa_chart/WPC_Day1_SigWx.kml"), this);

  // Create the Layer
  m_kmlLayer = new KmlLayer(m_kmlDataset, this);

  // Add the layer to the scene
  addLayerToScene(m_kmlLayer);
}

void DisplayKml::createFromFile()
{
  clearLayers();

  // Create the Dataset from a local file
  const QString dataPath = defaultDataPath() + "/ArcGIS/Runtime/Data/kml/";
  m_kmlDataset = new KmlDataset(QUrl(dataPath + "US_State_Capitals.kml"), this);

  // Create the Layer
  m_kmlLayer = new KmlLayer(m_kmlDataset, this);

  // Add the layer to the scene
  addLayerToScene(m_kmlLayer);
}

void DisplayKml::createFromPortalItem()
{
  clearLayers();

  // Create the PortalItem
  m_portalItem = new PortalItem(QStringLiteral("9fe0b1bfdcd64c83bd77ea0452c76253"), this);

  // Create the Layer
  m_kmlLayer = new KmlLayer(m_portalItem, this);

  // Add the layer to the scene
  addLayerToScene(m_kmlLayer);
}

void DisplayKml::addLayerToScene(KmlLayer* layer)
{
  if (!m_scene)
    return;

  m_scene->operationalLayers()->append(layer);

  if (m_viewpoint.isEmpty())
    return;

  m_sceneView->setViewpointAsync(m_viewpoint);
}

void DisplayKml::clearLayers()
{
  if (!m_scene)
    return;

  // remove the layers
  m_scene->operationalLayers()->clear();

  // clean up the kml datasets
  if (m_kmlDataset)
  {
    delete m_kmlDataset;
    m_kmlDataset = nullptr;
  }

  // clean up the portal items
  if (m_portalItem)
  {
    delete m_portalItem;
    m_portalItem = nullptr;
  }

  // clean up the kml layers
  if (m_kmlLayer)
  {
    delete m_kmlLayer;
    m_kmlLayer = nullptr;
  }
}

// [WriteFile Name=DisplayKml, Category=Layers]
// [Legal]
// Copyright 2018 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef DISPLAYKML_H
#define DISPLAYKML_H

// ArcGIS Maps SDK headers
#include "Viewpoint.h"

// Qt headers
#include <QQuickItem>

namespace Esri::ArcGISRuntime
{
class SceneQuickView;
class Scene;
class KmlLayer;
class KmlDataset;
class PortalItem;
}

class DisplayKml : public QQuickItem
{
  Q_OBJECT

public:
  explicit DisplayKml(QQuickItem* parent = nullptr);
  ~DisplayKml() override;

  void componentComplete() override;
  static void init();

  Q_INVOKABLE void createFromUrl();
  Q_INVOKABLE void createFromFile();
  Q_INVOKABLE void createFromPortalItem();

private:
  Esri::ArcGISRuntime::SceneQuickView* m_sceneView = nullptr;
  Esri::ArcGISRuntime::Scene* m_scene = nullptr;
  Esri::ArcGISRuntime::Viewpoint m_viewpoint;
  Esri::ArcGISRuntime::KmlDataset* m_kmlDataset = nullptr;
  Esri::ArcGISRuntime::KmlLayer* m_kmlLayer = nullptr;
  Esri::ArcGISRuntime::PortalItem* m_portalItem = nullptr;

  void addLayerToScene(Esri::ArcGISRuntime::KmlLayer* layer);
  void clearLayers();
};

#endif // DISPLAYKML_H

// [WriteFile Name=DisplayKml, Category=Layers]
// [Legal]
// Copyright 2018 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
import Esri.Samples

DisplayKmlSample {
    id: rootRectangle
    clip: true
    width: 800
    height: 600

    SceneView {
        objectName: "sceneView"
        anchors.fill: parent

        Component.onCompleted: {
            // Set the focus on SceneView to initially enable keyboard navigation
            forceActiveFocus();
        }
    }

    ComboBox {
        id: comboBox
        anchors {
            right: parent.right
            top: parent.top
            margins: 5
        }

        // Add a background to the ComboBox
        Rectangle {
            anchors.fill: parent
            radius: 10
            // Make the rectangle visible if a dropdown indicator exists
            // An indicator only exists if a theme is set
            visible: parent.indicator
            border.width: 1
        }

        property int modelWidth: 0
        width: modelWidth + leftPadding + rightPadding + (indicator ? indicator.width : 10)

        model: ["URL", "Local file", "Portal Item"]

        onCurrentIndexChanged: {
            // create the Layer
            if (currentIndex === 0)
                createFromUrl();
            else if (currentIndex === 1)
                createFromFile();
            else
                createFromPortalItem();
        }

        Component.onCompleted : {
            for (let i = 0; i < model.length; ++i) {
                metrics.text = model[i];
                modelWidth = Math.max(modelWidth, metrics.width);
            }
            currentIndexChanged();
        }

        TextMetrics {
            id: metrics
            font: comboBox.font
        }
    }
}

// [Legal]
// Copyright 2018 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// sample headers
#include "DisplayKml.h"

// ArcGIS Maps SDK headers
#include "ArcGISRuntimeEnvironment.h"

// Qt headers
#include <QCommandLineParser>
#include <QDir>
#include <QGuiApplication>
#include <QQmlEngine>
#include <QQuickView>
#include <QSurfaceFormat>

// Platform specific headers
#ifdef Q_OS_WIN
#include <Windows.h>
#endif

#define STRINGIZE(x) #x
#define QUOTE(x) STRINGIZE(x)

int main(int argc, char *argv[])
{
  Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setUseLegacyAuthentication(false);
#if defined(Q_OS_LINUX) && !defined(Q_OS_ANDROID)
    // Linux requires 3.2 OpenGL Context
    // in order to instance 3D symbols
    QSurfaceFormat fmt = QSurfaceFormat::defaultFormat();
    fmt.setVersion(3, 2);
    QSurfaceFormat::setDefaultFormat(fmt);
#endif

  QGuiApplication app(argc, argv);
  app.setApplicationName(QString("DisplayKml"));

  // Use of ArcGIS location services, such as basemap styles, geocoding, and routing services,
  // requires an access token. For more information see
  // https://links.esri.com/arcgis-runtime-security-auth.

  // The following methods grant an access token:

  // 1. User authentication: Grants a temporary access token associated with a user's ArcGIS account.
  // To generate a token, a user logs in to the app with an ArcGIS account that is part of an
  // organization in ArcGIS Online or ArcGIS Enterprise.

  // 2. API key authentication: Get a long-lived access token that gives your application access to
  // ArcGIS location services. Go to the tutorial at https://links.esri.com/create-an-api-key.
  // Copy the API Key access token.

  const QString accessToken = QString("");

  if (accessToken.isEmpty())
  {
      qWarning() << "Use of ArcGIS location services, such as the basemap styles service, requires" <<
                    "you to authenticate with an ArcGIS account or set the API Key property.";
  }
  else
  {
      Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setApiKey(accessToken);
  }

    // Initialize the sample
    DisplayKml::init();

    // Initialize application view
    QQuickView view;
    view.setResizeMode(QQuickView::SizeRootObjectToView);

    QString arcGISRuntimeImportPath = QUOTE(ARCGIS_RUNTIME_IMPORT_PATH);

#if defined(LINUX_PLATFORM_REPLACEMENT)
    // on some linux platforms the string 'linux' is replaced with 1
    // fix the replacement paths which were created
    QString replaceString = QUOTE(LINUX_PLATFORM_REPLACEMENT);
    arcGISRuntimeImportPath = arcGISRuntimeImportPath.replace(replaceString, "linux", Qt::CaseSensitive);
#endif

    // Add the import Path
    view.engine()->addImportPath(QDir(QCoreApplication::applicationDirPath()).filePath("qml"));
    // Add the Runtime and Extras path
    view.engine()->addImportPath(arcGISRuntimeImportPath);

    // Set the source
    view.setSource(QUrl("qrc:/Samples/Layers/DisplayKml/DisplayKml.qml"));

    view.show();

    return app.exec();
}
