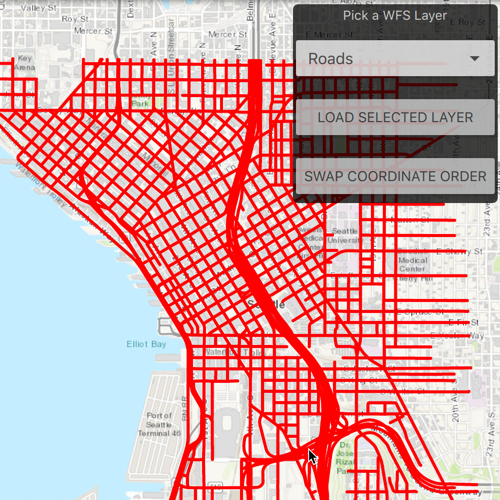

Browse WFS layers

// [WriteFile Name=BrowseWfsLayers, Category=Layers]
// [Legal]
// Copyright 2019 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "BrowseWfsLayers.h"

// ArcGIS Maps SDK headers
#include "CoreTypes.h"
#include "Envelope.h"
#include "Error.h"
#include "FeatureLayer.h"
#include "FeatureQueryResult.h"
#include "GeodatabaseTypes.h"
#include "LayerListModel.h"
#include "Map.h"
#include "MapQuickView.h"
#include "MapTypes.h"
#include "Polygon.h"
#include "QueryParameters.h"
#include "SimpleLineSymbol.h"
#include "SimpleMarkerSymbol.h"
#include "SimpleRenderer.h"
#include "SymbolTypes.h"
#include "WfsFeatureTable.h"
#include "WfsLayerInfo.h"
#include "WfsService.h"
#include "WfsServiceInfo.h"

// Qt headers
#include <QFuture>

using namespace Esri::ArcGISRuntime;

BrowseWfsLayers::BrowseWfsLayers(QObject* parent /* = nullptr */):
  QObject(parent),
  m_map(new Map(BasemapStyle::ArcGISTopographic, this))
{
  // create WFS Service
  m_wfsService = new WfsService(QUrl("https://dservices2.arcgis.com/ZQgQTuoyBrtmoGdP/arcgis/services/Seattle_Downtown_Features/WFSServer?service=wfs&request=getcapabilities"),this);

  // once WFS Service is loaded, populate QStringList with layer names for ComboBox
  connect(m_wfsService, &WfsService::doneLoading, this, [this](const Error& e)
  {
    if (!e.isEmpty())
      return;

    m_wfsLayersInfoList = m_wfsService->serviceInfo().layerInfos();
    for (const WfsLayerInfo& i : std::as_const(m_wfsLayersInfoList))
        m_layerInfoTitleList.append(i.title());

    emit layerInfoTitleListChanged();
  });
  m_wfsService->load();
}

BrowseWfsLayers::~BrowseWfsLayers() = default;

void BrowseWfsLayers::init()
{
  // Register the map view for QML
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<BrowseWfsLayers>("Esri.Samples", 1, 0, "BrowseWfsLayersSample");
}

MapQuickView* BrowseWfsLayers::mapView() const
{
  return m_mapView;
}

// Set the view (created in QML)
void BrowseWfsLayers::setMapView(MapQuickView* mapView)
{
  if (!mapView || mapView == m_mapView)
    return;

  m_mapView = mapView;
  m_mapView->setMap(m_map);

  emit mapViewChanged();
}

void BrowseWfsLayers::createWfsFeatureTable(int index, bool swap)
{
  if (m_wfsLayersInfoList.isEmpty())
    return;

  // if swapAxisOrder button is selected swap the axis otherwise reset to default(OgcAxisOrder::NoSwap or false)
  if (swap)
    m_swapAxis = !m_swapAxis;
  else
    m_swapAxis = false;

  // enable busy indicator
  m_loadingIndicator = true;
  emit isLoadingChanged();

  // clear previous layer
  m_map->operationalLayers()->clear();
  // create WFS Feature Table from selected layer
  m_wfsFeatureTable = new WfsFeatureTable(m_wfsLayersInfoList[index], this);

  // Set feature request mode to manual - only manual is supported at v100.5.
  // In this mode, you must manually populate the table - panning and zooming
  // won't request features automatically.
  m_wfsFeatureTable->setFeatureRequestMode(FeatureRequestMode::ManualCache);

  if (m_swapAxis)
    m_wfsFeatureTable->setAxisOrder(OgcAxisOrder::Swap);
  else
    m_wfsFeatureTable->setAxisOrder(OgcAxisOrder::NoSwap);

  // once WFS Feature Table is loaded, populate the table and add the layer to the map
  connect(m_wfsFeatureTable, &WfsFeatureTable::doneLoading, this, [this](const Error& e)
  {
    if(!e.isEmpty())
      return;

    populateWfsFeatureTable();
  });
  m_wfsFeatureTable->load();
}

void BrowseWfsLayers::populateWfsFeatureTable()
{
  if (!m_mapView || !m_wfsFeatureTable)
    return;

  // create query parameters
  QueryParameters params;
  params.setGeometry(m_mapView->visibleArea().extent());
  params.setSpatialRelationship(SpatialRelationship::Intersects);

  // query the service
  constexpr bool clearCache = false;
  const QStringList outFields {"*"};
  m_wfsFeatureTable->populateFromServiceAsync(params, clearCache, outFields).then(this, [this](FeatureQueryResult* queryResult)
  {
    // Delete result when finished.
    auto result = std::unique_ptr<FeatureQueryResult>(queryResult);
    addFeatureLayerToMap();
    m_mapView->setViewpointGeometryAsync(m_wfsFeatureTable->extent());
  });
}

void BrowseWfsLayers::addFeatureLayerToMap()
{
  // create feature layer from the feature table
  SimpleRenderer* sr = nullptr;
  SimpleMarkerSymbol* sms = nullptr;
  SimpleLineSymbol* sls = nullptr;

  // appropriate symbology for each corresponding geometry type
  switch (m_wfsFeatureTable->geometryType()) {
  case GeometryType::Point:
    sms = new SimpleMarkerSymbol(SimpleMarkerSymbolStyle::Circle, QColor("green"), 3.0f, this);
    sr = new SimpleRenderer(sms, this);
    break;
  case GeometryType::Polygon:
    sls = new SimpleLineSymbol(SimpleLineSymbolStyle::Solid, QColor("blue"), 3.0f, this);
    sr = new SimpleRenderer(sls, this);
    break;
  case GeometryType::Polyline:
    sls = new SimpleLineSymbol(SimpleLineSymbolStyle::Solid, QColor("red"), 3.0f, this);
    sr = new SimpleRenderer(sls, this);
    break;
  default:
    qDebug() << "Error! No Renderer defined for this GeometryType";
    return;
  }

  // apply renderer to layer
  FeatureLayer* featureLayer = new FeatureLayer(m_wfsFeatureTable, this);
  featureLayer->setRenderer(sr);

  // add the layer to the map
  m_map->operationalLayers()->append(featureLayer);
  // disable busy indicator
  m_loadingIndicator = false;
  emit isLoadingChanged();
}

// [WriteFile Name=BrowseWfsLayers, Category=Layers]
// [Legal]
// Copyright 2019 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef BROWSEWFSLAYERS_H
#define BROWSEWFSLAYERS_H

// Qt headers
#include <QList>
#include <QObject>
#include <QStringListModel>

namespace Esri::ArcGISRuntime
{
class Map;
class MapQuickView;
class WfsService;
class WfsFeatureTable;
class WfsLayerInfo;
class LayerListModel;
}

Q_MOC_INCLUDE("MapQuickView.h")

class BrowseWfsLayers : public QObject
{
  Q_OBJECT

  Q_PROPERTY(Esri::ArcGISRuntime::MapQuickView* mapView READ mapView WRITE setMapView NOTIFY mapViewChanged)
  Q_PROPERTY(QStringList layerInfoTitleListModel MEMBER m_layerInfoTitleList NOTIFY layerInfoTitleListChanged)
  Q_PROPERTY(bool isLoading MEMBER m_loadingIndicator NOTIFY isLoadingChanged)

public:
  explicit BrowseWfsLayers(QObject* parent = nullptr);
  ~BrowseWfsLayers();

  static void init();

  Q_INVOKABLE void createWfsFeatureTable(int index, bool swap);

signals:
  void mapViewChanged();
  void layerInfoTitleListChanged();
  void isLoadingChanged();

private:
  Esri::ArcGISRuntime::MapQuickView* mapView() const;
  void setMapView(Esri::ArcGISRuntime::MapQuickView* mapView);
  void populateWfsFeatureTable();
  void addFeatureLayerToMap();

  Esri::ArcGISRuntime::Map* m_map = nullptr;
  Esri::ArcGISRuntime::MapQuickView* m_mapView = nullptr;
  Esri::ArcGISRuntime::WfsService* m_wfsService = nullptr;
  Esri::ArcGISRuntime::WfsFeatureTable* m_wfsFeatureTable = nullptr;
  QList<Esri::ArcGISRuntime::WfsLayerInfo> m_wfsLayersInfoList;
  QStringList m_layerInfoTitleList;
  bool m_loadingIndicator = false;
  bool m_swapAxis = false;

};

#endif // BROWSEWFSLAYERS_H

// [WriteFile Name=BrowseWfsLayers, Category=Layers]
// [Legal]
// Copyright 2019 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
import QtQuick.Layouts
import Esri.Samples

Item {
    readonly property bool swapAxis: true

    // add a mapView component
    MapView {
        id: view
        anchors.fill: parent

        Component.onCompleted: {
            // Set the focus on MapView to initially enable keyboard navigation
            forceActiveFocus();
        }
    }

    BusyIndicator {
        id: loadingIndicator
        anchors.horizontalCenter: parent.horizontalCenter
        anchors.verticalCenter: parent.verticalCenter
        running: browseWfsLayersSampleModel.isLoading;
    }

    Rectangle {
        anchors {
            margins: 5
            right: parent.right
            top: parent.top
        }
        width: childrenRect.width
        height: childrenRect.height
        color: "#000000"
        opacity: .75
        radius: 5

        ColumnLayout {
            Text {
                text: qsTr("Pick a WFS Layer")
                Layout.margins: 3
                Layout.alignment: Qt.AlignHCenter
                color: "#ffffff"
            }

            ComboBox {
                id: layersComboBox
                model: browseWfsLayersSampleModel.layerInfoTitleListModel
                Layout.fillWidth: true
                Layout.margins: 3
                Layout.alignment: Qt.AlignHCenter

                // Add a background to the ComboBox
                Rectangle {
                    anchors.fill: parent
                    radius: 10
                    // Make the rectangle visible if a dropdown indicator exists
                    // An indicator only exists if a theme is set
                    visible: parent.indicator
                    border.width: 1
                }
            }

            Button {
                id: loadSelectedLayerBtn
                text: qsTr("Load Selected Layer")
                Layout.fillWidth: true
                Layout.margins: 3
                onClicked: browseWfsLayersSampleModel.createWfsFeatureTable(layersComboBox.currentIndex, !swapAxis);
            }

            Button {
                id: swapAxisOrder
                text: qsTr("Swap Coordinate Order")
                Layout.margins: 3
                Layout.fillWidth: true
                onClicked:{
                    browseWfsLayersSampleModel.createWfsFeatureTable(layersComboBox.currentIndex, swapAxis);
                }
            }
        }
    }

    // Declare the C++ instance which creates the map etc. and supply the view
    BrowseWfsLayersSample {
        id: browseWfsLayersSampleModel
        mapView: view
    }
}
