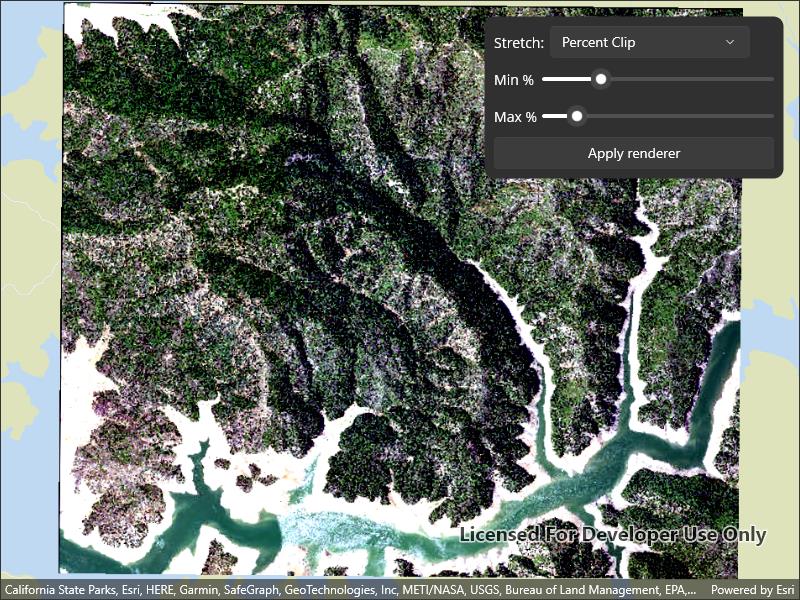

RGB renderer

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
// Copyright 2022 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific
// language governing permissions and limitations under the License.

using ArcGIS.Samples.Managers;
using Esri.ArcGISRuntime.Mapping;
using Esri.ArcGISRuntime.Rasters;
using System.Collections;

namespace ArcGIS.Samples.RasterRgbRenderer
{
    [ArcGIS.Samples.Shared.Attributes.Sample(
        name: "RGB renderer",
        category: "Layers",
        description: "Apply an RGB renderer to a raster layer to enhance feature visibility.",
        instructions: "Choose one of the stretch parameter types. The other options will adjust based on the chosen type. Add your inputs and select the 'Update' button to update the renderer.",
        tags: new[] { "analysis", "color", "composite", "imagery", "multiband", "multispectral", "pan-sharpen", "photograph", "raster", "spectrum", "stretch", "visualization" })]
    [ArcGIS.Samples.Shared.Attributes.OfflineData("7c4c679ab06a4df19dc497f577f111bd")]
    public partial class RasterRgbRenderer : ContentPage
    {
        // A reference to the raster layer to render.
        private RasterLayer _rasterLayer;

        public RasterRgbRenderer()
        {
            InitializeComponent();

            // Call a function to set up the map
            _ = Initialize();
        }

        private async Task Initialize()
        {
            // Add available stretch types to the combo box.
            StretchTypeComboBox.ItemsSource = new string[] { "Min Max", "Percent Clip", "Standard Deviation" };

            // Create a map with a streets basemap.
            Map map = new Map(BasemapStyle.ArcGISStreets);

            // Get the file name for the local raster dataset.
            string filepath = GetRasterPath();

            // Load the raster file
            Raster rasterFile = new Raster(filepath);

            // Create a new raster layer to show the image.
            _rasterLayer = new RasterLayer(rasterFile);

            try
            {
                // Once the layer has loaded, enable the button to change the renderer.
                await _rasterLayer.LoadAsync();
                ApplyRgbRendererButton.IsEnabled = true;

                // Create a viewpoint with the raster's full extent.
                Viewpoint fullRasterExtent = new Viewpoint(_rasterLayer.FullExtent);

                // Set the initial viewpoint for the map.
                map.InitialViewpoint = fullRasterExtent;

                // Add the layer to the map.
                map.OperationalLayers.Add(_rasterLayer);

                // Add the map to the map view.
                MyMapView.Map = map;

                // Select "Min Max" as the stretch type.
                StretchTypeComboBox.SelectedIndex = 0;

                // Create a range of values from 0-255.
                IList minMaxValues = Enumerable.Range(0, 256).ToList();

                // Fill the min and max red combo boxes with the range and set default values.
                MinRedComboBox.ItemsSource = minMaxValues;
                MinRedComboBox.SelectedItem = 0;
                MaxRedComboBox.ItemsSource = minMaxValues;
                MaxRedComboBox.SelectedItem = 255;

                // Fill the min and max green combo boxes with the range and set default values.
                MinGreenComboBox.ItemsSource = minMaxValues;
                MinGreenComboBox.SelectedItem = 0;
                MaxGreenComboBox.ItemsSource = minMaxValues;
                MaxGreenComboBox.SelectedItem = 255;

                // Fill the min and max blue combo boxes with the range and set default values.
                MinBlueComboBox.ItemsSource = minMaxValues;
                MinBlueComboBox.SelectedItem = 0;
                MaxBlueComboBox.ItemsSource = minMaxValues;
                MaxBlueComboBox.SelectedItem = 255;

                // Fill the standard deviation factor combo box and set a default value.
                IEnumerable<int> wholeStdDevs = Enumerable.Range(1, 10);
                List<double> halfStdDevs = wholeStdDevs.Select(i => (double)i / 2).ToList();
                StdDeviationFactorComboBox.ItemsSource = halfStdDevs;
                StdDeviationFactorComboBox.SelectedItem = 2.0;
            }
            catch (Exception e)
            {
                await Application.Current.MainPage.DisplayAlert("Error", e.ToString(), "OK");
            }
        }

        private void ApplyRgbRendererButton_Clicked(object sender, EventArgs e)
        {
            // Create the correct type of StretchParameters with the corresponding user inputs.
            StretchParameters stretchParameters = null;

            // See which type is selected and apply the corresponding input parameters to create the renderer.
            switch (StretchTypeComboBox.SelectedItem.ToString())
            {
                case "Min Max":
                    // Read the minimum and maximum values for the red, green, and blue bands.
                    double minRed = Convert.ToDouble(MinRedComboBox.SelectedItem);
                    double minGreen = Convert.ToDouble(MinGreenComboBox.SelectedItem);
                    double minBlue = Convert.ToDouble(MinBlueComboBox.SelectedItem);
                    double maxRed = Convert.ToDouble(MaxRedComboBox.SelectedItem);
                    double maxGreen = Convert.ToDouble(MaxGreenComboBox.SelectedItem);
                    double maxBlue = Convert.ToDouble(MaxBlueComboBox.SelectedItem);

                    // Create an array of the minimum and maximum values.
                    double[] minValues = { minRed, minGreen, minBlue };
                    double[] maxValues = { maxRed, maxGreen, maxBlue };

                    // Create a new MinMaxStretchParameters with the values.
                    stretchParameters = new MinMaxStretchParameters(minValues, maxValues);
                    break;

                case "Percent Clip":
                    // Get the percentile cutoff below which values in the raster dataset are to be clipped.
                    double minimumPercent = MinimumValueSlider.Value;

                    // Get the percentile cutoff above which pixel values in the raster dataset are to be clipped.
                    double maximumPercent = MaximumValueSlider.Value;

                    // Create a new PercentClipStretchParameters with the inputs.
                    stretchParameters = new PercentClipStretchParameters(minimumPercent, maximumPercent);
                    break;

                case "Standard Deviation":
                    // Read the standard deviation factor (the number of standard deviations used to define the range of pixel values).
                    double standardDeviationFactor = Convert.ToDouble(StdDeviationFactorComboBox.SelectedItem);

                    // Create a new StandardDeviationStretchParameters with the selected number of standard deviations.
                    stretchParameters = new StandardDeviationStretchParameters(standardDeviationFactor);
                    break;
            }

            // Create an array to specify the raster bands (red, green, blue).
            int[] bands = { 0, 1, 2 };

            // Create the RgbRenderer with the stretch parameters created above, then apply it to the raster layer.
            RgbRenderer rasterRenderer = new RgbRenderer(stretchParameters, bands, null, true);
            _rasterLayer.Renderer = rasterRenderer;
        }

        private void StretchTypeSelectionChanged(object sender, EventArgs e)
        {
            // Hide all UI controls for the input parameters.
            MinMaxParameters.IsVisible = false;
            PercentClipParameters.IsVisible = false;
            StdDeviationParameters.IsVisible = false;

            // See which type was selected and show the corresponding input controls.
            switch (StretchTypeComboBox.SelectedItem.ToString())
            {
                case "Min Max":
                    MinMaxParameters.IsVisible = true;
                    break;

                case "Percent Clip":
                    PercentClipParameters.IsVisible = true;
                    break;

                case "Standard Deviation":
                    StdDeviationParameters.IsVisible = true;
                    break;
            }
        }

        private static string GetRasterPath()
        {
            return DataManager.GetDataFolder("7c4c679ab06a4df19dc497f577f111bd", "raster-file", "Shasta.tif");
        }
    }
}
