Select features in scene layer

View on GitHub

Identify features in a scene to select.

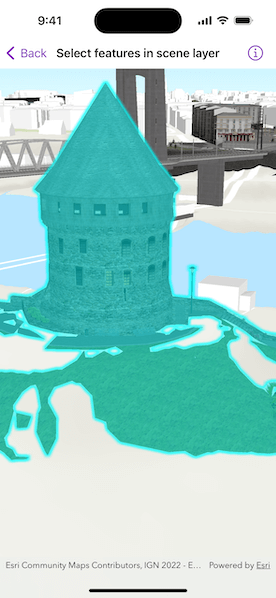

Screenshot of Select features in scene layer sample

Use case

You can select features to visually distinguish them with a selection color or highlighting. This can be useful to demonstrate the physical extent or associated attributes of a feature, or to initiate another action such as centering that feature in the scene view.

How to use the sample

Tap on a building in the scene layer to select it. Deselect buildings by tapping away from the buildings.

How it works

  1. Create an instance of ArcGISSceneLayer, passing in the URL to a scene layer service.
  2. Use the onSingleTapGesture on the SceneView to get the screen tapped location.
  3. Use SceneViewProxy.identify(layer:screenPoint:tolerance:maximumResults:) to identify features in the scene.
  4. From the resulting IdentifyLayerResult, get the list of identified GeoElements.
  5. Get the first Feature in the list and use ArcGISSceneLayer.selectFeature(features:).

Relevant API

  • ArcGISSceneLayer
  • Scene
  • SceneView
  • SceneViewProxy
  • SceneViewReader

About the data

This sample shows a Brest France Buildings Scene hosted on ArcGIS Online.

Tags

3D, buildings, identify, model, query, search, select

Sample Code

SelectFeaturesInSceneLayerView.swift
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
// Copyright 2024 Esri
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
//   https://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.

import ArcGIS
import SwiftUI

struct SelectFeaturesInSceneLayerView: View {
    /// The error shown in the error alert.
    @State private var error: Error?

    /// The point on the screen where the user tapped.
    @State private var tapPoint: CGPoint?

    /// The scene layer that is added on top of the scene.
    @State private var sceneLayer = ArcGISSceneLayer(url: .brestBuildingService)

    /// A scene with topographic basemap and a 3D buildings layer.
    @State private var scene: ArcGIS.Scene = {
        // Creates a scene and sets an initial viewpoint.
        let scene = Scene(basemapStyle: .arcGISTopographic)
        // Sets an initial camera location.
        let camera = Camera(
            latitude: 48.38282,
            longitude: -4.49779,
            altitude: 40,
            heading: 41.65,
            pitch: 71.2,
            roll: 0
        )
        // Sets initial viewpoint to camera position at point.
        scene.initialViewpoint = Viewpoint(boundingGeometry: camera.location, camera: camera)
        // Creates a surface and adds an elevation source.
        let surface = Surface()
        surface.addElevationSource(ArcGISTiledElevationSource(url: .worldElevationService))
        // Sets the surface to the scene's base surface.
        scene.baseSurface = surface
        return scene
    }()

    /// Adds feature layer to scene in initialization.
    init() {
        scene.addOperationalLayer(sceneLayer)
    }

    var body: some View {
        SceneViewReader { sceneViewProxy in
            SceneView(scene: scene)
            // Captures location of tap on screen.
                .onSingleTapGesture { screenPoint, _ in
                    tapPoint = screenPoint
                }
                .task(id: tapPoint) {
                    // Clears the previous selections.
                    sceneLayer.clearSelection()
                    do {
                        guard let locationPoint = tapPoint else { return }
                        // Gets the identify results from the tap point.
                        let result = try await sceneViewProxy.identify(
                            on: sceneLayer,
                            screenPoint: locationPoint,
                            tolerance: 10
                        )
                        // Gets the first feature from the identify results.
                        guard let feature = result.geoElements.first as? ArcGISFeature else { return }
                        // Selects the feature in the scene layer.
                        sceneLayer.selectFeature(feature)
                    } catch {
                        self.error = error
                    }
                }
        }
        .errorAlert(presentingError: $error)
    }
}

private extension URL {
    /// The URL of a Brest, France buildings scene service.
    static var brestBuildingService: URL {
        URL(string: "https://tiles.arcgis.com/tiles/P3ePLMYs2RVChkJx/arcgis/rest/services/Buildings_Brest/SceneServer/layers/0")!
    }

    /// The URL of the Terrain 3D ArcGIS REST Service.
    static var worldElevationService: URL {
        URL(string: "https://elevation3d.arcgis.com/arcgis/rest/services/WorldElevation3D/Terrain3D/ImageServer")!
    }
}

#Preview {
    SelectFeaturesInSceneLayerView()
}
