Set spatial reference

View on GitHub

Specify a map's spatial reference.

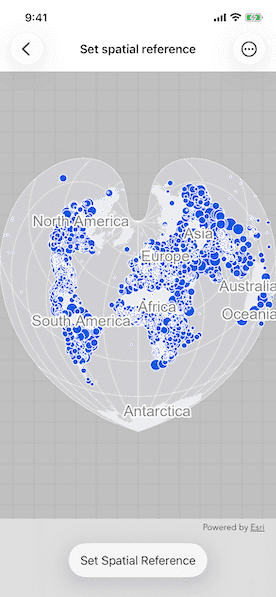

Image of Set spatial reference

Use case

Choosing the correct spatial reference is important for ensuring accurate projection of data points to a map.

How to use the sample

Pan and zoom around the map. Observe how the map is displayed using the World Bonne spatial reference.

How it works

  1. Instantiate a Map object using a spatial reference e.g. Map(spatialReference: SpatialReference(wkid: WKID(54024)).
  2. Instantiate a Basemap object using an ArcGISMapImageLayer object.
  3. Set the basemap to the map.
  4. Set the map to a MapView object.

The ArcGIS map image layer will now use the spatial reference set to the map (World Bonne (WKID: 54024)) and not its default spatial reference.

Relevant API

  • ArcGISMapImageLayer
  • Basemap
  • Map
  • MapView
  • SpatialReference

Additional information

Operational layers will automatically project to this spatial reference when possible.

Tags

project, WKID

Sample Code

SetSpatialReferenceView.swift
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
//  Copyright © 2024 Esri. All rights reserved.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
//   https://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.

import ArcGIS
import SwiftUI

struct SetSpatialReferenceView: View {
    /// A map with spatial reference and a basemap.
    @State private var map: Map = {
        let map = Map(spatialReference: .worldBonne)
        map.basemap = Basemap(
            baseLayer: ArcGISMapImageLayer(url: .worldCities)
        )
        return map
    }()

    var body: some View {
        MapView(map: map)
    }
}

private extension SpatialReference {
    /// The spatial reference for the sample, World Bonne (WKID: 54024).
    static var worldBonne: Self { SpatialReference(wkid: WKID(54024)!)! }
}

private extension URL {
    /// The URL to the World Cities map service for the image layer.
    static var worldCities: URL {
        URL(string: "https://sampleserver6.arcgisonline.com/arcgis/rest/services/SampleWorldCities/MapServer")!
    }
}

#Preview {
    SetSpatialReferenceView()
}
