Show grid

View on GitHub

Display coordinate system grids including latitude-longitude, MGRS, UTM and USNG on a map view. Also, toggle label visibility and change the color of grid lines and grid labels.

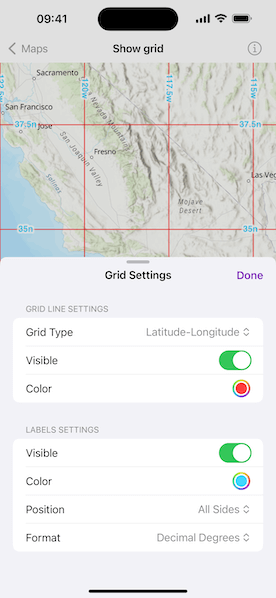

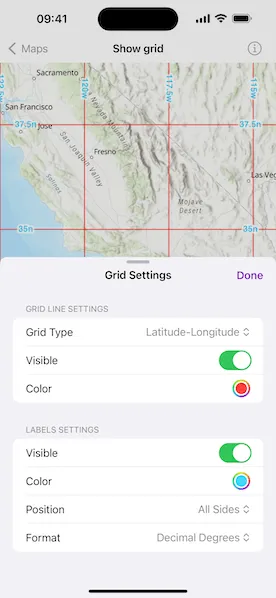

Image of Show grid sample

Use case

Grids are often used on printed maps, but can also be helpful on digital maps, to identify locations on a map.

How to use the sample

Tap the button in the toolbar to open the grid settings view. You can select type of grid from grid types (LatLong, MGRS, UTM and USNG) and modify its properties like grid visibility, grid color, label visibility, label color, label position, label format and label unit.

How it works

Create an instance of one of the Grid types.
Grid lines and labels can be styled per grid level with grid.lineSymbols[0] and grid.textSymbols[0] subscripts on the grid.
The label position, format, unit and visibility can be specified with labelPosition, labelFormat, labelUnit and isVisible on the Grid.
For the LatitudeLongitudeGrid type, you can specify a label format of decimalDegrees or degreesMinutesSeconds.
To set the grid, assign it to the map view using the grid(_:) modifier.

Relevant API

Grid
LatitudeLongitudeGrid
MapView
MGRSGrid
SimpleLineSymbol
TextSymbol
USNGGrid
UTMGrid

Sample Code

ShowGridView.swift
Use dark colors for code blocksCopy
// Copyright 2024 Esri
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
//   https://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.

import ArcGIS
import SwiftUI

struct ShowGridView: View {
    /// The view model for the sample.
    @StateObject private var model = Model()

    /// A Boolean value indicating whether the settings view should be presented.
    @State private var showsGridSettingsView = false

    var body: some View {
        MapView(map: model.map)
            .grid(model.grid)
            .toolbar {
                ToolbarItem(placement: .bottomBar) {
                    Button("Grid Settings") {
                        showsGridSettingsView = true
                    }
                    .popover(isPresented: $showsGridSettingsView) {
                        NavigationStack {
                            GridSettingsView(model: model)
                        }
                        .presentationDetents([.fraction(0.6), .large])
                        .frame(idealWidth: 350, idealHeight: 480)
                    }
                }
            }
    }
}

private extension ShowGridView {
    // MARK: - Model

    /// The view model for the sample.
    final class Model: ObservableObject {
        /// A map with topographic basemap.
        let map: Map = {
            let map = Map(basemapStyle: .arcGISTopographic)
            map.initialViewpoint = Viewpoint(latitude: 34.05, longitude: -118.25, scale: 8e6)
            return map
        }()

        /// The map view's grid, initially set to a Lat-Lon grid.
        @Published var grid: ArcGIS.Grid = LatitudeLongitudeGrid()

        /// The kind of grid to display.
        @Published var gridType: GridType = .latitudeLongitude {
            didSet { grid = makeGrid(type: gridType) }
        }

        /// The format used for labeling the grid.
        @Published var labelFormat: LatitudeLongitudeGrid.LabelFormat = .decimalDegrees

        /// The units used for labeling the USNG grid.
        @Published var usngLabelUnit: USNGGrid.LabelUnit = .kilometersMeters

        /// The units used for labeling the MGRS grid.
        @Published var mgrsLabelUnit: MGRSGrid.LabelUnit = .kilometersMeters

        /// Creates a new grid of a given type.
        /// - Parameter gridType: The kind of grid to make.
        /// - Returns: A new `Grid` object.
        private func makeGrid(type gridType: GridType) -> ArcGIS.Grid {
            let newGrid: ArcGIS.Grid
            switch gridType {
            case .latitudeLongitude:
                let latitudeLongitudeGrid = LatitudeLongitudeGrid()
                latitudeLongitudeGrid.labelFormat = labelFormat
                newGrid = latitudeLongitudeGrid
            case .mgrs:
                let mgrsGrid = MGRSGrid()
                mgrsGrid.labelUnit = mgrsLabelUnit
                newGrid = mgrsGrid
            case .usng:
                let usngGrid = USNGGrid()
                usngGrid.labelUnit = usngLabelUnit
                newGrid = usngGrid
            case .utm:
                newGrid = UTMGrid()
            }

            newGrid.isVisible = grid.isVisible
            newGrid.labelsAreVisible = grid.labelsAreVisible
            newGrid.linesColor = grid.linesColor
            newGrid.labelsColor = grid.labelsColor
            newGrid.labelPosition = grid.labelPosition

            return newGrid
        }
    }

    // MARK: - Settings View

    struct GridSettingsView: View {
        /// The action to dismiss the sheet.
        @Environment(\.dismiss) private var dismiss

        /// The view model for the sample.
        @ObservedObject var model: Model

        var body: some View {
            Form {
                Section("Grid Line Settings") {
                    Picker("Grid Type", selection: $model.gridType) {
                        ForEach(GridType.allCases, id: \.self) { type in
                            Text(type.label)
                        }
                    }

                    Toggle("Visible", isOn: $model.grid.isVisible)

                    ColorPicker("Color", selection: $model.grid.linesColor)
                }

                Section("Labels Settings") {
                    Toggle("Visible", isOn: $model.grid.labelsAreVisible)

                    ColorPicker("Color", selection: $model.grid.labelsColor)

                    Picker("Position", selection: $model.grid.labelPosition) {
                        ForEach(Grid.LabelPosition.allCases, id: \.self) { position in
                            Text(position.label)
                        }
                    }

                    if let latitudeLongitudeGrid = model.grid as? LatitudeLongitudeGrid {
                        Picker("Format", selection: $model.labelFormat) {
                            ForEach(LatitudeLongitudeGrid.LabelFormat.allCases, id: \.self) { format in
                                Text(format.label)
                            }
                        }
                        .onChange(of: model.labelFormat) { newLabelFormat in
                            latitudeLongitudeGrid.labelFormat = newLabelFormat
                        }
                    } else if let mgrsGrid = model.grid as? MGRSGrid {
                        Picker("Unit", selection: $model.mgrsLabelUnit) {
                            ForEach(MGRSGrid.LabelUnit.allCases, id: \.self) { unit in
                                Text(unit.label)
                            }
                        }
                        .onChange(of: model.mgrsLabelUnit) { newMGRSLabelUnit in
                            mgrsGrid.labelUnit = newMGRSLabelUnit
                        }
                    } else if let usngGrid = model.grid as? USNGGrid {
                        Picker("Unit", selection: $model.usngLabelUnit) {
                            ForEach(USNGGrid.LabelUnit.allCases, id: \.self) { unit in
                                Text(unit.label)
                            }
                        }
                        .onChange(of: model.usngLabelUnit) { newUSNGLabelUnit in
                            usngGrid.labelUnit = newUSNGLabelUnit
                        }
                    }
                }
            }
            .navigationTitle("Grid Settings")
            .navigationBarTitleDisplayMode(.inline)
            .toolbar {
                ToolbarItem(placement: .confirmationAction) {
                    Button("Done") { dismiss() }
                }
            }
        }
    }
}

// MARK: - Helper Extensions

private extension ArcGIS.Grid {
    /// The color of the grid lines.
    var linesColor: Color {
        get {
            let lineSymbol = lineSymbols.first(where: { $0 is LineSymbol }) as! LineSymbol
            return Color(uiColor: lineSymbol.color)
        }
        set {
            for symbol in lineSymbols where symbol is LineSymbol {
                let lineSymbol = symbol as! LineSymbol
                lineSymbol.color = UIColor(newValue)
            }
        }
    }

    /// The color of the grid labels.
    var labelsColor: Color {
        get {
            let textSymbol = textSymbols.first(where: { $0 is TextSymbol }) as! TextSymbol
            return Color(uiColor: textSymbol.color)
        }
        set {
            for symbol in textSymbols where symbol is TextSymbol {
                let textSymbol = symbol as! TextSymbol
                textSymbol.color = UIColor(newValue)
            }
        }
    }
}

private extension ShowGridView {
    /// The kinds of grid to show in a map view.
    enum GridType: CaseIterable {
        case latitudeLongitude, mgrs, usng, utm

        var label: String {
            switch self {
            case .latitudeLongitude: "Latitude-Longitude"
            case .mgrs: "MGRS"
            case .usng: "USNG"
            case .utm: "UTM"
            }
        }
    }
}

private extension ArcGIS.Grid.LabelPosition {
    static var allCases: [Self] {
        return [
            .allSides,
            .center,
            .topLeft,
            .topRight,
            .bottomLeft,
            .bottomRight,
            .geographic
        ]
    }

    var label: String {
        switch self {
        case .geographic: "Geographic"
        case .bottomLeft: "Bottom Left"
        case .bottomRight: "Bottom Right"
        case .topLeft: "Top Left"
        case .topRight: "Top Right"
        case .center: "Center"
        case .allSides: "All Sides"
        @unknown default: fatalError("Unknown grid label position")
        }
    }
}

private extension LatitudeLongitudeGrid.LabelFormat {
    static var allCases: [Self] { [.decimalDegrees, .degreesMinutesSeconds] }

    var label: String {
        switch self {
        case .decimalDegrees: "Decimal Degrees"
        case .degreesMinutesSeconds: "Degrees, Minutes, Seconds"
        @unknown default: fatalError("Unknown Lat-Lon grid label format")
        }
    }
}

private extension MGRSGrid.LabelUnit {
    static var allCases: [Self] { [.kilometersMeters, .meters] }

    var label: String {
        switch self {
        case .kilometersMeters: "Kilometers or Meters"
        case .meters: "Meters"
        @unknown default: fatalError("Unknown MGRS grid label unit")
        }
    }
}

private extension USNGGrid.LabelUnit {
    static var allCases: [Self] { [.kilometersMeters, .meters] }

    var label: String {
        switch self {
        case .kilometersMeters: "Kilometers or Meters"
        case .meters: "Meters"
        @unknown default: fatalError("Unknown USNG grid label unit")
        }
    }
}

// MARK: - Preview

#Preview {
    ShowGridView()
}
