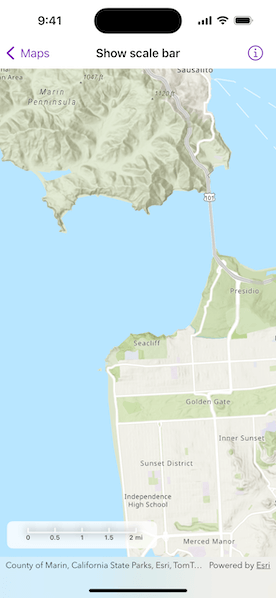

Show scale bar

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
// Copyright 2024 Esri
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
//   https://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.

import ArcGIS
import ArcGISToolkit
import SwiftUI

struct ShowScaleBarView: View {
    /// The height of the map view's attribution bar.
    @State private var attributionBarHeight = 0.0

    /// Allows for communication between the `Scalebar` and `MapView`.
    @State private var spatialReference: SpatialReference?

    /// Allows for communication between the `Scalebar` and `MapView`.
    @State private var unitsPerPoint: Double?

    /// The maximum screen width allotted to the scalebar.
    private let maxWidth = 175.0

    /// Allows for communication between the `Scalebar` and `MapView`.
    @State private var viewpoint: Viewpoint?

    /// The location of the scalebar on screen.
    private let alignment: Alignment = .bottomLeading

    /// A map with a topographic style.
    @State private var map: Map = {
        let map = Map(basemapStyle: .arcGISTopographic)
        // Creates an initial viewpoint with a coordinate point
        // centered on San Francisco's Golden Gate Bridge.
        map.initialViewpoint = Viewpoint(
            center: Point(x: -13637000, y: 4550000, spatialReference: .webMercator),
            scale: 100_000
        )
        return map
    }()

    /// The `ScalebarSettings` add the shadow to the scale bar.
    @State private var scaleBarSettings: ScalebarSettings = {
        let settings = ScalebarSettings(
            shadowColor: Color.black,
            shadowRadius: 6
        )
        return settings
    }()

    var body: some View {
        MapView(map: map)
            .onAttributionBarHeightChanged { newHeight in
                withAnimation { attributionBarHeight = newHeight }
            }
            .onSpatialReferenceChanged { spatialReference = $0 }
            .onUnitsPerPointChanged { unitsPerPoint = $0 }
            .onViewpointChanged(kind: .centerAndScale) { viewpoint = $0 }
            .overlay(alignment: alignment) {
                Scalebar(
                    maxWidth: maxWidth,
                    settings: scaleBarSettings,
                    spatialReference: spatialReference,
                    style: .graduatedLine,
                    unitsPerPoint: unitsPerPoint,
                    viewpoint: viewpoint
                )
                // The styling around scale bar.
                .padding([.leading, .trailing], 20)
                .padding([.horizontal, .vertical], 10)
                .background(Color.white)
                .opacity(0.8)
                .clipShape(.rect(cornerRadius: 8))
                .padding(.vertical, 10 + attributionBarHeight)
                .padding(10)
            }
    }
}

#Preview {
    ShowScaleBarView()
}
