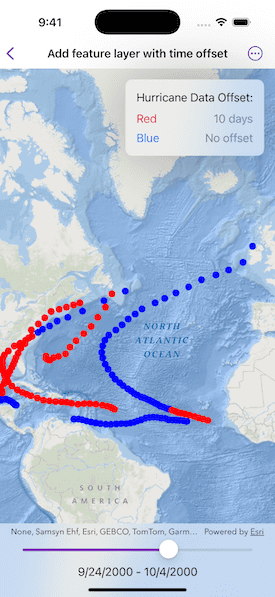

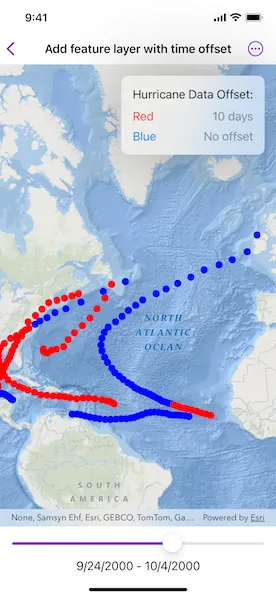

Add feature layer with time offset

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
// Copyright 2025 Esri
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
//   https://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.

import ArcGIS
import SwiftUI

struct AddFeatureLayerWithTimeOffsetView: View {
    /// A map with an oceans basemap and hurricane layers.
    @State private var map: Map = {
        // Makes a new map with an oceans basemap style.
        let map = Map(basemapStyle: .arcGISOceans)

        // Makes the hurricanes feature layer with no offset.
        let noOffsetLayer = FeatureLayer(featureTable: ServiceFeatureTable(url: .hurricanesService))

        // Applies a blue dot renderer to distinguish hurricanes without offset.
        noOffsetLayer.renderer = SimpleRenderer(symbol: SimpleMarkerSymbol(style: .circle, color: .blue, size: 10))

        // Makes the offset hurricanes feature layer.
        let withOffsetLayer = FeatureLayer(featureTable: ServiceFeatureTable(url: .hurricanesService))

        // Applies a red dot renderer to distinguish the hurricanes with an offset.
        withOffsetLayer.renderer = SimpleRenderer(symbol: SimpleMarkerSymbol(style: .circle, color: .red, size: 10))

        // Sets the time offset on the layer.
        withOffsetLayer.timeOffset = TimeValue(duration: 10.0, unit: .days)

        // Adds the layers to the map.
        map.addOperationalLayers([noOffsetLayer, withOffsetLayer])

        // Sets the initial viewpoint of the map.
        map.initialViewpoint = Viewpoint(latitude: 45.0, longitude: -45.0, scale: 9e7)

        return map
    }()

    /// The time extent of the map view.
    @State private var timeExtent: TimeExtent? = TimeExtent(
        startDate: .august4th2000,
        endDate: Calendar.current.date(byAdding: .day, value: 10, to: .august4th2000)
    )

    /// The value of the slider.
    @State private var sliderValue = 0.0

    /// The maximum value of the slider.
    private let sliderMaxValue = Double(
        Calendar.current.dateComponents([.day], from: Date.august4th2000, to: Date.october22nd2000).day!
    )

    /// The format style used to display the extent dates.
    private let dateFormat = Date.FormatStyle(date: .numeric, time: .omitted)

    var body: some View {
        MapView(map: map, timeExtent: $timeExtent)
            .overlay(alignment: .topTrailing) {
                VStack(alignment: .leading) {
                    Text("Hurricane Data Offset:")
                    LabeledContent {
                        Text("10 days")
                    } label: {
                        Text("Red").foregroundStyle(.red)
                    }
                    LabeledContent {
                        Text("No offset")
                    } label: {
                        Text("Blue").foregroundStyle(.blue)
                    }
                }
                .fixedSize()
                .padding()
                .background(.thinMaterial)
                .clipShape(.rect(cornerRadius: 10))
                .shadow(radius: 50)
                .padding()
            }
            .toolbar {
                ToolbarItem(placement: .bottomBar) {
                    VStack {
                        Slider(value: $sliderValue, in: 0...sliderMaxValue, step: 1)
                            .padding(.horizontal)
                            .onChange(of: sliderValue) {
                                // Calculates a new time extent when the slider value changes.
                                guard let newStartDate = Calendar.current.date(
                                        byAdding: .day,
                                        value: Int(sliderValue),
                                        to: .august4th2000
                                      ),
                                      let newEndDate = Calendar.current.date(
                                        byAdding: .day,
                                        value: 10,
                                        to: newStartDate
                                      ) else {
                                    return
                                }
                                timeExtent = TimeExtent(startDate: newStartDate, endDate: newEndDate)
                            }
                        Text(
                            """
                            \(timeExtent?.startDate?.formatted(dateFormat) ?? "") - \
                            \(timeExtent?.endDate?.formatted(dateFormat) ?? "")
                            """
                        )
                    }
                }
            }
    }
}

private extension URL {
    static let hurricanesService = URL(
        string: "https://sampleserver6.arcgisonline.com/arcgis/rest/services/Hurricanes/MapServer/0"
    )!
}

private extension Date {
    static let august4th2000 = Calendar.current.date(from: DateComponents(year: 2000, month: 8, day: 4))!
    static let october22nd2000 = Calendar.current.date(from: DateComponents(year: 2000, month: 10, day: 22))!
}

#Preview {
    AddFeatureLayerWithTimeOffsetView()
}
