Change the appearance of a 3D object scene layer with different renderers.
Use case
A scene layer of 3D buildings hosted on ArcGIS Online comes with a preset renderer that defines how the buildings are displayed in the application. However, the fill color may sometimes blend into the basemap, making the buildings difficult to distinguish. To enhance visualization, you can apply a custom renderer with a more contrasting fill color, helping the 3D buildings stand out more clearly. Additionally, you can use a unique value renderer to represent different building uses, or a class breaks renderer to visualize building ages - valuable insights for urban planning and analysis.
How to use the sample

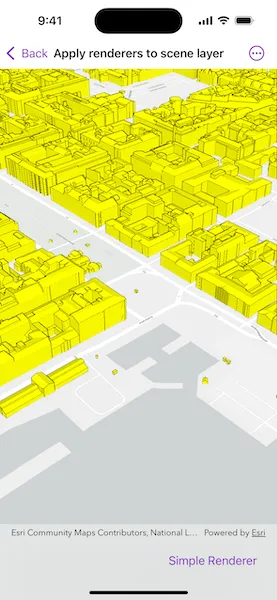

Wait for the scene layer to load. The original scene layer displays 3D textured buildings. Tap on the renderer picker and choose a different renderer to change how the buildings are visualized. Each renderer applies different symbology to the scene layer. Setting the renderer to nil will remove any applied symbology, reverting the buildings to their original textured appearance.
How it works
- Create an
ArcGISSceneLayerfrom a service URL. - Add the scene layer to an
Sceneand display it in aSceneView. - Create different renderers:
- A
SimpleRendererwith aMultilayerMeshSymboland a fill color and edges. - A
UniqueValueRendererusing a string field and differentMultilayerMeshSymbolfor each unique value of the building usage. - A
ClassBreaksRendererusing a numeric field and differentMultilayerMeshSymbolfor each value range of the year the building was completed.
- A
- Set the scene layer's
rendererproperty to the selected renderer. - Set the scene layer's
rendererproperty tonil, resulting in displaying the original texture of the buildings.
Relevant API
- ArcGISSceneLayer
- ClassBreaksRenderer
- MaterialFillSymbolLayer
- MultilayerMeshSymbol
- SceneView
- SimpleRenderer
- SymbolLayerEdges3D
- UniqueValueRenderer
About the data
This sample displays a Helsinki 3D buildings scene hosted on ArcGIS Online, showing 3D textured buildings in Helsinki, Finland.
Tags
3D, buildings, renderer, scene layer, symbology, visualization
Sample Code
ApplyRenderersToSceneLayerView.swift
// Copyright 2025 Esri
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
// https://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
import ArcGIS
import SwiftUI
struct ApplyRenderersToSceneLayerView: View {
/// Renderer type selected by the user.
@State private var rendererSelection: RendererType = .none
/// Scene layer for Helsinki scene.
private var sceneLayer: ArcGISSceneLayer {
scene.operationalLayers.first as! ArcGISSceneLayer
}
/// Scene with elevation layer and viewpoint centered on Helsinki.
@State private var scene: ArcGIS.Scene = {
let scene = Scene(basemapStyle: .arcGISLightGray)
// Creates the surface and adds it to the scene.
let surface = Surface()
surface.addElevationSource(
ArcGISTiledElevationSource(
url: .worldElevationService
)
)
scene.baseSurface = surface
scene.initialViewpoint = Viewpoint(
latitude: .nan,
longitude: .nan,
scale: .nan,
camera: Camera(
location: .helsinkiCenter,
heading: 308.9,
pitch: 50.7,
roll: 0.0
)
)
scene.addOperationalLayer(ArcGISSceneLayer(url: .helsinkiScene))
return scene
}()
/// Simple renderer that adds yellow mesh to buildings.
@State private var simpleRenderer: SimpleRenderer = {
let materialFillSymbolLayer = MaterialFillSymbolLayer(
color: .yellow
)
materialFillSymbolLayer.colorMixMode = .replace
materialFillSymbolLayer.edges = SymbolLayerEdges3D(
color: .black,
width: 0.5
)
let meshSymbol = MultilayerMeshSymbol(
symbolLayer: materialFillSymbolLayer
)
return SimpleRenderer(symbol: meshSymbol)
}()
/// Renderer that provides color depending on building usage (i.e. commercial, residential).
@State private var uniqueValueRenderer: UniqueValueRenderer = {
UniqueValueRenderer(
fieldNames: ["usage"],
uniqueValues: [
.commercial,
.residential,
.otherUsage
],
defaultSymbol: MultilayerMeshSymbol(
symbolLayer: MaterialFillSymbolLayer(
color: UIColor(
red: 230 / 255,
green: 230 / 255,
blue: 230 / 255,
alpha: 1.0
)
)
)
)
}()
/// A class breaks renderer that categorizes data based on 'yearCompleted' values.
@State private var classBreaksRenderer: ClassBreaksRenderer = {
ClassBreaksRenderer(
fieldName: "yearCompleted",
classBreaks: [
.before1900,
.from1900to1956,
.from1957to2000,
.after2000
]
)
}()
var body: some View {
SceneView(scene: scene)
.toolbar {
ToolbarItem(placement: .bottomBar) {
Picker("Renderer selected", selection: $rendererSelection) {
ForEach(RendererType.allCases, id: \.self) { renderer in
Text(renderer.label)
}
}
.onChange(of: rendererSelection) {
// Update the renderer based on selection.
switch rendererSelection {
case .none:
sceneLayer.renderer = nil
case .simpleRenderer:
sceneLayer.renderer = simpleRenderer
case .uniqueValueRenderer:
sceneLayer.renderer = uniqueValueRenderer
case .classBreaksRenderer:
sceneLayer.renderer = classBreaksRenderer
}
}
}
}
}
}
/// Enum to manage available renderer options in the Picker.
private enum RendererType: CaseIterable {
case none
case simpleRenderer
case uniqueValueRenderer
case classBreaksRenderer
var label: String {
switch self {
case .none:
return "None"
case .simpleRenderer:
return "Simple Renderer"
case .uniqueValueRenderer:
return "Unique Value Renderer"
case .classBreaksRenderer:
return "Class Breaks Renderer"
}
}
}
// Defines custom color and symbol for different ranges of 'yearCompleted'.
private extension ClassBreak {
static var before1900: ClassBreak {
ClassBreak(
description: "before 1900",
label: "before 1900",
minValue: 1725,
maxValue: 1900,
symbol: {
let symbolLayer = MaterialFillSymbolLayer(
color: UIColor(
red: 230 / 255,
green: 238 / 255,
blue: 207 / 255,
alpha: 1.0
)
)
symbolLayer.colorMixMode = .tint
return MultilayerMeshSymbol(symbolLayer: symbolLayer)
}()
)
}
static var from1900to1956: ClassBreak {
ClassBreak(
description: "1900 - 1956",
label: "1900 - 1956",
minValue: 1900,
maxValue: 1957,
symbol: {
let symbolLayer = MaterialFillSymbolLayer(
color: UIColor(
red: 155 / 255,
green: 196 / 255,
blue: 193 / 255,
alpha: 1.0
)
)
symbolLayer.colorMixMode = .tint
return MultilayerMeshSymbol(symbolLayer: symbolLayer)
}()
)
}
static var from1957to2000: ClassBreak {
ClassBreak(
description: "1957 - 2000",
label: "1957 - 2000",
minValue: 1957,
maxValue: 2000,
symbol: {
let symbolLayer = MaterialFillSymbolLayer(
color: UIColor(
red: 105 / 255,
green: 168 / 255,
blue: 183 / 255,
alpha: 1.0
)
)
symbolLayer.colorMixMode = .tint
return MultilayerMeshSymbol(symbolLayer: symbolLayer)
}()
)
}
static var after2000: ClassBreak {
ClassBreak(
description: "after 2000",
label: "after 2000",
minValue: 2000,
maxValue: 3000,
symbol: {
let symbolLayer = MaterialFillSymbolLayer(
color: UIColor(
red: 75 / 255,
green: 126 / 255,
blue: 152 / 255,
alpha: 1.0
)
)
symbolLayer.colorMixMode = .tint
return MultilayerMeshSymbol(symbolLayer: symbolLayer)
}()
)
}
}
// Defines unique value symbols for building usage types.
private extension UniqueValue {
static var commercial: UniqueValue {
UniqueValue(
description: "commercial buildings",
label: "commercial buildings",
symbol: MultilayerMeshSymbol(
symbolLayer: MaterialFillSymbolLayer(
color: UIColor(
red: 245 / 255,
green: 213 / 255,
blue: 169 / 255,
alpha: 200.0 / 255
)
)
),
values: ["general or commercial"]
)
}
static var residential: UniqueValue {
UniqueValue(
description: "residential buildings",
label: "residential buildings",
symbol: MultilayerMeshSymbol(
symbolLayer: MaterialFillSymbolLayer(
color: UIColor(
red: 210 / 255,
green: 254 / 255,
blue: 208 / 255,
alpha: 1.0
)
)
),
values: ["residential"]
)
}
static var otherUsage: UniqueValue {
UniqueValue(
description: "other",
label: "other",
symbol: MultilayerMeshSymbol(
symbolLayer: MaterialFillSymbolLayer(
color: UIColor(
red: 253 / 255,
green: 198 / 255,
blue: 227 / 255,
alpha: 150.0 / 255
)
)
),
values: ["other"]
)
}
}
private extension Point {
/// Predefined geometry point for Helsinki city center.
static var helsinkiCenter: Point {
Point(
x: 2778453.8008,
y: 8436451.3882,
z: 387.4524,
spatialReference: .webMercator
)
}
}
// Scene and elevation data sources.
private extension URL {
static var helsinkiScene: URL {
URL(string: "https://www.arcgis.com/home/item.html?id=fdfa7e3168e74bf5b846fc701180930b")!
}
static var worldElevationService: URL {
URL(string: "https://elevation3d.arcgis.com/arcgis/rest/services/WorldElevation3D/Terrain3D/ImageServer")!
}
}
#Preview {
ApplyRenderersToSceneLayerView()
}
