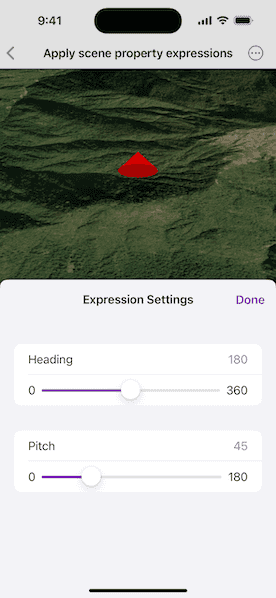

Apply scene property expressions

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
// Copyright 2025 Esri
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
//   https://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.

import ArcGIS
import SwiftUI

struct ApplyScenePropertyExpressionsView: View {
    /// The scene that displays in the scene view.
    @State private var scene: ArcGIS.Scene = {
        let scene = Scene(basemapStyle: .arcGISImageryStandard)

        // Give the scene an initial viewpoint.
        let point = Point(x: 83.9, y: 28.4, z: 1000, spatialReference: .wgs84)
        scene.initialViewpoint = Viewpoint(
            latitude: .nan,
            longitude: .nan,
            scale: .nan,
            camera: .init(lookingAt: point, distance: 1000, heading: 0, pitch: 50, roll: 0)
        )

        return scene
    }()

    /// The graphics overlay that we will display a cone graphic in.
    @State private var graphicsOverlay = {
        // Create a graphics overlay to hold our graphic.
        let overlay = GraphicsOverlay()
        overlay.sceneProperties.surfacePlacement = .relative

        // Create a renderer for our graphics overlay and setup the heading
        // and pitch expressions that will be used to adjust the heading
        // and pitch of each graphic in the overlay. These expressions will
        // be calculated based on the corresponding values in the graphic's
        // attribute dictionary.
        let renderer = SimpleRenderer()
        renderer.sceneProperties.headingExpression = "[HEADING]"
        renderer.sceneProperties.pitchExpression = "[PITCH]"
        overlay.renderer = renderer

        // Create a cone symbol.
        let symbol = SimpleMarkerSceneSymbol.cone(
            color: .red,
            diameter: 100,
            height: 100
        )

        // Create a graphic, setting initial heading and pitch in the
        // attributes.
        let graphic = Graphic(
            geometry: Point(x: 83.9, y: 28.42, z: 200, spatialReference: .wgs84),
            attributes: [
                "HEADING": 180.0,
                "PITCH": 45.0
            ],
            symbol: symbol
        )

        // Add the graphic to the overlay and return the overlay.
        overlay.addGraphic(graphic)
        return overlay
    }()

    /// A Boolean value indicating if the settings pane is displayed.
    @State private var isSettingsPresented = false

    /// The heading of the cone.
    @State private var heading = 0.0

    /// The pitch of the cone.
    @State private var pitch = 0.0

    /// The cone graphic.
    private var coneGraphic: Graphic {
        graphicsOverlay.graphics[0]
    }

    var body: some View {
        SceneView(
            scene: scene,
            graphicsOverlays: [graphicsOverlay]
        )
        .toolbar {
            ToolbarItem(placement: .bottomBar) {
                Button("Settings") {
                    isSettingsPresented = true
                }
                .popover(isPresented: $isSettingsPresented) {
                    NavigationStack {
                        // The settings pane to adjust the symbology heading and pitch.
                        Form {
                            Section {
                                LabeledContent("Heading", value: heading, format: .number)
                                Slider(value: $heading, in: 0...360, step: 1) {
                                    Text("Heading")
                                } minimumValueLabel: {
                                    Text("0")
                                } maximumValueLabel: {
                                    Text("360")
                                }
                            }
                            Section {
                                LabeledContent("Pitch", value: pitch, format: .number)
                                Slider(value: $pitch, in: 0...180, step: 1) {
                                    Text("Pitch")
                                } minimumValueLabel: {
                                    Text("0")
                                } maximumValueLabel: {
                                    Text("180")
                                }
                            }
                        }
                        .toolbar {
                            ToolbarItem(placement: .confirmationAction) {
                                Button("Done") { isSettingsPresented = false }
                            }
                        }
                        .navigationTitle("Expression Settings")
                        .navigationBarTitleDisplayMode(.inline)
                    }
                    .presentationDetents([.medium])
                    .frame(idealWidth: 320, idealHeight: 380)
                }
            }
        }
        .onAppear {
            // Sync view state with the graphic attributes on startup.
            heading = coneGraphic.attributes["HEADING"] as? Double ?? 0
            pitch = coneGraphic.attributes["PITCH"] as? Double ?? 0
        }
        // Sync view state with the graphic attributes on as it changes.
        .onChange(of: heading) { coneGraphic.setAttributeValue(heading, forKey: "HEADING") }
        .onChange(of: pitch) { coneGraphic.setAttributeValue(pitch, forKey: "PITCH") }
    }
}

#Preview {
    ApplyScenePropertyExpressionsView()
}
