Authenticate with Integrated Windows Authentication

View on GitHub

Connect to an IWA secured Portal and search for maps.

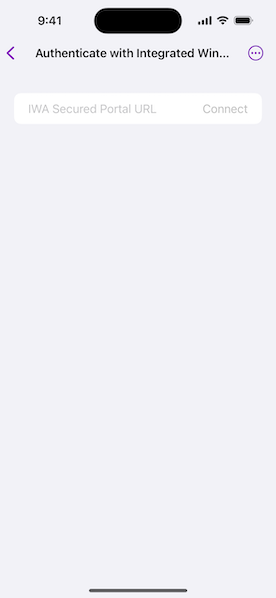

Image of authenticate with integrated windows authentication

Use case

Your organization might use Integrated Windows Authentication (IWA) to secure ArcGIS Enterprise. This can be useful because the same credentials used to log into your work computer and network can be used to authenticate with ArcGIS. IWA is built into Microsoft Internet Information Server (IIS) and works well for intranet applications but isn't always practical for internet apps.

How to use the sample

  1. Enter the URL to your IWA-secured portal.
  2. Click the connect button to search for web maps stored on the portal.
  3. You will be prompted for a user name, and password.
  4. If you authenticate successfully, portal item results will display in the list.
  5. Select a web map item to display it in the map view.

How it works

  1. The AuthenticationManager object is configured with a challenge handler that will prompt for a Windows login (username and password) if a secure resource is encountered.
  2. When a search for portal items is performed against an IWA-secured portal, the Authenticator creates a NetworkCredential from the information entered by the user.
  3. If the user authenticates, the search returns a list of web maps (PortalItem) and the user can select one to display as a Map.

Relevant API

  • ArcGISEnvironment
  • AuthenticationManager
  • Authenticator
  • Portal

About the data

This sample searches for web map portal items on a secure portal. To successfully run the sample, you need:

  • Access to a portal secured with Integrated Windows Authentication that contains one or more web map items.
  • A login that grants you access to the portal.

Additional information

More information about IWA and its use with ArcGIS can be found at the following links:

Tags

authentication, security, Windows

Sample Code

AuthenticateWithIntegratedWindowsAuthenticationView.swift
Use dark colors for code blocksCopy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
// Copyright 2025 Esri
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
//   https://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.

import ArcGIS
import ArcGISToolkit
import SwiftUI

struct AuthenticateWithIntegratedWindowsAuthenticationView: View {
    /// The model that backs this view.
    @StateObject private var model = Model()

    var body: some View {
        Form {
            switch model.portalContent {
            case .success(let success):
                ForEach(success.results, id: \.id?.rawValue) { item in
                    Button(item.title) {
                        model.selectedItem = .init(portalItem: item)
                    }
                    .buttonStyle(.plain)
                }
            case .failure:
                urlEntryView
                ContentUnavailableView(
                    "Error",
                    systemImage: "exclamationmark.triangle",
                    description: Text("Error searching specified portal.")
                )
            case nil:
                if model.isConnecting {
                    ProgressView()
                        .frame(maxWidth: .infinity)
                } else {
                    urlEntryView
                }
            }
        }
        .onTeardown {
            // Reset the challenge handlers and clear credentials
            // when the view disappears so that user is prompted to enter
            // credentials every time the sample is run, and to clean
            // the environment for other samples.
            await model.teardownAuthenticator()
        }
        .sheet(item: $model.selectedItem) { selectedItem in
            NavigationStack {
                MapView(map: Map(item: selectedItem.portalItem))
                    .navigationTitle(selectedItem.portalItem.title)
                    .navigationBarTitleDisplayMode(.inline)
                    .toolbar {
                        ToolbarItem(placement: .topBarTrailing) {
                            Button("Done") {
                                model.selectedItem = nil
                            }
                        }
                    }
            }
            .interactiveDismissDisabled()
            .highPriorityGesture(DragGesture())
            .pagePresentation()
        }
        .animation(.default, value: model.isConnecting)
        .authenticator(model.authenticator)
    }

    @ViewBuilder private var urlEntryView: some View {
        Section {
            HStack {
                TextField("IWA Secured Portal URL", text: $model.portalURLString)
                    .onSubmit { Task { await model.connectToPortal() } }
                    .autocapitalization(.none)
                    .keyboardType(.URL)
                Button("Connect") {
                    Task { await model.connectToPortal() }
                }
                .disabled(model.portalURL == nil)
            }
        }
    }
}

/// A value that represents an item selected by the user.
private struct SelectedItem: Identifiable {
    /// The portal item that was selected.
    let portalItem: PortalItem

    var id: ObjectIdentifier {
        ObjectIdentifier(portalItem)
    }
}

extension AuthenticateWithIntegratedWindowsAuthenticationView {
    @MainActor
    class Model: ObservableObject {
        /// The authenticator to handle authentication challenges.
        let authenticator = Authenticator()

        /// The URL string entered by the user.
        @Published var portalURLString = ""

        /// The fetched portal content.
        @Published var portalContent: Result<PortalQueryResultSet<PortalItem>, Error>?

        /// A Boolean value indicating if a portal connection is in progress.
        @Published var isConnecting = false

        /// The selected item.
        @Published fileprivate var selectedItem: SelectedItem?

        /// The URL of the portal.
        var portalURL: URL? { URL(string: portalURLString) }

        init() {
            setupAuthenticator()
        }

        /// Connects to the portal and finds a batch of webmaps.
        func connectToPortal() async {
            precondition(portalURL != nil)

            isConnecting = true
            defer { isConnecting = false }

            do {
                let portal = Portal(url: portalURL!)
                try await portal.load()
                let results = try await portal.findItems(queryParameters: .items(ofKinds: [.webMap]))
                portalContent = .success(results)
            } catch {
                portalContent = .failure(error)
            }
        }

        /// Sets up the authenticator to handle challenges.
        private func setupAuthenticator() {
            // Setting the challenge handlers here when the model is created so user is prompted to enter
            // credentials every time trying the sample. In real world applications, set challenge
            // handlers at the start of the application.

            // Sets authenticator as ArcGIS and Network challenge handlers to handle authentication
            // challenges.
            ArcGISEnvironment.authenticationManager.handleChallenges(using: authenticator)

            // In your application you may want to uncomment this code to persist
            // credentials in the keychain.
            // setupPersistentCredentialStorage()
        }

        /// Stops the authenticator from handling the challenges and clears credentials.
        nonisolated func teardownAuthenticator() async {
            // Resets challenge handlers.
            ArcGISEnvironment.authenticationManager.handleChallenges(using: nil)

            // In your application, code may need to run at a different
            // point in time based on the workflow desired. For example, it
            // might make sense to remove credentials when the user taps
            // a "sign out" button.
            await ArcGISEnvironment.authenticationManager.revokeOAuthTokens()
            await ArcGISEnvironment.authenticationManager.clearCredentialStores()
        }

        /// Sets up new ArcGIS and Network credential stores that will be persisted in the keychain.
        private func setupPersistentCredentialStorage() {
            Task {
                try await ArcGISEnvironment.authenticationManager.setupPersistentCredentialStorage(
                    access: .whenUnlockedThisDeviceOnly,
                    synchronizesWithiCloud: false
                )
            }
        }
    }
}

#Preview {
    AuthenticateWithIntegratedWindowsAuthenticationView()
}
