Create and save map

View on GitHub

Create and save a map as a web map item to an ArcGIS portal.

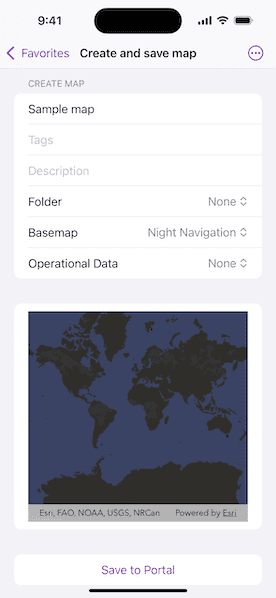

Image of create and save map

Use case

Maps can be created programmatically in code and then serialized and saved as an ArcGIS portal item. In this case, the portal item is a web map which can be shared with others and opened in various applications and APIs throughout the platform, such as ArcGIS Pro, ArcGIS Online, the JavaScript API, and Field Maps.

How to use the sample

When you run the sample, you will be challenged for an ArcGIS Online login. Enter a username and password for an ArcGIS Online named user account (such as your ArcGIS for Developers account). Then, choose the basemap and layers for your new map. To save the map, add a title, tags, and description (optional), and a folder on your portal (you will need to create one in your portal's My Content section if you don't already have one). Click the Save button to save the map to the chosen folder.

How it works

  1. Set up the authenticator the manage authentication challenges.
  2. Create a new Portal with an authenticated connection and load it.
  3. Log in to the portal.
  4. Access the PortalUser.Content with portal.user.content, to get the user's list of portal folders.
  5. Create a Map with the specified BasemapStyle and operational data.
  6. Call Map.save(to:title:forceSaveToSupportedVersion:folder:description:thumbnail:tags:extent:) to save the configured Map with the specified title, tags, description, and folder to the portal.

Relevant API

  • ArcGISMapImageLayer
  • BasemapStyle
  • Map
  • Portal

Tags

ArcGIS Online, ArcGIS Pro, portal, publish, share, web map

Sample Code

CreateAndSaveMapView.swift
Use dark colors for code blocksCopy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
// Copyright 2025 Esri
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
//   https://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.

import ArcGIS
import ArcGISToolkit
import SwiftUI

/// A view that allows a user to create a map and save it to a portal.
struct CreateAndSaveMapView: View {
    /// The authenticator to handle authentication challenges.
    @StateObject private var authenticator = Authenticator()

    /// The portal to save the map to.
    @State private var portal = Portal(
        url: URL(string: "https://www.arcgis.com")!,
        connection: .authenticated
    )

    /// The map that we will save to the portal.
    @State private var map: Map?

    /// The error that occurred, if any, when trying to save the map to the portal.
    @State private var error: Error?

    /// The status of the sample workflow.
    @State private var status: Status = .loadingPortal

    /// The API key to use temporarily while using OAuth.
    @State private var apiKey: APIKey?

    /// The portal user's folders that you can save the map to.
    @State private var folders: [PortalFolder] = []

    var body: some View {
        VStack {
            if let map {
                MapView(map: map)
            } else {
                switch status {
                case .loadingPortal:
                    ProgressView("Loading portal...")
                case .failedToLoadPortal:
                    ContentUnavailableView(
                        "Error",
                        systemImage: "exclamationmark.triangle",
                        description: Text("Portal could not be loaded.")
                    )
                case .creatingMap, .savingMapToPortal:
                    SaveMapForm(portal: portal, folders: folders, status: $status)
                case .failedToSaveMap:
                    ContentUnavailableView(
                        "Error",
                        systemImage: "exclamationmark.triangle",
                        description: Text("Failed to save map to portal.")
                    )
                case .mapSavedSuccessfully:
                    ContentUnavailableView {
                        Label("Success", systemImage: "checkmark.circle")
                    } description: {
                        Text("Map saved successfully to the portal.")
                    } actions: {
                        Button("Delete Map From Portal") {
                            Task { await deleteFromPortal() }
                        }
                        .buttonStyle(.borderedProminent)
                    }
                case .deletingMap:
                    ProgressView("Deleting map...")
                case .deletedSuccessfully:
                    ContentUnavailableView(
                        "Success",
                        systemImage: "checkmark.circle",
                        description: Text("Map successfully deleted from the portal.")
                    )
                case .failedToDelete:
                    ContentUnavailableView(
                        "Error",
                        systemImage: "exclamationmark.triangle",
                        description: Text("Failed to delete map from portal.")
                    )
                }
            }
        }
        .task {
            // Load the portal and get the folders.
            do {
                try await portal.load()
                let content = try await portal.user?.content
                if let folders = content?.folders {
                    self.folders = Array(folders.prefix(10))
                }
                status = .creatingMap
            } catch {
                status = .failedToLoadPortal
            }
        }
        .errorAlert(presentingError: $error)
        .authenticator(authenticator)
        .onAppear {
            // Temporarily unsets the API key for this sample to use OAuth.
            apiKey = ArcGISEnvironment.apiKey
            ArcGISEnvironment.apiKey = nil

            // Setup the authenticator.
            setupAuthenticator()
        }
        .onTeardown {
            // Reset the challenge handlers and clear credentials
            // when the view disappears so that user is prompted to enter
            // credentials every time the sample is run, and to clean
            // the environment for other samples.
            await teardownAuthenticator()

            // Sets the API key back to the original value.
            ArcGISEnvironment.apiKey = apiKey
        }
    }

    /// Deletes the saved map from the portal.
    private func deleteFromPortal() async {
        guard case .mapSavedSuccessfully(let map) = status else {
            return
        }
        do {
            status = .deletingMap
            try await portal.user?.delete(map.item! as! PortalItem)
            status = .deletedSuccessfully
        } catch {
            status = .failedToDelete
        }
    }
}

private extension CreateAndSaveMapView {
    /// A form that allows the user fill out properties for a map that they
    /// want to create and save to a portal.
    struct SaveMapForm: View {
        /// The portal to save the map to.
        let portal: Portal

        /// The folders that the user can save the map to.
        let folders: [PortalFolder]

        /// The status of the workflow of creating and saving a map.
        @Binding var status: Status

        /// The title of the new map.
        @State private var title: String = ""

        /// The tags for the map.
        @State private var tags: String = ""

        /// A description of the map.
        @State private var description: String = ""

        /// The basemap that the user chose for the new map.
        @State private var basemap: BasemapOption = .topographic

        /// The operational data that the user chooses to display on the map.
        @State private var operationalData: OperationalDataOption = .none

        /// The folder that the user chose to save the map to.
        @State private var folder: PortalFolder?

        /// The map to save to the portal.
        @State private var map = Map(basemapStyle: BasemapOption.topographic.style)

        /// The viewpoint of the map view, this will be set as the initial viewpoint
        /// of the map saved to the portal.
        @State private var viewpoint: Viewpoint?

        var body: some View {
            MapViewReader { mapViewProxy in
                Form {
                    Section("Create Map") {
                        TextField("Title", text: $title)
                        TextField("Tags", text: $tags)
                            .autocorrectionDisabled()
                        TextField("Description", text: $description)
                        Picker("Folder", selection: $folder) {
                            ForEach(folders, id: \.self) { folder in
                                Text(folder.title)
                                    .tag(folder)
                            }
                            Text("None")
                                .tag(Optional<PortalFolder>.none)
                        }
                        Picker("Basemap", selection: $basemap) {
                            ForEach(BasemapOption.allCases, id: \.self) { value in
                                Text(value.label)
                            }
                        }
                        Picker("Operational Data", selection: $operationalData) {
                            ForEach(OperationalDataOption.allCases, id: \.self) { value in
                                Text(value.label)
                            }
                        }
                    }
                    Section {
                        MapView(map: map)
                            .onViewpointChanged(kind: .centerAndScale) { viewpoint = $0 }
                            .highPriorityGesture(DragGesture())
                            .frame(height: 300)
                    }
                    Section {
                        Button {
                            Task { await save(mapViewProxy: mapViewProxy) }
                        } label: {
                            if status == .savingMapToPortal {
                                HStack {
                                    Text("Saving")
                                    ProgressView()
                                }
                            } else {
                                Text("Save to Portal")
                            }
                        }
                        .disabled(title.isEmpty)
                        .frame(maxWidth: .infinity)
                    }
                }
                .disabled(status == .savingMapToPortal)
                .onChange(of: basemap) { map.basemap = Basemap(style: basemap.style) }
                .onChange(of: operationalData) {
                    map.removeAllOperationalLayers()
                    if let layer = operationalData.layer {
                        map.addOperationalLayer(layer)
                    }
                }
            }
        }

        /// Saves the map to the portal.
        private func save(mapViewProxy: MapViewProxy) async {
            do {
                // Set the status appropriately.
                status = .savingMapToPortal
                // Set the initial viewpoint of the map.
                map.initialViewpoint = viewpoint
                // Try to save the map.
                try await map
                    .save(
                        to: portal,
                        title: title,
                        forceSaveToSupportedVersion: false,
                        folder: folder,
                        description: description,
                        thumbnail: try? await mapViewProxy.exportImage(),
                        tags: tags.components(separatedBy: ",")
                    )
                // Set the status if successful.
                status = .mapSavedSuccessfully(map)
            } catch {
                // Set the status if failed.
                status = .failedToSaveMap
            }
        }
    }
}

private extension CreateAndSaveMapView.SaveMapForm {
    /// The basemap options for our new map.
    /// These were arbitrarily chosen for the purpose of the sample.
    enum BasemapOption: CaseIterable {
        /// A topographic map.
        case topographic
        /// A streets map.
        case streets
        /// A night-themed map.
        case night

        /// The corresponding basemap style.
        var style: Basemap.Style {
            switch self {
            case .topographic:
                .arcGISTopographic
            case .streets:
                .arcGISStreets
            case .night:
                .arcGISNavigationNight
            }
        }

        /// The label for user interface purposes.
        var label: String {
            switch self {
            case .topographic:
                "Topographic"
            case .streets:
                "Streets"
            case .night:
                "Night Navigation"
            }
        }
    }

    /// The operational data options for our new map.
    /// These were arbitrarily chosen for the purpose of the sample.
    enum OperationalDataOption: CaseIterable {
        /// No operational data.
        case none
        /// Operational data for time zones.
        case timeZones
        /// U.S. census tracts.
        case census

        /// The url of the layer.
        private var url: URL? {
            switch self {
            case .none:
                nil
            case .timeZones:
                URL(string: "https://sampleserver6.arcgisonline.com/arcgis/rest/services/WorldTimeZones/MapServer")!
            case .census:
                URL(string: "https://sampleserver6.arcgisonline.com/arcgis/rest/services/Census/MapServer")!
            }
        }

        /// The map image layer that corresponds to the option.
        var layer: ArcGISMapImageLayer? {
            url.map(ArcGISMapImageLayer.init(url:))
        }

        /// The label for user interface purposes.
        var label: String {
            switch self {
            case .none:
                "None"
            case .timeZones:
                "Time Zone"
            case .census:
                "Census"
            }
        }
    }
}

private extension CreateAndSaveMapView {
    /// The status of the create and save workflow.
    enum Status: Equatable {
        /// The portal is loading.
        case loadingPortal
        /// The portal failed to load.
        case failedToLoadPortal
        /// The map is being created.
        case creatingMap
        /// The map is being saved to the portal.
        case savingMapToPortal
        /// The map failed to save to the portal.
        case failedToSaveMap
        /// The map was saved successfully to the portal.
        case mapSavedSuccessfully(Map)
        /// The map is being deleted from the portal.
        case deletingMap
        /// The map was successfully deleted from the portal.
        case deletedSuccessfully
        /// The map failed to delete from the portal.
        case failedToDelete
    }
}

private extension CreateAndSaveMapView {
    /// Sets up the authenticator to handle challenges.
    func setupAuthenticator() {
        // Setting the challenge handlers here when the model is created so user is prompted to enter
        // credentials every time trying the sample. In real world applications, set challenge
        // handlers at the start of the application.

        // Sets authenticator as ArcGIS and Network challenge handlers to handle authentication
        // challenges.
        ArcGISEnvironment.authenticationManager.handleChallenges(using: authenticator)

        // In your application you may want to uncomment this code to persist
        // credentials in the keychain.
        // setupPersistentCredentialStorage()
    }

    /// Stops the authenticator from handling the challenges and clears credentials.
    func teardownAuthenticator() async {
        // Resets challenge handlers.
        ArcGISEnvironment.authenticationManager.handleChallenges(using: nil)

        // In your application, code may need to run at a different
        // point in time based on the workflow desired. For example, it
        // might make sense to remove credentials when the user taps
        // a "sign out" button.
        await ArcGISEnvironment.authenticationManager.revokeOAuthTokens()
        await ArcGISEnvironment.authenticationManager.clearCredentialStores()
    }

    /// Sets up new ArcGIS and Network credential stores that will be persisted in the keychain.
    private func setupPersistentCredentialStorage() {
        Task {
            try await ArcGISEnvironment.authenticationManager.setupPersistentCredentialStorage(
                access: .whenUnlockedThisDeviceOnly
            )
        }
    }
}

#Preview {
    CreateAndSaveMapView()
}

Your browser is no longer supported. Please upgrade your browser for the best experience. See our browser deprecation post for more details.
