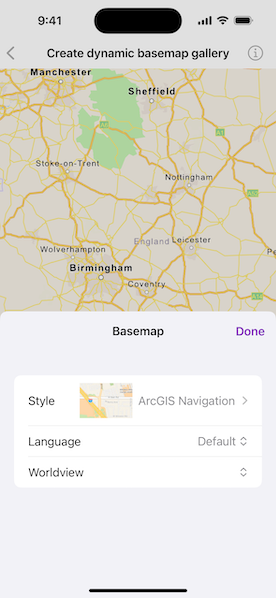

Create dynamic basemap gallery

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
// Copyright 2024 Esri
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
//   https://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.

import ArcGIS
import SwiftUI

struct CreateDynamicBasemapGalleryView: View {
    /// The view model for the sample.
    @StateObject private var model = Model()

    /// A Boolean value indicating whether the basemap gallery is showing.
    @State private var isShowingBasemapGallery = false

    /// The error shown in the error alert.
    @State private var error: Error?

    var body: some View {
        MapView(map: model.map)
            .toolbar {
                ToolbarItemGroup(placement: .bottomBar) {
                    Button("Basemap") {
                        isShowingBasemapGallery.toggle()
                    }
                    .popover(isPresented: $isShowingBasemapGallery) {
                        NavigationStack {
                            BasemapGallery(model: model)
                                .navigationTitle("Basemap")
                                .navigationBarTitleDisplayMode(.inline)
                                .toolbar {
                                    ToolbarItem(placement: .confirmationAction) {
                                        Button("Done") { isShowingBasemapGallery = false }
                                    }
                                }
                        }
                        .presentationDetents([.fraction(0.5)])
                        .frame(idealWidth: 320, idealHeight: 380)
                    }
                }
            }
            .task {
                do {
                    try await model.loadStylesInfo()
                } catch {
                    self.error = error
                }
            }
            .errorAlert(presentingError: $error)
    }
}

extension CreateDynamicBasemapGalleryView {
    /// The view model for the sample.
    @MainActor
    final class Model: ObservableObject {
        /// The map shown in the map view.
        let map = Map()

        /// The basemap style of the map's basemap.
        @Published var basemapStyle = Basemap.Style.arcGISNavigation {
            didSet {
                guard basemapStyle != oldValue else { return }

                basemapStyleLanguage = .strategic(.default)
                worldviewCode = nil
                basemapStyleInfo = stylesInfo.first { $0.style == basemapStyle }

                updateBasemap()
            }
        }

        /// The basemap style language of the map's basemap.
        @Published var basemapStyleLanguage = BasemapStyleLanguage.strategic(.default) {
            didSet {
                guard basemapStyleLanguage != oldValue else { return }
                updateBasemap()
            }
        }

        /// The worldview code of the map's basemap.
        @Published var worldviewCode: String? {
            didSet {
                guard worldviewCode != oldValue else { return }
                updateBasemap()
            }
        }

        /// The basemap styles info from the basemap styles service.
        @Published private(set) var stylesInfo: [BasemapStyleInfo] = []

        /// The basemap style info for the basemap style.
        @Published private(set) var basemapStyleInfo: BasemapStyleInfo?

        /// The basemap style language strategy options for the basemap style info.
        var languageStrategies: [BasemapStyleLanguageStrategy] {
            return [.default] + (basemapStyleInfo?.languageStrategies ?? [])
        }

        /// The language options for the basemap style info.
        var languages: [Locale.Language] {
            basemapStyleInfo?.languages ?? []
        }

        /// The worldview options for the basemap style info.
        var worldviews: [Worldview?] {
            return [nil] + (basemapStyleInfo?.worldviews ?? [])
        }

        init() {
            map.basemap = Basemap(style: basemapStyle)
            map.initialViewpoint = Viewpoint(latitude: 52.3433, longitude: -1.5796, scale: 25e5)
        }

        /// Loads the styles info from the basemap styles service.
        func loadStylesInfo() async throws {
            let service = BasemapStylesService()
            try await service.load()

            guard let info = service.info else { return }
            stylesInfo = info.stylesInfo
            basemapStyleInfo = stylesInfo.first { $0.style == basemapStyle }

            // Loads the styles info thumbnails.
            await stylesInfo.compactMap(\.thumbnail).load()
        }

        /// Updates the map's basemap with the `basemapStyle`, `basemapStyleLanguage` and `worldviewCode`.
        private func updateBasemap() {
            let basemapStyleParameters = BasemapStyleParameters(language: basemapStyleLanguage)
            basemapStyleParameters.worldview = if let worldviewCode {
                Worldview(code: worldviewCode)
            } else {
                nil
            }

            map.basemap = Basemap(style: basemapStyle, parameters: basemapStyleParameters)
        }
    }
}

#Preview {
    NavigationStack {
        CreateDynamicBasemapGalleryView()
    }
}
