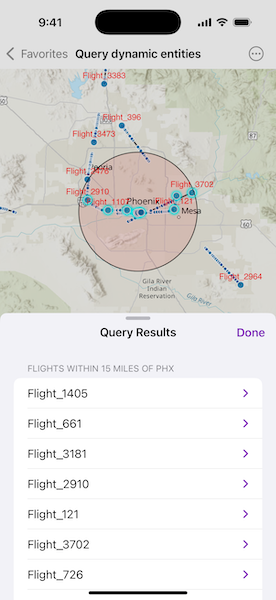

Query dynamic entities

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
// Copyright 2025 Esri
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
//   https://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.

import ArcGIS
import SwiftUI

struct QueryDynamicEntitiesView: View {
    /// The view model for the sample.
    @State private var model = Model()

    /// A Boolean value indicating whether the alert for entering a flight number is showing.
    @State private var flightNumberAlertIsShowing = false

    /// The text entered into the flight number alert's text field.
    @State private var flightNumber = ""

    /// The type of query currently being performed.
    @State private var selectedQueryType: QueryType?

    /// The result of a dynamic entities query operation.
    @State private var queryResult: Result<[DynamicEntity], any Error>?

    var body: some View {
        MapView(map: model.map, graphicsOverlays: [model.graphicsOverlay])
            .contentInsets(.init(top: 0, leading: 0, bottom: 250, trailing: 0))
            .toolbar {
                ToolbarItemGroup(placement: .bottomBar) {
                    Spacer()
                    Menu("Query Flights") {
                        Button("Within 15 Miles of PHX", systemImage: "dot.circle") {
                            selectedQueryType = .geometry
                        }
                        Button("Arriving in PHX", systemImage: "airplane.arrival") {
                            selectedQueryType = .attributes
                        }
                        Button("With Flight Number", systemImage: "magnifyingglass") {
                            flightNumberAlertIsShowing = true
                        }
                    }
                    .menuOrder(.fixed)
                    .alert("Enter a Flight Number to Query", isPresented: $flightNumberAlertIsShowing) {
                        TextField("Flight Number", text: $flightNumber, prompt: .init("Flight_396"))

                        Button("Done") {
                            selectedQueryType = .trackID(flightNumber)
                        }
                        .disabled(flightNumber.isEmpty)

                        Button("Cancel", role: .cancel, action: {})
                    }
                    .task(id: selectedQueryType) {
                        guard let selectedQueryType else { return }
                        queryResult = await model.queryDynamicEntities(type: selectedQueryType)
                    }
                    .popover(item: $selectedQueryType) { queryType in
                        QueryResultView(result: queryResult, type: queryType)
                            .onDisappear(perform: model.resetDisplay)
                            .presentationDetents([.fraction(0.5), .large])
                            .frame(idealWidth: 320, idealHeight: 380)
                    }
                    Spacer()
                }
            }
    }
}

private extension QueryDynamicEntitiesView {
    /// A view that displays the result of a dynamic entities query operation.
    struct QueryResultView: View {
        /// The result of the dynamic entities query operation.
        let result: Result<[DynamicEntity], any Error>?

        /// The type of query that was performed.
        let type: QueryType

        /// The action to dismiss the view.
        @Environment(\.dismiss) private var dismiss

        var body: some View {
            NavigationStack {
                Group {
                    switch result {
                    case .success(let entities):
                        if !entities.isEmpty {
                            List {
                                Section(type.resultLabel) {
                                    ForEach(entities, id: \.id) { entity in
                                        DynamicEntityObservationView(entity: entity)
                                    }
                                }
                            }
                        } else {
                            ContentUnavailableView(
                                "No Results",
                                systemImage: "airplane",
                                description: .init("There are no flights to display for this query.")
                            )
                        }
                    case .failure(let error):
                        ContentUnavailableView(
                            "Error",
                            systemImage: "exclamationmark.triangle",
                            description: .init(String(reflecting: error))
                        )
                    case nil:
                        ProgressView("Querying dynamic entities")
                    }
                }
                .navigationTitle("Query Results")
                .navigationBarTitleDisplayMode(.inline)
                .toolbar {
                    ToolbarItem(placement: .confirmationAction) {
                        Button("Done") { dismiss() }
                    }
                }
            }
        }
    }

    /// A view that displays the latest observation of a dynamic entity.
    struct DynamicEntityObservationView: View {
        /// The dynamic entity to observe.
        let entity: DynamicEntity

        /// The latest observation's attributes to display.
        @State private var attributes: [String: any Sendable] = [:]

        /// A Boolean value indicating whether the disclosure group is expanded.
        @State private var isExpanded = false

        var body: some View {
            let flightNumber = entity.attributes["flight_number"] as? String
            DisclosureGroup(flightNumber ?? "N/A", isExpanded: $isExpanded) {
                let attributes = attributes.sorted(by: { $0.key < $1.key })
                ForEach(attributes, id: \.key) { name, value in
                    let label = PlaneAttributeKey(rawValue: name)?.label ?? name
                    if let string = value as? String {
                        LabeledContent(label, value: string)
                    } else if let double = value as? Double {
                        LabeledContent(
                            label,
                            value: double,
                            format: .number.precision(.fractionLength(0...2))
                        )
                    }
                }
            }
            .task {
                attributes = entity.latestObservation?.attributes ?? [:]

                for await changedInfo in entity.changes {
                    attributes = changedInfo.receivedObservation?.attributes ?? [:]
                }
            }
        }
    }
}

private extension QueryDynamicEntitiesView.PlaneAttributeKey {
    /// A human-readable label for the attribute.
    var label: String {
        switch self {
        case .aircraft: "Aircraft"
        case .altitudeFeet: "Altitude (ft)"
        case .arrivalAirport: "Arrival Airport"
        case .flightNumber: "Flight Number"
        case .heading: "Heading"
        case .speed: "Speed"
        case .status: "Status"
        }
    }
}

private extension QueryDynamicEntitiesView.QueryType {
    /// The human-readable text describing the query results.
    var resultLabel: String {
        switch self {
        case .geometry: "Flights within 15 miles of PHX"
        case .attributes: "Flights arriving in PHX"
        case .trackID(let trackID): "Flights matching number: \(trackID)"
        }
    }
}
