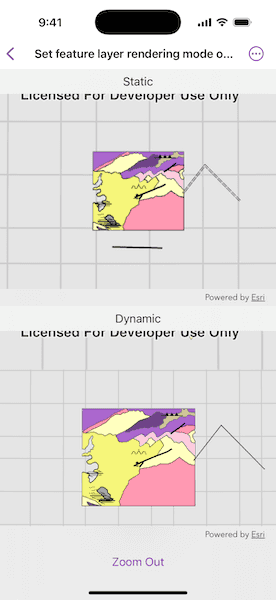

Set feature layer rendering mode on scene

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
// Copyright 2025 Esri
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
//   https://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.

import ArcGIS
import SwiftUI

struct SetFeatureLayerRenderingModeOnSceneView: View {
    /// Scene that displays with dynamic rendering.
    @State private var dynamicScene = Scene()

    /// Scene that displays with static rendering.
    @State private var staticScene = Scene()

    /// A Boolean value indicating whether the scene views are currently zooming.
    @State private var isZooming = false

    /// The viewpoint for the scene.
    @State private var camera: Camera = .zoomedOut

    /// A Boolean value indicating whether the scene is fully zoomed in.
    @State private var isZoomedIn = false

    init() {
        // The service feature tables using point, polygon, and polyline services.
        let featureTables: [ServiceFeatureTable] = [URL.pointTable, .polylineTable, .polygonTable].map(ServiceFeatureTable.init(url:))
        // Iterate through the feature tables and use them to set up feature layers.
        // Set the rendering mode for either dynamic or static rendering,
        // and add the feature layers to the scene.
        for featureTable in featureTables {
            // Set up the dynamic scene first.
            let dynamicFeatureLayer = FeatureLayer(featureTable: featureTable)
            dynamicFeatureLayer.renderingMode = .dynamic
            dynamicScene.addOperationalLayer(dynamicFeatureLayer)
            // Then set up the static scene using a clone of the dynamic feature layer.
            let staticFeatureLayer = dynamicFeatureLayer.clone()
            staticFeatureLayer.renderingMode = .static
            staticScene.addOperationalLayer(staticFeatureLayer)
        }
        staticScene.initialViewpoint = Viewpoint(boundingGeometry: Camera.zoomedOut.location, camera: Camera.zoomedOut)
        dynamicScene.initialViewpoint = Viewpoint(boundingGeometry: Camera.zoomedOut.location, camera: Camera.zoomedOut)
    }

    var body: some View {
        VStack(spacing: 0) {
            SceneViewReader { sceneViewProxy in
                SceneView(scene: staticScene)
                    .overlay(alignment: .top) {
                        Text("Static")
                            .multilineTextAlignment(.center)
                            .frame(maxWidth: .infinity, alignment: .center)
                            .padding(8)
                            .background(.regularMaterial, ignoresSafeAreaEdges: .horizontal)
                    }
                    .task(id: camera) {
                        await sceneViewProxy.setViewpointCamera(camera, duration: 2)
                        isZooming = false
                    }
                    .disabled(true)
            }
            SceneViewReader { sceneViewProxy in
                SceneView(scene: dynamicScene)
                    .overlay(alignment: .top) {
                        Text("Dynamic")
                            .multilineTextAlignment(.center)
                            .frame(maxWidth: .infinity, alignment: .center)
                            .padding(8)
                            .background(.regularMaterial, ignoresSafeAreaEdges: .horizontal)
                    }
                    .task(id: camera) {
                        await sceneViewProxy.setViewpointCamera(camera, duration: 2)
                        isZooming = false
                    }
                    .disabled(true)
            }
        }
        .toolbar {
            ToolbarItem(placement: .bottomBar) {
                Button(isZoomedIn ? "Zoom Out" : "Zoom In") {
                    isZooming = true
                    camera = isZoomedIn ? .zoomedOut : .zoomedIn
                    isZoomedIn.toggle()
                }
                .disabled(isZooming)
            }
        }
    }
}

private extension Camera {
    /// Camera set to zoom in on scene position at an angle.
    static var zoomedIn: Camera {
        Camera(
            lookingAt: Point(
                latitude: 34.395,
                longitude: -118.45
            ),
            distance: 2500,
            heading: 90,
            pitch: 75,
            roll: 0
        )
    }

    /// Camera set to zoom out on scene position without angle.
    static var zoomedOut: Camera {
        Camera(
            lookingAt: Point(
                latitude: 34.46,
                longitude: -118.37
            ),
            distance: 30000,
            heading: 0,
            pitch: 0,
            roll: 0
        )
    }
}

private extension URL {
    static var pointTable: URL {
        URL(string: "https://sampleserver6.arcgisonline.com/arcgis/rest/services/Energy/Geology/FeatureServer/0")!
    }

    static var polylineTable: URL {
        URL(string: "https://sampleserver6.arcgisonline.com/arcgis/rest/services/Energy/Geology/FeatureServer/8")!
    }

    static var polygonTable: URL {
        URL(string: "https://sampleserver6.arcgisonline.com/arcgis/rest/services/Energy/Geology/FeatureServer/9")!
    }
}

#Preview {
    SetFeatureLayerRenderingModeOnSceneView()
}
