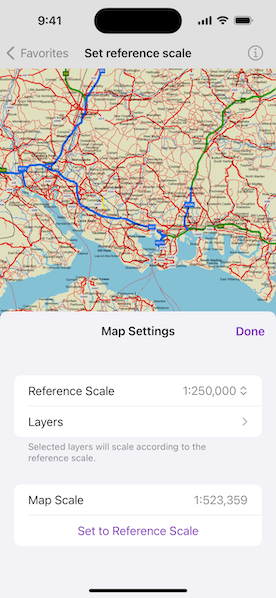

Set reference scale

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
// Copyright 2024 Esri
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
//   https://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.

import ArcGIS
import SwiftUI

struct SetReferenceScaleView: View {
    /// A map of the "Isle of Wight" portal item.
    @State private var map: Map = {
        // Creates the map from a portal item on ArcGIS Online.
        let portalItem = PortalItem(portal: .arcGISOnline(connection: .anonymous), id: .isleOfWight)
        let map = Map(item: portalItem)

        // Sets the initial reference scale for the map.
        map.referenceScale = 250_000
        return map
    }()

    /// The scale of the map view.
    @State private var mapScale: Double = .nan

    /// A Boolean value indicating whether the map settings popover is presented.
    @State private var settingsPopoverIsPresented = false

    var body: some View {
        MapViewReader { mapViewProxy in
            MapView(map: map)
                .onScaleChanged { mapScale = $0 }
                .toolbar {
                    ToolbarItem(placement: .bottomBar) {
                        Button("Map Settings") {
                            settingsPopoverIsPresented = true
                        }
                        .popover(isPresented: $settingsPopoverIsPresented) { [mapScale] in
                            MapSettingsView(map: map, mapScale: mapScale) { scale in
                                // Sets the map's scale to the selected reference scale
                                // when the "Set to Reference Scale" button is tapped.
                                Task {
                                    await mapViewProxy.setViewpointScale(scale)
                                }
                            }
                            .presentationDetents([.fraction(0.5)])
                            .frame(idealWidth: 320, idealHeight: 380)
                        }
                    }
                }
        }
    }
}

private extension SetReferenceScaleView {
    /// The view containing settings controls for a map.
    struct MapSettingsView: View {
        /// The map.
        let map: Map

        /// A binding to the scale of the map.
        let mapScale: Double

        /// The action to set the map scale, i.e, when the "Set to Reference Scale" button is pressed.
        let setMapScaleAction: (_ scale: Double) -> Void

        /// The action to dismiss the view.
        @Environment(\.dismiss) private var dismiss

        /// The reference scale option selected in the picker.
        @State private var selectedReferenceScale: Double = 250_000

        /// The options for the reference scale picker
        private let referenceScaleOptions: [Double] = [500_000, 250_000, 100_000, 50_000]

        var body: some View {
            NavigationStack {
                Form {
                    Section {
                        Picker("Reference Scale", selection: $selectedReferenceScale) {
                            ForEach(referenceScaleOptions, id: \.self) { option in
                                Text("1:\(option, format: .number.rounded(increment: 1))")
                            }
                        }
                        .onChange(of: selectedReferenceScale) { map.referenceScale = $0 }

                        NavigationLink("Layers") {
                            List(map.operationalLayers as! [FeatureLayer], id: \.id) { layer in
                                ScalesSymbolsToggle(layer: layer)
                            }
                            .navigationTitle("Layers")
                            .navigationBarTitleDisplayMode(.inline)
                            .toolbar {
                                ToolbarItem(placement: .confirmationAction) {
                                    Button("Done") { dismiss() }
                                }
                            }
                        }
                    } footer: {
                        Text("Selected layers will scale according to the reference scale.")
                    }

                    Section {
                        LabeledContent("Map Scale") {
                            Text("1:\(mapScale, format: .number.rounded(increment: 1))")
                        }

                        Button("Set to Reference Scale") {
                            setMapScaleAction(selectedReferenceScale)
                        }
                        .frame(maxWidth: .infinity)
                        .disabled(mapScale == selectedReferenceScale)
                    }
                }
                .navigationTitle("Map Settings")
                .navigationBarTitleDisplayMode(.inline)
                .toolbar {
                    ToolbarItem(placement: .confirmationAction) {
                        Button("Done") { dismiss() }
                    }
                }
            }
            .onAppear {
                selectedReferenceScale = map.referenceScale!
            }
        }
    }

    /// A control that toggles the `scalesSymbols` property of a feature layer.
    struct ScalesSymbolsToggle: View {
        /// The feature layer.
        let layer: FeatureLayer

        /// A Boolean value indicating whether layer’s symbols and labels honor the map’s reference scale.
        @State private var layerScalesSymbol = false

        var body: some View {
            Toggle(layer.name, isOn: $layerScalesSymbol)
                .onChange(of: layerScalesSymbol) { layer.scalesSymbols = $0 }
                .onAppear { layerScalesSymbol = layer.scalesSymbols }
        }
    }
}

private extension PortalItem.ID {
    /// The ID for the "Isle of Wight" portal item on ArcGIS Online.
    static var isleOfWight: Self { Self("3953413f3bd34e53a42bf70f2937a408")! }
}

#Preview {
    NavigationStack {
        SetReferenceScaleView()
    }
}
