Show callout

View on GitHub

Show a callout with the latitude and longitude of user-tapped points.

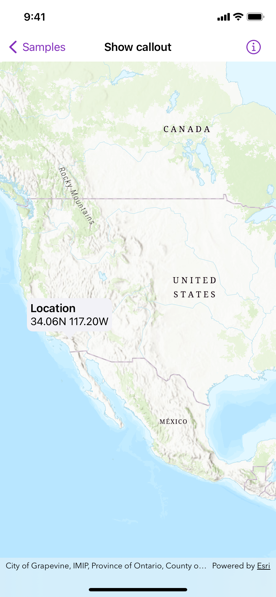

Screenshot of show callout sample

Use case

Callouts are used to display temporary detail content on a map. You can display text and arbitrary UI controls in callouts.

How to use the sample

Tap anywhere on the map. A callout showing the WGS 84 coordinates in latitude and longitude for the tapped point will appear.

How it works

  1. Define an optional LocationCalloutPlacement.
  2. Use the onSingleTapGesture(perform:) map view modifier to update the location callout placement.
  3. Use the callout(placement:content:) map view modifier with the location callout placement to display a callout.

Relevant API

  • LocationCalloutPlacement
  • MapView.callout(placement:content:)

Tags

balloon, bubble, callout, flyout, flyover, info window, popup, tap

Sample Code

ShowCalloutView.swift
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
// Copyright 2022 Esri
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
//   https://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.

import ArcGIS
import SwiftUI

struct ShowCalloutView: View {
    /// A map with a topographic basemap style.
    @State private var map = Map(basemapStyle: .arcGISTopographic)

    /// A location callout placement.
    @State private var calloutPlacement: CalloutPlacement?

    /// The tap location.
    @State private var tapLocation: Point!

    var body: some View {
        MapView(map: map)
            .onSingleTapGesture { _, mapPoint in
                tapLocation = mapPoint
                if calloutPlacement == nil {
                    // Projects the point to the WGS 84 spatial reference.
                    let location = GeometryEngine.project(mapPoint, into: .wgs84)!
                    // Shows the callout at the tapped location.
                    calloutPlacement = CalloutPlacement.location(location)
                } else {
                    // Hides the callout.
                    calloutPlacement = nil
                }
            }
            .callout(placement: $calloutPlacement.animation(.default.speed(2))) { _ in
                VStack(alignment: .leading) {
                    Text("Location")
                        .font(.headline)
                    Text(
                        CoordinateFormatter.latitudeLongitudeString(
                            from: tapLocation,
                            format: .decimalDegrees,
                            decimalPlaces: 2
                        )
                    )
                    .font(.callout)
                }
                .padding(5)
            }
    }
}

#Preview {
    ShowCalloutView()
}
