List geodatabase versions

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
// Copyright 2016 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific
// language governing permissions and limitations under the License.

using Esri.ArcGISRuntime.Data;
using Esri.ArcGISRuntime.Tasks;
using Esri.ArcGISRuntime.Tasks.Geoprocessing;
using Microsoft.UI.Xaml;
using System;
using System.Collections.Generic;
using System.Text;
using System.Threading.Tasks;

namespace ArcGIS.WinUI.Samples.ListGeodatabaseVersions
{
    [ArcGIS.Samples.Shared.Attributes.Sample(
        name: "List geodatabase versions",
        category: "Geoprocessing",
        description: "Connect to a service and list versions of the geodatabase.",

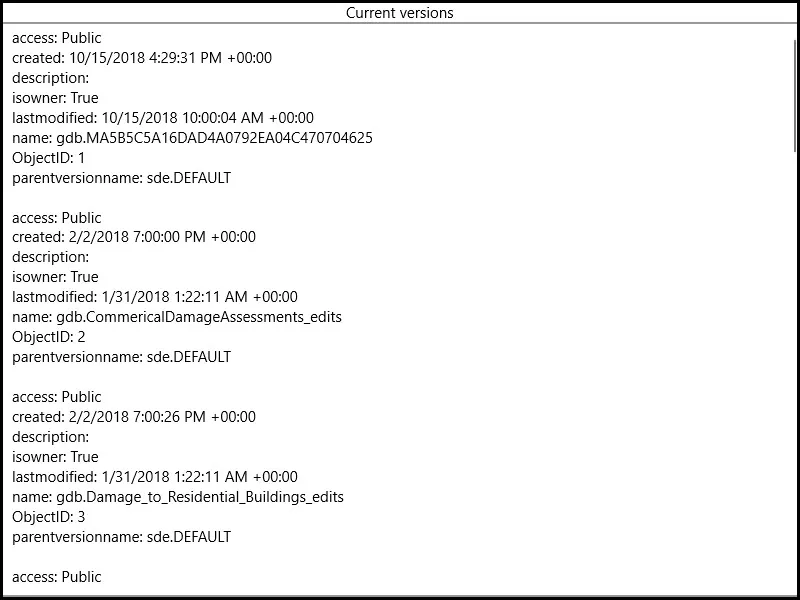

        instructions: "When the sample loads, a list of geodatabase versions and their properties will be displayed.",
        tags: new[] { "conflict resolution", "data management", "database", "multi-user", "sync", "version" })]
    public sealed partial class ListGeodatabaseVersions
    {
        // Url to used geoprocessing service
        private const string ListVersionsUrl =
            "https://sampleserver6.arcgisonline.com/arcgis/rest/services/GDBVersions/GPServer/ListVersions";

        public ListGeodatabaseVersions()
        {
            InitializeComponent();

            // Create the UI, setup the control references and execute initialization
            _ = Initialize();
        }

        private async Task Initialize()
        {
            // Set the UI to indicate that the geoprocessing is running
            SetBusy(true);

            try
            {
                // Get versions from a geodatabase
                IFeatureSet versionsFeatureSet = await GetGeodatabaseVersionsAsync();

                // Continue if we got a valid geoprocessing result
                if (versionsFeatureSet != null)
                {
                    // Create a string builder to hold all of the information from the geoprocessing
                    // task to display in the UI
                    StringBuilder myStringBuilder = new StringBuilder();

                    // Loop through each Feature in the FeatureSet
                    foreach (Feature version in versionsFeatureSet)
                    {
                        // Get the attributes (a dictionary of <key,value> pairs) from the Feature
                        IDictionary<string, object> myDictionary = version.Attributes;

                        // Loop through each attribute (a <key,value> pair)
                        foreach (KeyValuePair<string, object> attribute in myDictionary)
                        {
                            // Add the key and value strings to the string builder
                            myStringBuilder.AppendLine(attribute.Key + ": " + attribute.Value);
                        }

                        // Add a blank line after each Feature (the listing of geodatabase versions)
                        myStringBuilder.AppendLine();
                    }

                    // Display the result in the textbox
                    theTextBox.Text = myStringBuilder.ToString();
                }
            }
            catch (Exception e)
            {
                await new MessageDialog2(e.ToString(), "Error").ShowAsync();
            }

            // Set the UI to indicate that the geoprocessing is not running
            SetBusy(false);
        }

        private async Task<IFeatureSet> GetGeodatabaseVersionsAsync()
        {
            // Results will be returned as a feature set
            IFeatureSet results = null;

            // Create new geoprocessing task
            GeoprocessingTask listVersionsTask = await GeoprocessingTask.CreateAsync(new Uri(ListVersionsUrl));

            // Create default parameters that are passed to the geoprocessing task
            GeoprocessingParameters listVersionsParameters = await listVersionsTask.CreateDefaultParametersAsync();

            // Create job that handles the communication between the application and the geoprocessing task
            GeoprocessingJob listVersionsJob = listVersionsTask.CreateJob(listVersionsParameters);
            try
            {
                // Execute analysis and wait for the results
                GeoprocessingResult analysisResult = await listVersionsJob.GetResultAsync();

                // Get results from the outputs
                GeoprocessingFeatures listVersionsResults = (GeoprocessingFeatures)analysisResult.Outputs["Versions"];

                // Set results
                results = listVersionsResults.Features;
            }
            catch (Exception ex)
            {
                // Error handling if something goes wrong
                if (listVersionsJob.Status == JobStatus.Failed && listVersionsJob.Error != null)
                {
                    var message = new MessageDialog2("Executing geoprocessing failed. " + listVersionsJob.Error.Message, "Geoprocessing error");
                    await message.ShowAsync();
                }
                else
                {
                    var message = new MessageDialog2("An error occurred. " + ex.ToString(), "Sample error");
                    await message.ShowAsync();
                }
            }
            finally
            {
                // Set the UI to indicate that the geoprocessing is not running
                SetBusy(false);
            }

            return results;
        }

        private void SetBusy(bool isBusy = true)
        {
            if (isBusy)
            {
                // Change UI to indicate that the geoprocessing is running
                busyOverlay.Visibility = Visibility.Visible;
                progress.IsIndeterminate = true;
            }
            else
            {
                // Change UI to indicate that the geoprocessing is not running
                busyOverlay.Visibility = Visibility.Collapsed;
                progress.IsIndeterminate = false;
            }
        }
    }
}
