Map image layer sublayer visibility

View on GitHub
Sample viewer app

Change the visibility of sublayers.

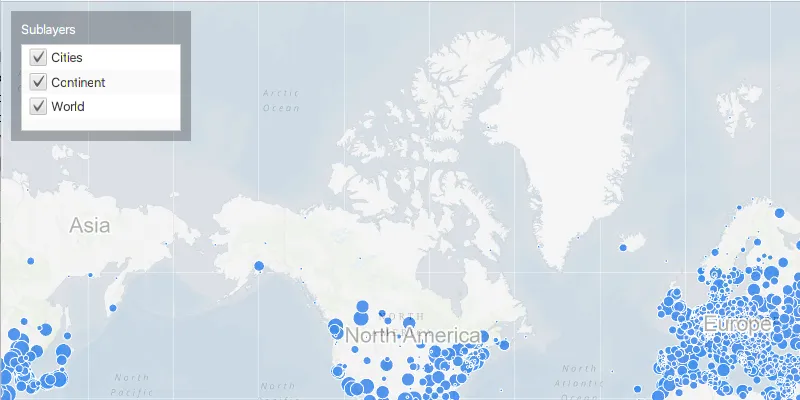

Image of map image layer sublayer visibility

Use case

A map image layer may contain many sublayers such as different types of roads in a road network or city, county, and state borders in a US map. The user may only be interested in a subset of these sublayers. Or, perhaps showing all of the sublayers would show too much detail. In these cases, you can hide certain sublayers by changing their visibility.

How to use the sample

Each sublayer has a check box which can be used to toggle the visibility of the sublayer.

How it works

  1. Create an ArcGISMapImageLayer object with the URL to a map image service.
  2. Get the SubLayerList with mapImageLayer.getSubLayers().
  3. For each layer in the sublayer list, set its visible property to true or false using .setVisible().

Relevant API

  • ArcGISMapImageLayer
  • SubLayerList

Tags

layer, sublayer, visibility

Sample Code

MapImageLayerSublayerVisibilitySample.java

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
/*
 * Copyright 2017 Esri.
 *
 * Licensed under the Apache License, Version 2.0 (the "License"); you may not
 * use this file except in compliance with the License. You may obtain a copy of
 * the License at
 *
 * http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS, WITHOUT
 * WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the
 * License for the specific language governing permissions and limitations under
 * the License.
 */

package com.esri.samples.map_image_layer_sublayer_visibility;

import javafx.application.Application;
import javafx.geometry.Insets;
import javafx.geometry.Pos;
import javafx.scene.Scene;
import javafx.scene.control.Alert;
import javafx.scene.control.CheckBox;
import javafx.scene.layout.Background;
import javafx.scene.layout.BackgroundFill;
import javafx.scene.layout.CornerRadii;
import javafx.scene.layout.StackPane;
import javafx.scene.layout.VBox;
import javafx.scene.paint.Paint;
import javafx.stage.Stage;

import com.esri.arcgisruntime.ArcGISRuntimeEnvironment;
import com.esri.arcgisruntime.layers.ArcGISMapImageLayer;
import com.esri.arcgisruntime.layers.SublayerList;
import com.esri.arcgisruntime.loadable.LoadStatus;
import com.esri.arcgisruntime.mapping.ArcGISMap;
import com.esri.arcgisruntime.mapping.BasemapStyle;
import com.esri.arcgisruntime.mapping.Viewpoint;
import com.esri.arcgisruntime.mapping.view.MapView;

public class MapImageLayerSublayerVisibilitySample extends Application {

  private MapView mapView;

  @Override
  public void start(Stage stage) {

    try {
      // create a border pane and application scene
      StackPane stackPane = new StackPane();
      Scene scene = new Scene(stackPane);
      scene.getStylesheets().add(getClass().getResource("/map_image_layer_sublayer_visibility/style.css").toExternalForm());

      // size the stage and add a title
      stage.setTitle("Map Image Layer Sublayer Visibility Sample");
      stage.setWidth(800);
      stage.setHeight(700);
      stage.setScene(scene);
      stage.show();

      // authentication with an API key or named user is required to access basemaps and other location services
      String yourAPIKey = System.getProperty("apiKey");
      ArcGISRuntimeEnvironment.setApiKey(yourAPIKey);

      // create a control panel
      VBox controlsVBox = new VBox(6);
      controlsVBox.setBackground(new Background(new BackgroundFill(Paint.valueOf("rgba(0,0,0,0.3)"), CornerRadii.EMPTY,
              Insets.EMPTY)));
      controlsVBox.setPadding(new Insets(10.0));
      controlsVBox.setMaxSize(180, 130);
      controlsVBox.getStyleClass().add("panel-region");

      // create checkboxes for each sublayer
      CheckBox citiesBox = new CheckBox("Cities");
      CheckBox continentsBox = new CheckBox("Continents");
      CheckBox worldBox = new CheckBox("World");

      controlsVBox.getChildren().addAll(citiesBox, continentsBox, worldBox);
      controlsVBox.getChildren().forEach(c -> ((CheckBox) c).setSelected(true));

      // create a map with the topographic basemap style
      ArcGISMap map = new ArcGISMap(BasemapStyle.ARCGIS_TOPOGRAPHIC);

      // create a map view and set the map to it
      mapView = new MapView();
      mapView.setMap(map);

      // set a viewpoint on the map view
      mapView.setViewpoint(new Viewpoint(48.354406, -99.998267, 147914382));

      // create an image Layer with dynamically generated ArcGISMap images
      ArcGISMapImageLayer imageLayer = new ArcGISMapImageLayer("https://sampleserver6.arcgisonline.com/arcgis/rest/services/SampleWorldCities/MapServer");

      // add the image layer to the map's operational layers
      map.getOperationalLayers().add(imageLayer);

      // set the image layer's opacity so that the basemap is visible behind it
      imageLayer.setOpacity(0.7f);

      // show alert if layer fails to load
      imageLayer.addDoneLoadingListener(() -> {
        if (imageLayer.getLoadStatus() == LoadStatus.LOADED) {

          // get the layers from the ArcGISMap image layer
          SublayerList layers = imageLayer.getSublayers();

          // handle sub layer selection
          citiesBox.selectedProperty().addListener(e -> layers.get(0).setVisible(citiesBox.isSelected()));
          continentsBox.selectedProperty().addListener(e -> layers.get(1).setVisible(continentsBox.isSelected()));
          worldBox.selectedProperty().addListener(e -> layers.get(2).setVisible(worldBox.isSelected()));

        } else {
          new Alert(Alert.AlertType.ERROR, "Error loading Image Layer.").show();
        }
      });

      // add the map view and controls to the stack pane
      stackPane.getChildren().addAll(mapView, controlsVBox);
      StackPane.setAlignment(controlsVBox, Pos.TOP_LEFT);
      StackPane.setMargin(controlsVBox, new Insets(10, 0, 0, 10));

    } catch (Exception e) {
      // on any error, display the stack trace.
      e.printStackTrace();
    }
  }

  @Override
  public void stop() {

    // releases resources when the application closes
    if (mapView != null) {
      mapView.dispose();
    }
  }

  /**
   * Starting point of this application.
   *
   * @param args arguments to this application.
   */
  public static void main(String[] args) {

    Application.launch(args);
  }
}
