// Copyright 2021 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific
// language governing permissions and limitations under the License.

using Esri.ArcGISRuntime.Data;
using Esri.ArcGISRuntime.Geometry;
using Esri.ArcGISRuntime.Mapping;
using Esri.ArcGISRuntime.Mapping.Labeling;
using Esri.ArcGISRuntime.Security;
using Esri.ArcGISRuntime.Symbology;
using System;
using System.Diagnostics;
using System.Drawing;
using System.Threading.Tasks;
using System.Windows;

namespace ArcGIS.WPF.Samples.DisplaySubtypeFeatureLayer
{
    [ArcGIS.Samples.Shared.Attributes.Sample(
        name: "Display subtype feature layer",
        category: "Layers",

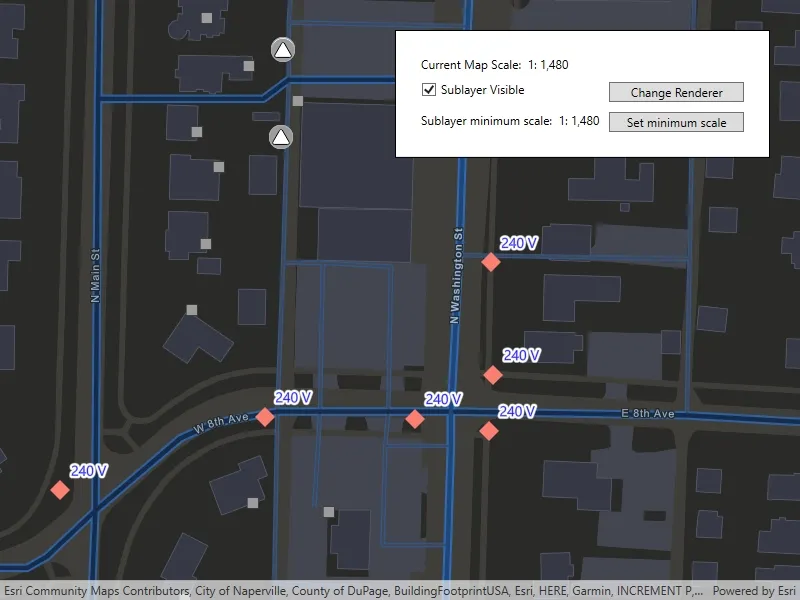

        description: "Displays a composite layer of all the subtype values in a feature class.",
        instructions: "The sample loads with the sublayer visible on the map. Change the sublayer's visibiliy, renderer, and minimum scale using the on screen controls. Setting the minimum scale will change its value to that of the current map scale. Zoom in and out to see the sublayer become visible based on its new scale range.",
        tags: new[] { "asset group", "feature layer", "labeling", "sublayer", "subtype", "symbology", "utility network", "visible scale range" })]
    public partial class DisplaySubtypeFeatureLayer
    {
        // Reference to a sublayer.
        private SubtypeSublayer _sublayer;

        // Renderers for the sublayer.
        private Renderer _defaultRenderer;
        private Renderer _customRenderer;

        public DisplaySubtypeFeatureLayer()
        {
            InitializeComponent();
            _ = Initialize();
        }

        private async Task Initialize()
        {
            // As of ArcGIS Enterprise 10.8.1, using utility network functionality requires a licensed user. The following login for the sample server is licensed to perform utility network operations.
            AuthenticationManager.Current.ChallengeHandler = new ChallengeHandler(async (info) =>
            {
                try
                {
                    // WARNING: Never hardcode login information in a production application. This is done solely for the sake of the sample.
                    string sampleServer7User = "viewer01";
                    string sampleServer7Pass = "I68VGU^nMurF";
                    return await AuthenticationManager.Current.GenerateCredentialAsync(info.ServiceUri, sampleServer7User, sampleServer7Pass);
                }
                catch (Exception ex)
                {
                    Debug.WriteLine(ex.Message);
                    return null;
                }
            });

            try
            {
                // Starting viewpoint for the map view.
                Viewpoint _startingViewpoint = new Viewpoint(new Envelope(-9812691.11079696, 5128687.20710657, -9812377.9447607, 5128865.36767282, SpatialReferences.WebMercator));

                // Create the map.
                MyMapView.Map = new Map(BasemapStyle.ArcGISStreetsNight) { InitialViewpoint = _startingViewpoint };

                // NOTE: This layer supports any ArcGIS Feature Table that define subtypes.
                SubtypeFeatureLayer subtypeFeatureLayer = new SubtypeFeatureLayer(new ServiceFeatureTable(new Uri("https://sampleserver7.arcgisonline.com/server/rest/services/UtilityNetwork/NapervilleElectric/FeatureServer/0")));
                MyMapView.Map.OperationalLayers.Add(subtypeFeatureLayer);

                // Select sublayer to control.
                await subtypeFeatureLayer.LoadAsync();

                // Select the sublayer of street lights by name.
                _sublayer = subtypeFeatureLayer.GetSublayerBySubtypeName("Street Light");

                // Create a text symbol for styling the sublayer label definition.
                TextSymbol textSymbol = new TextSymbol
                {
                    Size = 12,
                    OutlineColor = Color.White,
                    Color = Color.Blue,
                    HaloColor = Color.White,
                    HaloWidth = 3,
                };

                // Create a label definition with a simple label expression.
                LabelExpression simpleLabelExpression = new SimpleLabelExpression("[nominalvoltage]");
                LabelDefinition labelDefinition = new LabelDefinition(simpleLabelExpression, textSymbol)
                {
                    Placement = Esri.ArcGISRuntime.ArcGISServices.LabelingPlacement.PointAboveRight,
                    UseCodedValues = true,
                };

                // Add the label definition to the sublayer.
                _sublayer.LabelDefinitions.Add(labelDefinition);

                // Enable labels for the sub layer.
                _sublayer.LabelsEnabled = true;

                // Set the data context for data-binding in XAML.
                SublayerInfo.DataContext = _sublayer;

                // Get the default renderer for the sublayer.
                _defaultRenderer = Renderer.FromJson(_sublayer.Renderer.ToJson());

                // Create a custom renderer for the sublayer.
                _customRenderer = new SimpleRenderer()
                {
                    Symbol = new SimpleMarkerSymbol()
                    {
                        Color = Color.Salmon,
                        Style = SimpleMarkerSymbolStyle.Diamond,
                        Size = 20,
                    }
                };

                // Set a default minimum scale.
                _sublayer.MinScale = 3000;
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message, ex.GetType().Name, MessageBoxButton.OK, MessageBoxImage.Error);
            }
        }

        private void OnChangeRenderer(object sender, RoutedEventArgs e)
        {
            // Check if the current renderer is the custom renderer.
            if (_sublayer.Renderer == _customRenderer)
            {
                _sublayer.Renderer = _defaultRenderer;
            }
            else
            {
                _sublayer.Renderer = _customRenderer;
            }
        }

        private void OnSetMinimumScale(object sender, RoutedEventArgs e)
        {
            // Set the minimum scale of the sublayer.
            // NOTE: You may also update Sublayer.MaxScale
            _sublayer.MinScale = MyMapView.MapScale;
        }
    }
}
