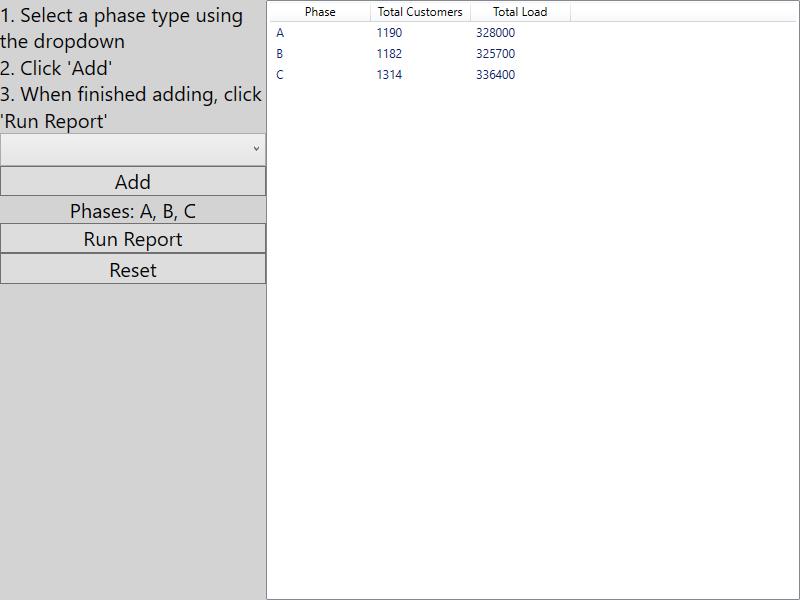

Create load report

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
// Copyright 2023 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific
// language governing permissions and limitations under the License.

using Esri.ArcGISRuntime.Data;
using Esri.ArcGISRuntime.Security;
using Esri.ArcGISRuntime.UtilityNetworks;
using System;
using System.Collections.Generic;
using System.Collections.ObjectModel;
using System.Linq;
using System.Threading.Tasks;
using System.Windows;

namespace ArcGIS.WPF.Samples.CreateLoadReport
{
    [ArcGIS.Samples.Shared.Attributes.Sample(
        name: "Create load report",
        category: "Utility network",
        description: "Demonstrates the creation of a simple electric distribution report. It traces downstream from a given point and adds up the count of customers and total load per phase.",
        instructions: "Choose phases to be included in the report. Click 'Run Report' to initiate a downstream trace on the network and create a load report. Click 'Reset' to clear the phases and start over.",
        tags: new[] { "condition barriers", "downstream trace", "network analysis", "subnetwork trace", "trace configuration", "traversability", "upstream trace", "utility network", "validate consistency" })]
    [ArcGIS.Samples.Shared.Attributes.OfflineData()]
    public partial class CreateLoadReport
    {
        private const string FeatureServiceUrl = "https://sampleserver7.arcgisonline.com/server/rest/services/UtilityNetwork/NapervilleElectric/FeatureServer";

        // Default starting location.
        private const string NetworkSourceName = "Electric Distribution Device";
        private const string AssetGroupName = "Circuit Breaker";
        private const string AssetTypeName = "Three Phase";
        private const string TerminalName = "Load";
        private const string GlobalId = "{1CAF7740-0BF4-4113-8DB2-654E18800028}";

        // Default trace configuration.
        private const string DomainNetworkName = "ElectricDistribution";
        private const string TierName = "Medium Voltage Radial";
        private UtilityTraceConditionalExpression _baseCondition = null;

        // Compute total customers.
        private const string ServiceCategoryName = "ServicePoint";

        // Compute total loads.
        private const string LoadNetworkAttributeName = "Service Load";

        // Varying attribute.
        private const string PhasesNetworkAttributeName = "Phases Current";
        private UtilityNetworkAttribute _phasesNetworkAttribute = null;
        private List<string> _phases = new List<string>(new[] { "A", "B", "C" });
        private UtilityNetwork _utilityNetwork = null;
        private UtilityTraceParameters _traceParameters = null;
        private ObservableCollection<PhaseSummary> _phaseSummaries = new ObservableCollection<PhaseSummary>();

        public class PhaseSummary
        {
            public PhaseSummary(string phase)
            {
                Phase = phase;
            }

            public string Phase { get; private set; }
            public double TotalCustomers { get; set; }
            public double TotalLoad { get; set; }
        }

        public CreateLoadReport()
        {
            InitializeComponent();
            _ = Initialize();
        }

        private async Task Initialize()
        {
            // Handle the login to the feature service.
            AuthenticationManager.Current.ChallengeHandler = new ChallengeHandler(async (info) =>
            {
                try
                {
                    // WARNING: Never hardcode login information in a production application. This is done solely for the sake of the sample.
                    string sampleServer7User = "editor01";
                    string sampleServer7Pass = "S7#i2LWmYH75";
                    return await AuthenticationManager.Current.GenerateCredentialAsync(info.ServiceUri, sampleServer7User, sampleServer7Pass);
                }
                catch (Exception ex)
                {
                    MessageBox.Show(ex.Message, ex.GetType().Name, MessageBoxButton.OK, MessageBoxImage.Error);
                    return null;
                }
            });

            try
            {
                ReportView.ItemsSource = _phaseSummaries;
                Phases.Text = $"Phases: {string.Join(", ", _phases)}";
                _utilityNetwork = await UtilityNetwork.CreateAsync(new Uri(FeatureServiceUrl));

                // Create default starting location.
                UtilityNetworkSource networkSource = _utilityNetwork.Definition.GetNetworkSource(NetworkSourceName);
                UtilityAssetGroup assetGroup = networkSource?.GetAssetGroup(AssetGroupName);
                UtilityAssetType assetType = assetGroup?.GetAssetType(AssetTypeName);
                UtilityTerminal terminal = assetType?.TerminalConfiguration?.Terminals?.FirstOrDefault(t => t.Name == TerminalName);
                Guid globalId = Guid.Parse(GlobalId);

                if (assetType != null && terminal != null)
                {
                    var startingLocation = _utilityNetwork.CreateElement(assetType, globalId, terminal);

                    // Get base condition and trace configuration from a default tier.
                    UtilityDomainNetwork domainNetwork = _utilityNetwork.Definition.GetDomainNetwork(DomainNetworkName);
                    UtilityTier tier = domainNetwork?.GetTier(TierName);
                    _baseCondition = tier?.GetDefaultTraceConfiguration()?.Traversability?.Barriers as UtilityTraceConditionalExpression;

                    // Create downstream trace with function outputs.
                    _traceParameters = new UtilityTraceParameters(UtilityTraceType.Downstream, new[] { startingLocation });
                    _traceParameters.ResultTypes.Add(UtilityTraceResultType.FunctionOutputs);
                    _traceParameters.TraceConfiguration = tier?.GetDefaultTraceConfiguration();

                    // Create function input and output condition.
                    UtilityCategory serviceCategory = _utilityNetwork.Definition.Categories.FirstOrDefault(c => c.Name == ServiceCategoryName);
                    UtilityNetworkAttribute loadAttribute = _utilityNetwork.Definition.GetNetworkAttribute(LoadNetworkAttributeName);
                    _phasesNetworkAttribute = _utilityNetwork.Definition.GetNetworkAttribute(PhasesNetworkAttributeName);
                    if (serviceCategory != null && loadAttribute != null && _phasesNetworkAttribute != null)
                    {
                        UtilityCategoryComparison serviceCategoryComparison = new UtilityCategoryComparison(serviceCategory, UtilityCategoryComparisonOperator.Exists);
                        UtilityTraceFunction addLoadAttributeFunction = new UtilityTraceFunction(UtilityTraceFunctionType.Add, loadAttribute, serviceCategoryComparison);
                        _traceParameters.TraceConfiguration.Functions.Clear();
                        _traceParameters.TraceConfiguration.Functions.Add(addLoadAttributeFunction);
                        _traceParameters.TraceConfiguration.OutputCondition = serviceCategoryComparison;

                        if (_phasesNetworkAttribute.Domain is CodedValueDomain codedValueDomain)
                        {
                            PhasesList.ItemsSource = codedValueDomain.CodedValues;
                        }
                    }
                }
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message, ex.GetType().Name, MessageBoxButton.OK, MessageBoxImage.Error);
            }
        }

        private void OnAddPhase(object sender, RoutedEventArgs e)
        {
            if (PhasesList.SelectedItem is CodedValue codedValue && !_phases.Contains(codedValue.Name))
            {
                _phases.Add(codedValue.Name);
                Phases.Text = $"Phases: {string.Join(",", _phases)}";
            }
        }

        private void OnReset(object sender, RoutedEventArgs e)
        {
            _phases.Clear();
            Phases.Text = $"Phases:";
            _phaseSummaries.Clear();
        }

        private async void RunReportButton_Clicked(object sender, RoutedEventArgs e)
        {
            try
            {
                if (_phasesNetworkAttribute?.Domain is CodedValueDomain codedValueDomain)
                {
                    _phaseSummaries.Clear();
                    foreach (CodedValue codedValue in codedValueDomain.CodedValues)
                    {
                        if (!_phases.Contains(codedValue.Name))
                            continue;
                        if (_baseCondition != null)
                        {
                            UtilityNetworkAttributeComparison phasesAttributeComparison = new UtilityNetworkAttributeComparison(_phasesNetworkAttribute, UtilityAttributeComparisonOperator.DoesNotIncludeAny, codedValue.Code);
                            _traceParameters.TraceConfiguration.Traversability.Barriers = new UtilityTraceOrCondition(_baseCondition, phasesAttributeComparison);

                            IEnumerable<UtilityTraceResult> results = await _utilityNetwork.TraceAsync(_traceParameters);
                            PhaseSummary phaseSummary = new PhaseSummary(codedValue.Name);
                            foreach (UtilityTraceResult result in results)
                            {
                                if (result.Warnings.Count > 0)
                                {
                                    MessageBox.Show(string.Join("\n", result.Warnings), "Trace Result Warnings", MessageBoxButton.OK);
                                }
                                if (result is UtilityElementTraceResult elementResult)
                                {
                                    phaseSummary.TotalCustomers = (from element in elementResult.Elements select element.ObjectId).Distinct().Count();
                                }
                                else if (result is UtilityFunctionTraceResult functionResult)
                                {
                                    phaseSummary.TotalLoad = Convert.ToDouble(functionResult.FunctionOutputs.FirstOrDefault()?.Result);
                                }
                            }
                            _phaseSummaries.Insert(0, phaseSummary);
                        }
                    }
                }
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message, ex.GetType().Name, MessageBoxButton.OK, MessageBoxImage.Error);
            }
        }
    }
}
