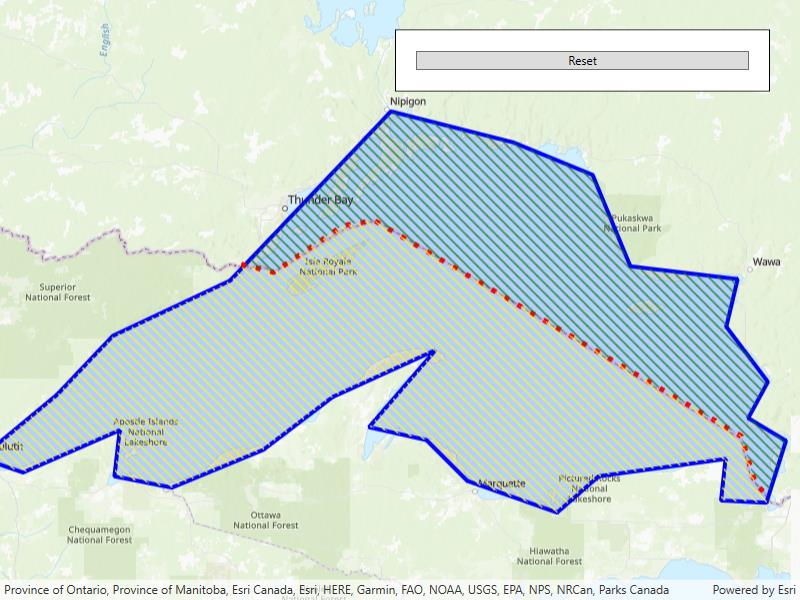

Cut geometry

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
// Copyright 2018 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific
// language governing permissions and limitations under the License.

using Esri.ArcGISRuntime.Geometry;
using Esri.ArcGISRuntime.Mapping;
using Esri.ArcGISRuntime.Symbology;
using Esri.ArcGISRuntime.UI;
using System.Windows;

namespace ArcGIS.WPF.Samples.CutGeometry
{
    [ArcGIS.Samples.Shared.Attributes.Sample(
        name: "Cut geometry",
        category: "Geometry",
        description: "Cut a geometry along a polyline.",
        instructions: "Click the \"Cut\" button to cut the polygon with the polyline and see the resulting parts (shaded in different colors).",
        tags: new[] { "cut", "geometry", "split" })]
    public partial class CutGeometry
    {
        // Graphics overlay to display the graphics.
        private GraphicsOverlay _graphicsOverlay;

        // Graphic that represents the polygon of Lake Superior.
        private Graphic _lakeSuperiorPolygonGraphic;

        // Graphic that represents the Canada and USA border (polyline) of Lake Superior.
        private Graphic _countryBorderPolylineGraphic;

        private bool _cut;

        public CutGeometry()
        {
            InitializeComponent();

            // Create a map with a topographic basemap.
            Map newMap = new Map(BasemapStyle.ArcGISTopographic);

            // Assign the map to the MapView.
            MyMapView.Map = newMap;

            // Create a graphics overlay to hold the various graphics.
            _graphicsOverlay = new GraphicsOverlay();

            // Add the created graphics overlay to the MapView.
            MyMapView.GraphicsOverlays.Add(_graphicsOverlay);

            // Create a simple line symbol for the outline of the Lake Superior graphic.
            SimpleLineSymbol lakeSuperiorSimpleLineSymbol = new SimpleLineSymbol(SimpleLineSymbolStyle.Solid, System.Drawing.Color.Blue, 4);

            // Create the color that will be used for the fill the Lake Superior graphic. It will be a semi-transparent, blue color.
            System.Drawing.Color lakeSuperiorFillColor = System.Drawing.Color.FromArgb(34, 0, 0, 255);

            // Create the simple fill symbol for the Lake Superior graphic - comprised of a fill style, fill color and outline.
            SimpleFillSymbol lakeSuperiorSimpleFillSymbol = new SimpleFillSymbol(SimpleFillSymbolStyle.Solid, lakeSuperiorFillColor, lakeSuperiorSimpleLineSymbol);

            // Create the graphic for Lake Superior - comprised of a polygon shape and fill symbol.
            _lakeSuperiorPolygonGraphic = new Graphic(CreateLakeSuperiorPolygon(), lakeSuperiorSimpleFillSymbol);

            // Add the Lake Superior graphic to the graphics overlay collection.
            _graphicsOverlay.Graphics.Add(_lakeSuperiorPolygonGraphic);

            // Create a simple line symbol for the Canada and USA border (polyline) of Lake Superior.
            SimpleLineSymbol countryBorderSimpleLineSymbol = new SimpleLineSymbol(SimpleLineSymbolStyle.Dot, System.Drawing.Color.Red, 5);

            // Create the graphic for Canada and USA border (polyline) of Lake Superior - comprised of a polyline shape and line symbol.
            _countryBorderPolylineGraphic = new Graphic(CreateBorder(), countryBorderSimpleLineSymbol);

            // Add the Canada and USA border graphic to the graphics overlay collection.
            _graphicsOverlay.Graphics.Add(_countryBorderPolylineGraphic);

            // Set the initial visual extent of the map view to that of Lake Superior.
            MyMapView.SetViewpointGeometryAsync(_lakeSuperiorPolygonGraphic.Geometry);
        }

        private void CutButton_Click(object sender, RoutedEventArgs e)
        {
            if (!_cut)
            {
                Cut();
                _cut = true;
            }
            else
            {
                Reset();
                _cut = false;
            }

            CutButton.Content = _cut ? "Reset" : "Cut";
        }

        private void Cut()
        {
            // Cut the polygon geometry with the polyline, expect two geometries.
            Geometry[] cutGeometries = _lakeSuperiorPolygonGraphic.Geometry.Cut((Polyline)_countryBorderPolylineGraphic.Geometry);

            // Create a simple line symbol for the outline of the Canada side of Lake Superior.
            SimpleLineSymbol canadaSideSimpleLineSymbol = new SimpleLineSymbol(SimpleLineSymbolStyle.Null, System.Drawing.Color.Blue, 0);

            // Create the simple fill symbol for the Canada side of Lake Superior graphic - comprised of a fill style, fill color and outline.
            SimpleFillSymbol canadaSideSimpleFillSymbol = new SimpleFillSymbol(SimpleFillSymbolStyle.ForwardDiagonal, System.Drawing.Color.Green, canadaSideSimpleLineSymbol);

            // Create the graphic for the Canada side of Lake Superior - comprised of a polygon shape and fill symbol.
            Graphic canadaSideGraphic = new Graphic(cutGeometries[0], canadaSideSimpleFillSymbol);

            // Add the Canada side of the Lake Superior graphic to the graphics overlay collection.
            _graphicsOverlay.Graphics.Add(canadaSideGraphic);

            // Create a simple line symbol for the outline of the USA side of Lake Superior.
            SimpleLineSymbol usaSideSimpleLineSymbol = new SimpleLineSymbol(SimpleLineSymbolStyle.Null, System.Drawing.Color.Blue, 0);

            // Create the simple fill symbol for the USA side of Lake Superior graphic - comprised of a fill style, fill color and outline.
            SimpleFillSymbol usaSideSimpleFillSymbol = new SimpleFillSymbol(SimpleFillSymbolStyle.ForwardDiagonal, System.Drawing.Color.Yellow, usaSideSimpleLineSymbol);

            // Create the graphic for the USA side of Lake Superior - comprised of a polygon shape and fill symbol.
            Graphic usaSideGraphic = new Graphic(cutGeometries[1], usaSideSimpleFillSymbol);

            // Add the USA side of the Lake Superior graphic to the graphics overlay collection.
            _graphicsOverlay.Graphics.Add(usaSideGraphic);
        }

        private void Reset()
        {
            // Reset the graphics.
            _graphicsOverlay.Graphics.Clear();
            _graphicsOverlay.Graphics.Add(_lakeSuperiorPolygonGraphic);
            _graphicsOverlay.Graphics.Add(_countryBorderPolylineGraphic);
        }

        private Polyline CreateBorder()
        {
            // Create a point collection that represents the Canada and USA border (polyline) of Lake Superior. Use the same spatial reference as the underlying base map.
            PointCollection borderCountryPointCollection = new PointCollection(SpatialReferences.WebMercator)
            {
                // Add all of the border map points to the point collection.
                new MapPoint(-9981328.687124, 6111053.281447),
                new MapPoint(-9946518.044066, 6102350.620682),
                new MapPoint(-9872545.427566, 6152390.920079),
                new MapPoint(-9838822.617103, 6157830.083057),
                new MapPoint(-9446115.050097, 5927209.572793),
                new MapPoint(-9430885.393759, 5876081.440801),
                new MapPoint(-9415655.737420, 5860851.784463)
            };

            // Create a polyline geometry from the point collection.
            Polyline borderCountryPolyline = new Polyline(borderCountryPointCollection);

            // Return the polyline.
            return borderCountryPolyline;
        }

        private Polygon CreateLakeSuperiorPolygon()
        {
            // Create a point collection that represents Lake Superior (polygon). Use the same spatial reference as the underlying base map.
            PointCollection lakeSuperiorPointCollection = new PointCollection(SpatialReferences.WebMercator)
            {
                // Add all of the lake Superior boundary map points to the point collection.
                new MapPoint(-10254374.668616, 5908345.076380),
                new MapPoint(-10178382.525314, 5971402.386779),
                new MapPoint(-10118558.923141, 6034459.697178),
                new MapPoint(-9993252.729399, 6093474.872295),
                new MapPoint(-9882498.222673, 6209888.368416),
                new MapPoint(-9821057.766387, 6274562.532928),
                new MapPoint(-9690092.583250, 6241417.023616),
                new MapPoint(-9605207.742329, 6206654.660191),
                new MapPoint(-9564786.389509, 6108834.986367),
                new MapPoint(-9449989.747500, 6095091.726408),
                new MapPoint(-9462116.153346, 6044160.821855),
                new MapPoint(-9417652.665244, 5985145.646738),
                new MapPoint(-9438671.768711, 5946341.148031),
                new MapPoint(-9398250.415891, 5922088.336339),
                new MapPoint(-9419269.519357, 5855797.317714),
                new MapPoint(-9467775.142741, 5858222.598884),
                new MapPoint(-9462924.580403, 5902686.086985),
                new MapPoint(-9598740.325877, 5884092.264688),
                new MapPoint(-9643203.813979, 5845287.765981),
                new MapPoint(-9739406.633691, 5879241.702350),
                new MapPoint(-9783061.694736, 5922896.763395),
                new MapPoint(-9844502.151022, 5936640.023354),
                new MapPoint(-9773360.570059, 6019099.583107),
                new MapPoint(-9883306.649729, 5968977.105610),
                new MapPoint(-9957681.938918, 5912387.211662),
                new MapPoint(-10055501.612742, 5871965.858842),
                new MapPoint(-10116942.069028, 5884092.264688),
                new MapPoint(-10111283.079633, 5933406.315128),
                new MapPoint(-10214761.742852, 5888134.399970),
                new MapPoint(-10254374.668616, 5901877.659929)
            };

            // Create a polyline geometry from the point collection.
            Polygon lakeSuperiorPolygon = new Polygon(lakeSuperiorPointCollection);

            // Return the polygon.
            return lakeSuperiorPolygon;
        }
    }
}
