Create feature collection layer (Portal item)

View on GitHubSample viewer app

Create a feature collection layer from a portal item.

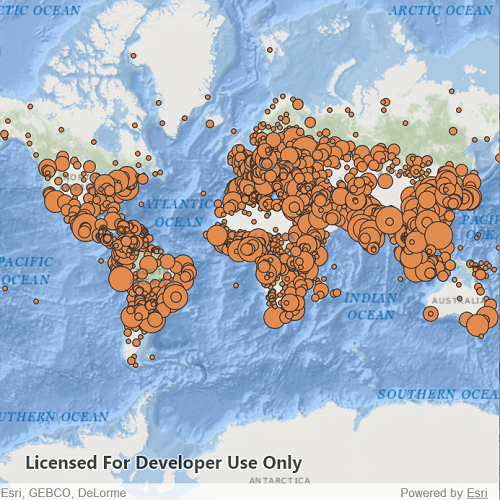

screenshot

Use case

Feature collection layers are often used to hold features with mixed geometry or unstructured data. You can display feature collections stored in a Portal, which are often used for showing content from a CSV or map notes.

How to use the sample

The feature collection is loaded from the Portal item when the sample starts.

How it works

  1. Create a Portal.
  2. Create the PortalItem, referring to the portal and an item ID.
  3. Verify that the item represents a feature collection.
  4. Create a FeatureCollection from the item.
  5. Create a FeatureCollectionLayer, referring to the feature collection.
  6. Add the feature collection layer to the map's OperationalLayers collection.

Relevant API

  • FeatureCollection
  • FeatureCollectionLayer
  • Portal
  • PortalItem

About the data

The sample uses a sample layer depicting world populations.

Tags

collection, feature collection, feature collection layer, id, item, map notes, portal

Sample Code

FeatureCollectionLayerFromPortal.cppFeatureCollectionLayerFromPortal.cppFeatureCollectionLayerFromPortal.hFeatureCollectionLayerFromPortal.qml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
// [WriteFile Name=FeatureCollectionLayerFromPortal, Category=Layers]
// [Legal]
// Copyright 2020 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "FeatureCollectionLayerFromPortal.h"

// ArcGIS Maps SDK headers
#include "Error.h"
#include "FeatureCollection.h"
#include "FeatureCollectionLayer.h"
#include "LayerListModel.h"
#include "Map.h"
#include "MapQuickView.h"
#include "MapTypes.h"
#include "Portal.h"
#include "PortalItem.h"
#include "PortalTypes.h"

using namespace Esri::ArcGISRuntime;

namespace
{
const QString featureCollectionItemId("32798dfad17942858d5eef82ee802f0b");
}

FeatureCollectionLayerFromPortal::FeatureCollectionLayerFromPortal(QObject* parent /* = nullptr */):
  QObject(parent),
  m_map(new Map(BasemapStyle::ArcGISOceans, this))
{
  Portal* portal = new Portal(this);
  m_portalItem = new PortalItem(portal, featureCollectionItemId, this);

  connect(m_portalItem, &PortalItem::doneLoading, this, [this](const Error& loadError)
  {
    if (!loadError.isEmpty())
    {
      qWarning() << loadError.message() << loadError.additionalMessage();
      return;
    }

    // if the portal item is a feature collection, add the feature collection to the map's operational layers
    if (m_portalItem->type() == PortalItemType::FeatureCollection)
    {
      FeatureCollection* featureCollection = new FeatureCollection(m_portalItem, this);
      FeatureCollectionLayer* featureCollectionLayer = new FeatureCollectionLayer(featureCollection, this);
      m_map->operationalLayers()->append(featureCollectionLayer);
    }
    else
    {
      qWarning() << "Portal item with ID " << featureCollectionItemId << " is not a feature collection.";
    }
  });

  m_portalItem->load();
}

FeatureCollectionLayerFromPortal::~FeatureCollectionLayerFromPortal() = default;

void FeatureCollectionLayerFromPortal::init()
{
  // Register the map view for QML
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<FeatureCollectionLayerFromPortal>("Esri.Samples", 1, 0, "FeatureCollectionLayerFromPortalSample");
}

MapQuickView* FeatureCollectionLayerFromPortal::mapView() const
{
  return m_mapView;
}

// Set the view (created in QML)
void FeatureCollectionLayerFromPortal::setMapView(MapQuickView* mapView)
{
  if (!mapView || mapView == m_mapView)
    return;

  m_mapView = mapView;
  m_mapView->setMap(m_map);

  emit mapViewChanged();
}
