Raster layer (file)

View on GitHubSample viewer app

Create and use a raster layer made from a local raster file.

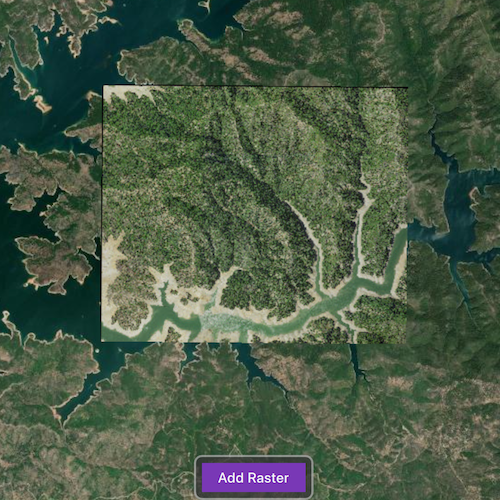

screenshot

Use case

Rasters can be digital aerial photographs, imagery from satellites, digital pictures, or even scanned maps. An end-user will frequently need to import raster files acquired through various data-collection methods into their map to view and analyze the data.

How to use the sample

The sample will load with a map showing a basemap and a loaded raster layer. Tap on "Add Raster" to browse for a new raster file. On desktop platforms the sample also allows you to drag and drop supported raster files to load.

How it works

  1. Create a Raster from a raster file.
  2. Create a RasterLayer from the raster.
  3. Add it as an operational layer with map::operationalLayers()::append(rasterLayer).

Relevant API

  • Raster
  • RasterLayer

Offline Data

Read more about how to set up the sample's offline data here.

Link Local Location
Shasta.tif raster <userhome>/ArcGIS/Runtime/Data/raster/Shasta.tif

Additional information

See the topic What is raster data? in the ArcMap documentation for more information about raster images.

Tags

data, image, import, layer, raster, visualization

Sample Code

RasterLayerFile.cppRasterLayerFile.cppRasterLayerFile.hRasterLoader.qmlRasterLayerFile.qml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
// [WriteFile Name=RasterLayerFile, Category=Analysis]
// [Legal]
// Copyright 2016 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "RasterLayerFile.h"

// ArcGIS Maps SDK headers
#include "Basemap.h"
#include "Envelope.h"
#include "Error.h"
#include "LayerListModel.h"
#include "Map.h"
#include "MapQuickView.h"
#include "MapTypes.h"
#include "MapViewTypes.h"
#include "Point.h"
#include "Raster.h"
#include "RasterLayer.h"

// Qt headers
#include <QFuture>
#include <QStandardPaths>
#include <QUrl>
#include <QtCore/qglobal.h>

using namespace Esri::ArcGISRuntime;

// helper method to get cross platform data path
namespace
{
  QString defaultDataPath()
  {
    QString dataPath;

  #ifdef Q_OS_IOS
    dataPath = QStandardPaths::writableLocation(QStandardPaths::DocumentsLocation);
  #else
    dataPath = QStandardPaths::writableLocation(QStandardPaths::HomeLocation);
  #endif

    return dataPath;
  }
} // namespace

RasterLayerFile::RasterLayerFile(QQuickItem* parent /* = nullptr */):
  QQuickItem(parent)
{
}

RasterLayerFile::~RasterLayerFile() = default;

void RasterLayerFile::init()
{
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<RasterLayerFile>("Esri.Samples", 1, 0, "RasterLayerFileSample");
}

void RasterLayerFile::componentComplete()
{
  QQuickItem::componentComplete();

  const QString dataPath = defaultDataPath() + "/ArcGIS/Runtime/Data/raster/";

  // find QML MapView component
  m_mapView = findChild<MapQuickView*>("mapView");
  m_mapView->setWrapAroundMode(WrapAroundMode::Disabled);

  Basemap* basemap = new Basemap(BasemapStyle::ArcGISImageryStandard, this);
  m_map = new Map(basemap, this);
  m_mapView->setMap(m_map);

  // Create a map using a raster layer
  createAndAddRasterLayer(dataPath + "Shasta.tif");
}

void RasterLayerFile::createAndAddRasterLayer(QString dataPath)
{
  // correct data path if contains file:/ prefix
  if (dataPath.contains("file:/"))
    dataPath = QString(QUrl(dataPath).toLocalFile());

  //! [RasterLayerFile cpp new raster layer]
  Raster* raster = new Raster(dataPath, this);
  RasterLayer* rasterLayer = new RasterLayer(raster, this);
  //! [RasterLayerFile cpp new raster layer]

  connect(rasterLayer, &RasterLayer::doneLoading, this, [this, rasterLayer](const Error& loadError)
  {
    if (!loadError.isEmpty())
      return;

    m_mapView->setViewpointCenterAsync(rasterLayer->fullExtent().center(), 80000);
  });

  m_map->operationalLayers()->clear();
  m_map->operationalLayers()->append(rasterLayer);
}
