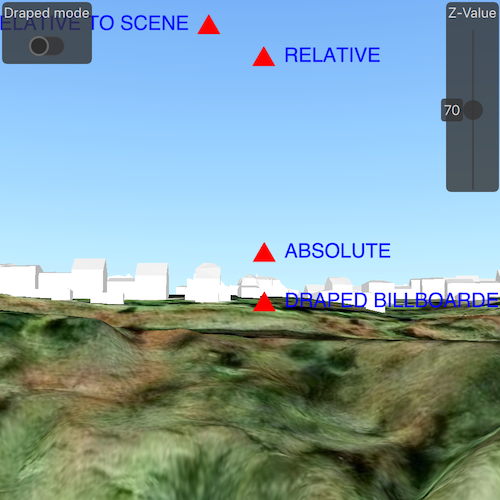

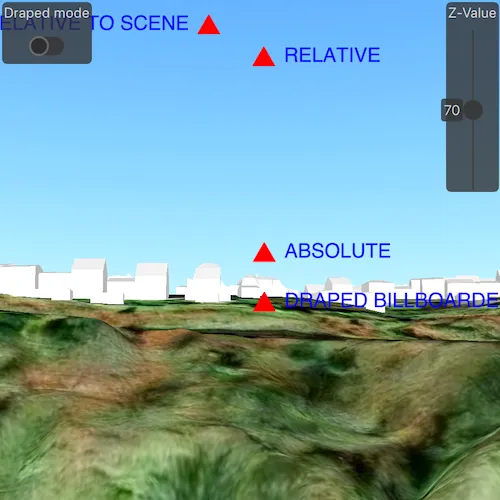

Set surface placement mode

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
// [WriteFile Name=SetSurfacePlacementMode, Category=Scenes]
// [Legal]
// Copyright 2016 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "SetSurfacePlacementMode.h"

// ArcGIS Maps SDK headers
#include "ArcGISSceneLayer.h"
#include "ArcGISTiledElevationSource.h"
#include "Camera.h"
#include "ElevationSourceListModel.h"
#include "Graphic.h"
#include "GraphicListModel.h"
#include "GraphicsOverlay.h"
#include "GraphicsOverlayListModel.h"
#include "LayerListModel.h"
#include "LayerSceneProperties.h"
#include "MapTypes.h"
#include "Point.h"
#include "Scene.h"
#include "SceneQuickView.h"
#include "SceneViewTypes.h"
#include "SimpleMarkerSymbol.h"
#include "SpatialReference.h"
#include "Surface.h"
#include "SymbolTypes.h"
#include "TextSymbol.h"
#include "Viewpoint.h"

using namespace Esri::ArcGISRuntime;

SetSurfacePlacementMode::SetSurfacePlacementMode(QQuickItem* parent /* = nullptr */):
  QQuickItem(parent)
{
}

SetSurfacePlacementMode::~SetSurfacePlacementMode() = default;

void SetSurfacePlacementMode::init()
{
  qmlRegisterType<SceneQuickView>("Esri.Samples", 1, 0, "SceneView");
  qmlRegisterType<SetSurfacePlacementMode>("Esri.Samples", 1, 0, "SetSurfacePlacementModeSample");
}

void SetSurfacePlacementMode::componentComplete()
{
  QQuickItem::componentComplete();

  //! [Create Scene API snippet]
  // Create a scene with the imagery basemap and world elevation surface
  m_sceneView = findChild<SceneQuickView*>("sceneView");
  Scene* scene = new Scene(BasemapStyle::ArcGISImageryStandard, this);
  Surface* surface = new Surface(this);
  surface->elevationSources()->append(new ArcGISTiledElevationSource(QUrl("https://elevation3d.arcgis.com/arcgis/rest/services/WorldElevation3D/Terrain3D/ImageServer"), this));
  scene->setBaseSurface(surface);

  // Create scene layer from the Brest, France scene server.
  ArcGISSceneLayer* sceneLayer = new ArcGISSceneLayer(QUrl("https://tiles.arcgis.com/tiles/P3ePLMYs2RVChkJx/arcgis/rest/services/Buildings_Brest/SceneServer"), this);
  scene->operationalLayers()->append(sceneLayer);
  //! [Create Scene API snippet]

  // set an initial viewpoint
  const Point initialViewPoint(-4.45968, 48.3889, 37.9922);
  const Camera camera(initialViewPoint, 329.91, 96.6632, 0);
  const Viewpoint viewpoint(initialViewPoint, camera);
  scene->setInitialViewpoint(viewpoint);

  // set the scene to the scene view
  m_sceneView->setArcGISScene(scene);

  // add graphics overlays and set surface placement
  addGraphicsOverlays();

  // add graphics
  addGraphics();
}

void SetSurfacePlacementMode::addGraphicsOverlays()
{
  // Graphics overlay with draped billboarded surface placement
  m_drapedBillboardedOverlay = new GraphicsOverlay(this);
  m_drapedBillboardedOverlay->setSceneProperties(LayerSceneProperties(SurfacePlacement::DrapedBillboarded));
  m_sceneView->graphicsOverlays()->append(m_drapedBillboardedOverlay);

  // Graphics overlay with draped flat surface placement
  m_drapedFlatOverlay = new GraphicsOverlay(this);
  m_drapedFlatOverlay->setSceneProperties(LayerSceneProperties(SurfacePlacement::DrapedFlat));
  m_drapedFlatOverlay->setVisible(false);
  m_sceneView->graphicsOverlays()->append(m_drapedFlatOverlay);

  // Graphics overlay with relative surface placement
  m_relativeOverlay = new GraphicsOverlay(this);
  m_relativeOverlay->setSceneProperties(LayerSceneProperties(SurfacePlacement::Relative));
  m_sceneView->graphicsOverlays()->append(m_relativeOverlay);

  // Graphics overlay with relative to scene surface placement
  m_relativeToSceneOverlay = new GraphicsOverlay(this);
  m_relativeToSceneOverlay->setSceneProperties(LayerSceneProperties(SurfacePlacement::RelativeToScene));
  m_sceneView->graphicsOverlays()->append(m_relativeToSceneOverlay);

  // Graphics overlay with absolute surface placement
  m_absoluteOverlay = new GraphicsOverlay(this);
  m_absoluteOverlay->setSceneProperties(LayerSceneProperties(SurfacePlacement::Absolute));
  m_sceneView->graphicsOverlays()->append(m_absoluteOverlay);
}

void SetSurfacePlacementMode::addGraphics()
{
  // create point for the scene related graphic with a z value of 70
  const Point sceneRelatedPoint(-4.4610562, 48.3902727, 70, SpatialReference::wgs84());

  // create point for the surface related graphics with z value of 70
  const Point surfaceRelatedPoint(-4.4609257, 48.3903965 , 70, SpatialReference::wgs84());

  // create simple marker symbol
  SimpleMarkerSymbol* simpleMarkerSymbol = new SimpleMarkerSymbol(SimpleMarkerSymbolStyle::Triangle, QColor("red"), 20, this);

  // create text symbols
  TextSymbol* drapedBillboardedText = new TextSymbol("DRAPED BILLBOARDED", QColor("blue"), 20, HorizontalAlignment::Left, VerticalAlignment::Middle, this);
  drapedBillboardedText->setOffsetX(20);
  TextSymbol* drapedFlatText = new TextSymbol("DRAPED FLAT", QColor("blue"), 20, HorizontalAlignment::Left, VerticalAlignment::Middle, this);
  drapedFlatText->setOffsetX(20);
  TextSymbol* relativeText = new TextSymbol("RELATIVE", QColor("blue"), 20, HorizontalAlignment::Left, VerticalAlignment::Middle, this);
  relativeText->setOffsetX(20);
  TextSymbol* relativeToSceneText = new TextSymbol("RELATIVE TO SCENE", QColor("blue"), 20, HorizontalAlignment::Right, VerticalAlignment::Middle, this);
  relativeToSceneText->setOffsetX(-20);
  TextSymbol* absoluteText = new TextSymbol("ABSOLUTE", QColor("blue"), 20, HorizontalAlignment::Left, VerticalAlignment::Middle, this);
  absoluteText->setOffsetX(20);

  // add graphics to each overlay
  // Graphics will be draped on the surface of the scene and will always face the camera.
  m_drapedBillboardedOverlay->graphics()->append(new Graphic(surfaceRelatedPoint, simpleMarkerSymbol));
  m_drapedBillboardedOverlay->graphics()->append(new Graphic(surfaceRelatedPoint, drapedBillboardedText));

  // Graphics will be draped on the surface of the scene
  m_drapedFlatOverlay->graphics()->append(new Graphic(surfaceRelatedPoint, simpleMarkerSymbol));
  m_drapedFlatOverlay->graphics()->append(new Graphic(surfaceRelatedPoint, drapedFlatText));

  // Graphics will be placed at z value relative to the surface
  m_relativeOverlay->graphics()->append(new Graphic(surfaceRelatedPoint, simpleMarkerSymbol));
  m_relativeOverlay->graphics()->append(new Graphic(surfaceRelatedPoint, relativeText));

  // Graphics will be placed at z value relative to the scene
  m_relativeToSceneOverlay->graphics()->append(new Graphic(sceneRelatedPoint, simpleMarkerSymbol));
  m_relativeToSceneOverlay->graphics()->append(new Graphic(sceneRelatedPoint, relativeToSceneText));

  // Graphics will be placed at absolute z value
  m_absoluteOverlay->graphics()->append(new Graphic(surfaceRelatedPoint, simpleMarkerSymbol));
  m_absoluteOverlay->graphics()->append(new Graphic(surfaceRelatedPoint, absoluteText));
}

void SetSurfacePlacementMode::changeDrapedVisibility()
{
  m_drapedFlatOverlay->setVisible(!m_drapedFlatOverlay->isVisible());
  m_drapedBillboardedOverlay->setVisible(!m_drapedBillboardedOverlay->isVisible());
}

void SetSurfacePlacementMode::changeZValue(double zValue)
{
  for (GraphicsOverlay* overlay : *m_sceneView->graphicsOverlays())
  {
    for (Graphic* graphic : *overlay->graphics())
    {
      // create new graphic with the same existing information but a new Z-value
      const Point graphicPoint{graphic->geometry()};
      const Point point{graphicPoint.x(), graphicPoint.y(), zValue, graphicPoint.spatialReference()};
      graphic->setGeometry(point);
    }
  }
}
